True Mfg. - General Foodservice Back Bar Coolers - TBB24-72-3G-Z1-SFT-B-1

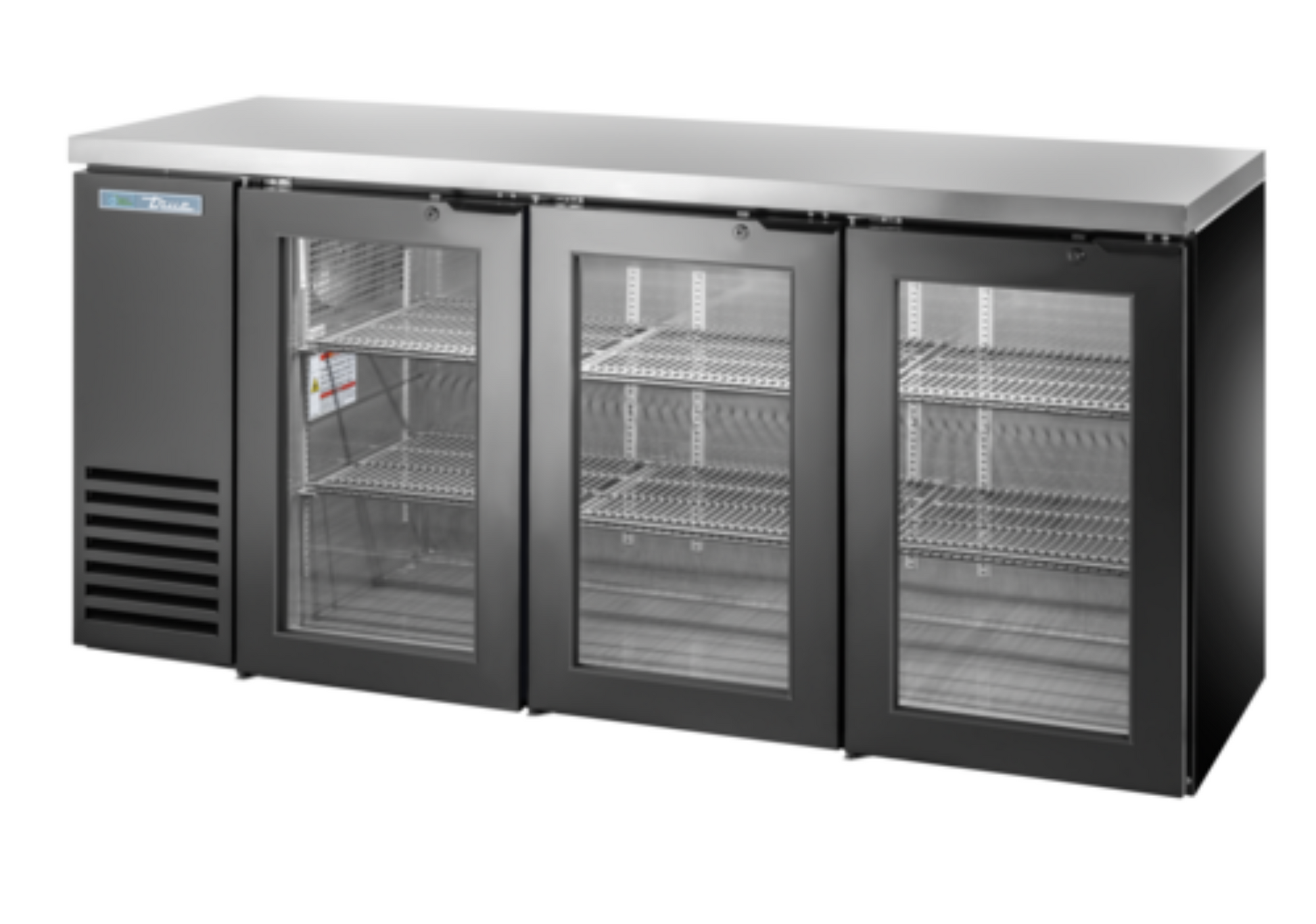

Back Bar Cooler, two-section, 72-1/8"W, (125) 6-Packs 12oz cans or (3) 1/2 barrels, (6) wire shelves, condensing unit on left, (3) glass hinged doors with locks, LED interior lights, stainless steel top, galvanized interior with stainless steel floor, black powder coated cold-rolled steel exterior, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 3.2 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA
Drawings
Documents
Specifications
| Manufacturer |
True Mfg. – General Foodservice |
| Model Type |
Back Bar Cooler, Three-Section |
| Certifications |
cULus, UL EPH Classified, Made in USA |
| Exterior Finish |
Black powder-coated cold-rolled steel |
| Top Finish |
Stainless steel top |
| Interior Finish |
Galvanized interior with stainless steel floor |
| Door Quantity |
3 doors |
| Door Type |
Glass doors |
| Door Swing |
Swing doors |
| Door Features |
Hinged doors with locks |
| Refrigeration Type |
Self-contained, side-mounted (condensing unit on left) |
| Refrigerant |
R290 Hydrocarbon refrigerant |
| Compressor HP |
1/4 HP |
| Capacity |
(125) 6-packs of 12oz cans or (3) 1/2 barrels |
| Shelving |
6 adjustable wire shelves |
| Interior Lighting |
LED interior lights |
| Electrical Requirements |
115v / 60Hz / 1-phase |
| Amperage |
3.2 amps |
| Plug Type |
NEMA 5-15P |
| Height |
34.37 in |
| Width |
72.12 in |
| Depth |
24.88 in |
| Shipping Weight |
415 lbs |
| Width Range (Side-Side) |
59 – 72 inches |
| Depth Range (Front-Back) |
22 – 26 inches |
What our Experts Think
-
Spacious Capacity: Accommodates up to 125 six-packs of 12 oz cans or three half-barrel kegs, making it ideal for high-volume establishments.
-
Efficient Cooling: Maintains a consistent 35°F (1.7°C) using R290 hydrocarbon refrigerant and a forced air system, ensuring your products stay cold and fresh.
-
Energy-Saving Features: Equipped with True’s self-cleaning RCU technology, which reduces energy consumption and eliminates the need to clean the condenser coil.
-
Durable Construction: Features a black powder-coated cold-rolled steel exterior with a stainless steel countertop, ensuring longevity and easy maintenance.
-
Enhanced Visibility: Three low-emissivity (Low-E) double-pane thermal glass doors with black powder-coated frames and LED interior lighting provide clear visibility and energy efficiency.
-
Secure Storage: Each door is fitted with a flat top black door handle and a door lock, providing added security for your inventory.
-
Easy Access and Organization: Includes six adjustable, gray PVC-coated wire shelves, allowing for flexible storage options and easy access to products.
Q&A
Q: What is the True TBB24-72-3G-Z1-SFT-B-1 Back Bar Cooler used for?
A: This high-capacity back bar cooler is designed for commercial bars and restaurants to store and display beverages while keeping them cold and accessible.
Q: What is the storage capacity?
A: It can hold up to 120 six-packs of 12 oz. cans or three 1/2 barrel kegs, with adjustable shelves to customize internal layout..
Q: Is this model energy-efficient?
A: Yes, it features energy-efficient refrigeration and natural R290 hydrocarbon refrigerant, helping reduce utility costs and environmental impact.
Q: Who should choose this model?
A: It’s perfect for bars, clubs, and restaurants looking for a reliable, high-capacity beverage cooler with clear product visibility and commercial durability.
Maintenance Tips
-
Self-Cleaning Condenser: Equipped with True’s self-cleaning RCU technology, reducing the need for manual condenser coil cleaning.
-
Temperature Monitoring: Maintains an internal temperature of 35°F (1.7°C), ensuring optimal beverage storage.
-
Regular Inspections: Check door seals and locks periodically to ensure proper sealing and security.
-
Interior Maintenance: Clean the stainless steel interior floor and galvanized steel walls regularly to prevent buildup and maintain hygiene.
-
Ventilation: Ensure the unit is installed with at least a 1-inch clearance on all sides for proper airflow.
