TL3-R Intrinsically Safe Portable Stem Thermometer for Laboratory - TL3R-08
TL3-R
The Intrinsically Safe TL3-R is ThermoProbe’s highest accuracy hand-held reference Thermometer. The TL3-R has been certified to the latest global standards for hazardous locations (Ex).
This item is built to order and typically ships 2 weeks ARO.
Available with Bluetooth connectivity, the TL3-R Platinum Resistance Thermometer (PRT) can be used in applications where extreme accuracy is required. It is powered with 2-AAA batteries providing excellent battery life. A large display and easy to hold design makes the TL3-R convenient for use as a reference in the lab or field. The rugged, weather resistant case and buttons are well suited for use in industrial applications, even with gloves. The TL3-R precision circuitry provides excellent temperature accuracy, battery life and Bluetooth monitoring.
Versatile software functions allow easy selection of Celsius or Fahrenheit units, Display resolution or Bluetooth activity. Minimum, maximum and average temperatures are automatically stored to memory for later reference. Low battery display, and failure mode indications protect the user from false data. Encoded Calibration is unaffected by temperature, vibration, or battery removal.
Through numerous distributors equipped for calibration and repair, the TL3-R can be supported in many locations throughout the world.

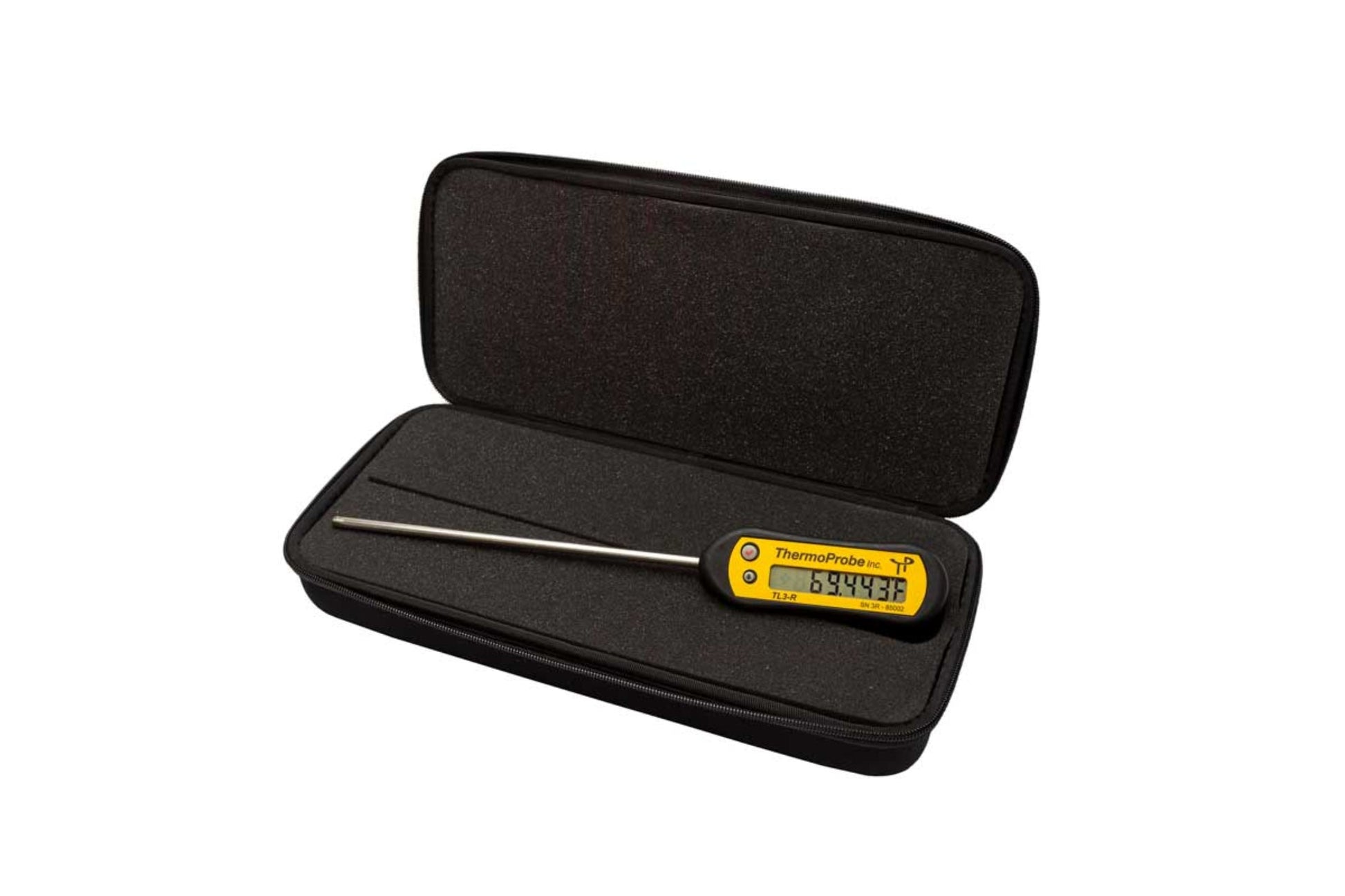

A one-year warranty, protective case and NIST traceable 5-point calibration report are included.
Specifications
| Interface Features |
0.5" (12.7mm) character LCD
Switchable units °C or °F
Resolution 0.01 or 0.001
Bluetooth Wireless Transmitter
Low Battery & Fault indication
Zero Correction Mode
Continuous operation or Auto Off after 20 minutes.
Stores and displays Average, Lowest & Highest readings.
Arrows indicating increasing/decreasing temperature.
Recommended ambient temperature range: 32°F to 112°F
(0°C to 44°C) |
| Construction |
Weather Resistant Enclosure
Stainless steel RTD temperature sensor
Static-dissipative plastic housing with a durable
polyester graphics window.
Nominal body dimensions: 5 x 1.75 x 1.15"
(13 x 4.4 x 2.9cm) |
| Weight |
5.5oz (156 grams)
– with 8" sensor |
| Temperature |
Resolution 0.001 Degrees
Calibrated Accuracy:
±0.05°F from -30 to 320°F
±0.03°C from -36 to 160°C
Range: -40°F to 400°F (-40°C to 204°C)
NIST Traceable Report of Test
Standard 5 point calibration: -4°F(-20°C), 32°F(0°C) , 120°F(49°C),
199°F(93°C) & 300°F(149°C) |
| Temperature Response Characteristics |
Temperature time constant:
10 seconds in circulated water bath
(time response to 63.2% of temp. step change) |
| Sensor |
Stainless steel RTD temperature sensor
– 100Ω Precision wire wound Platinum RTD
– Standard 8"(20cm) or 12"(30cm) lengths
– Standard 0.25"(6.35mm) diameter
– Recommended Minimum Immersion Depth: 4" (10.2cm) |
| Batteries |
2 AAA Alkaline
Over 450 hours service life at 70°F (21°C)
Ambient temperature operating range -4°F to 130°F
(-20°C to 54°C)
Note: Battery may not provide adequate power if used
outside operating range. |
| Notes |
Specifications subject to change, See data sheet for latest information.
Custom ranges, configurations and sensor lengths available upon request. |
What Our Experts Think
-
Intrinsically Safe – The TL3-R is designed for use in hazardous environments, ensuring safety while maintaining precise readings.
-
Accurate & Reliable – Provides highly accurate temperature measurements for laboratory applications.
-
Durable & Lightweight – Compact design for easy portability without sacrificing sturdiness, ideal for on-the-go use.
-
Fast Response Time – Quickly adjusts to temperature changes, improving efficiency in laboratory processes.
-
User-Friendly – Simple to operate, with intuitive controls for effortless measurement in various lab settings.
Q&A
Q: What is the TL3-R Intrinsically Safe Portable Stem Thermometer?
A: A portable, intrinsically safe stem thermometer designed for accurate temperature measurement in laboratory and hazardous environments.
Q: What makes the TL3-R intrinsically safe?
A: It is built with safety features to prevent ignition in explosive or volatile environments, ensuring reliable use in hazardous conditions.
Q: Is the TL3-R-08 model suitable for laboratory use?
A: Yes, it is ideal for precise temperature measurements in laboratory settings, including chemical, pharmaceutical, and research applications.
Q: How portable is the TL3-R-08?
A: It is lightweight and easy to carry, making it convenient for mobile or field use in various laboratory tasks.
Q: What temperature range does the TL3-R-08 cover?
A: The TL3-R-08 offers a wide temperature range, providing accurate readings for diverse applications.
Q: How do I maintain the TL3-R-08 thermometer?
A: Keep the thermometer clean, store it in a safe, dry place, and perform regular calibrations to maintain its accuracy.
Maintenance Tips
-
Regular Cleaning: Clean the stem with a soft cloth after use to remove contaminants and moisture.
-
Inspect for Damage: Periodically check the thermometer for cracks or damage, particularly on the stem and casing.
-
Calibrate Regularly: Perform routine calibration to ensure accurate temperature readings.
-
Avoid Chemical Exposure: Keep the thermometer away from harsh chemicals that could damage the sensor or casing.
-
Proper Storage: Store in a safe, dry place when not in use to prevent physical damage and ensure longevity.
