Pioneer Multi Zone 18,000 BTU Ceiling Cassette Air Handler - CB018GMFILCFHD-25

Pioneer Multi Zone 18,000 BTU Ceiling Cassette Air Handler - CB018GMFILCFHD-25

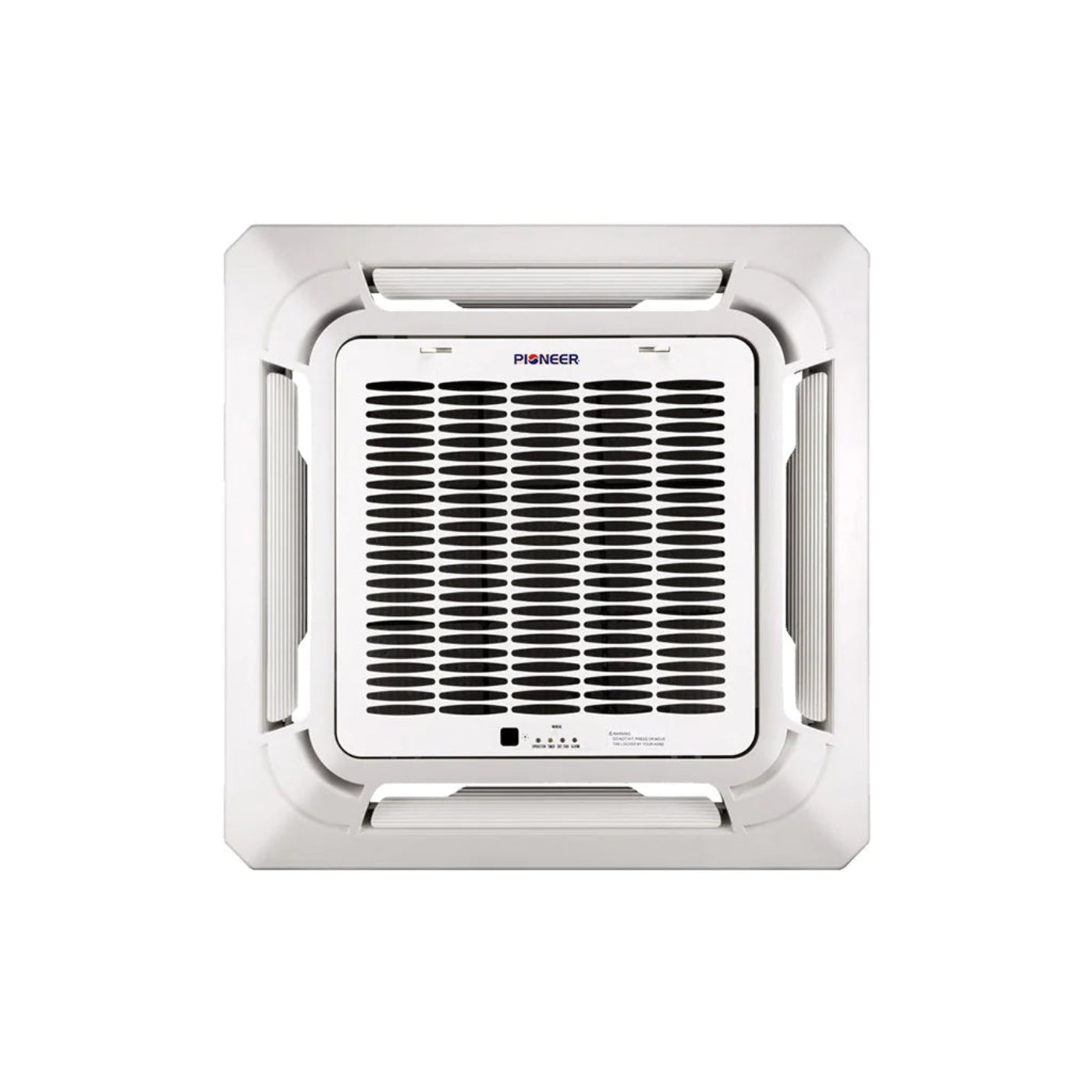

Multi Zone Ceiling Cassette Type Split Air Conditioning and Heating System (Indoor Section Only). Variable Speed DC Inverter Operation Mode: Cooling and Heating. Capacity: 18,000 BTU/Hr. (1.5 Ton). Total capacity of the matched indoor units may exceed the available outdoor unit capacity by up to 35% Efficiency Rating: 22 S.E.E.R. Electrical Specification: 208-230 VAC, 1 Phase, 60 Hertz.

IMPORTANT

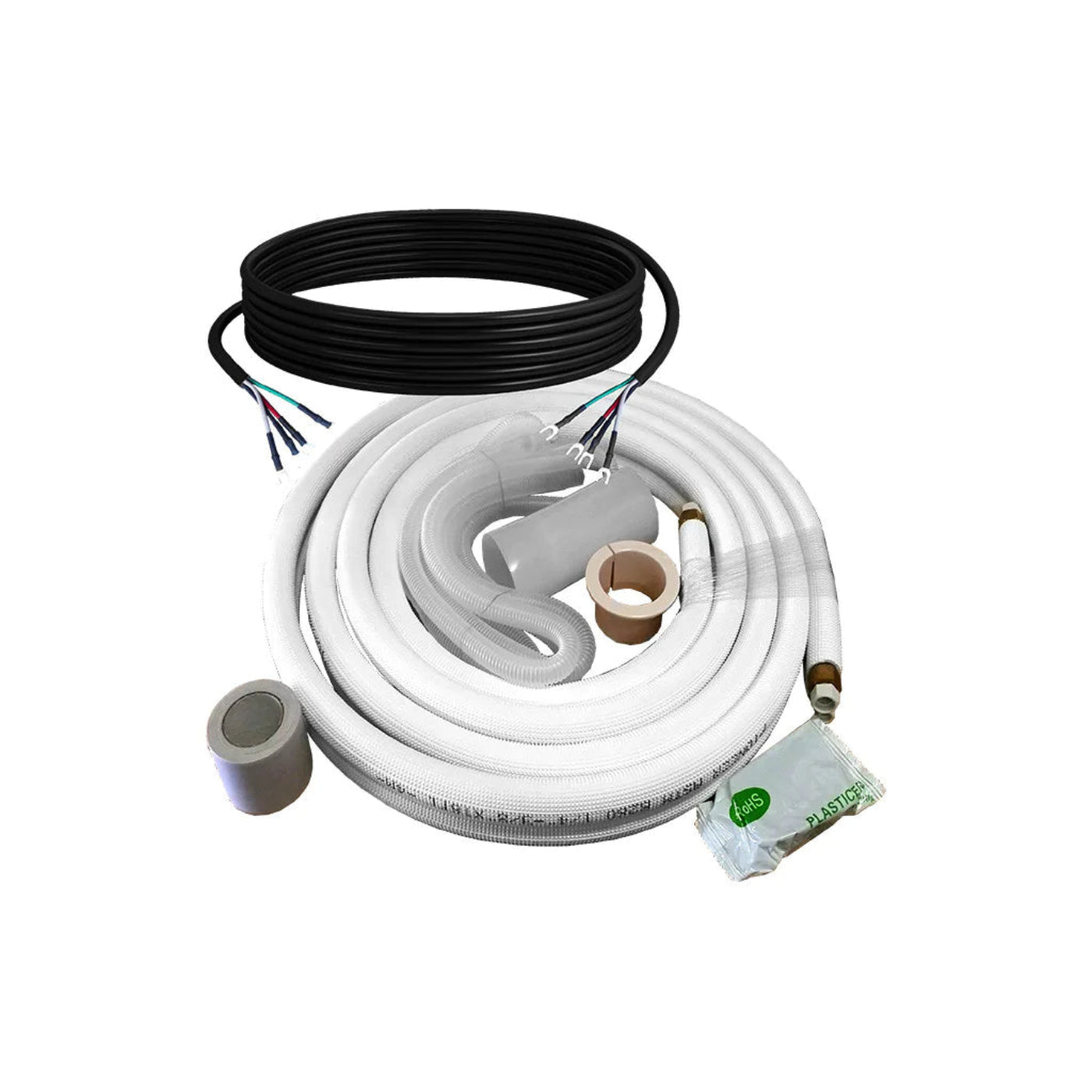

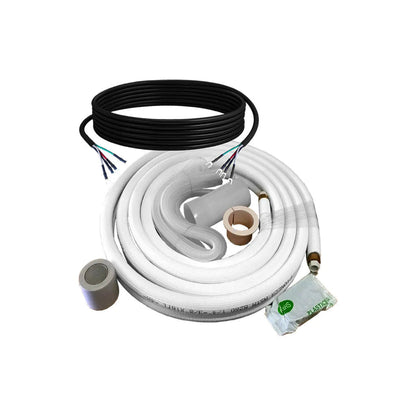

The installation kit is: 25 ft. copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.

Compatible Outdoor Units

Matching outdoor units need to be selected and purchased separately. To purchase a multi split system, first determine the outdoor unit required among the outdoor units we offer as follows:

• Triple Zone: YN030GMFI22M3D
• Quad Zone: YN040GMFI22M4D
• Quint Zone: YN050GMFI22M5D

Notes

• Total capacity of all indoor units attached should be within the Min. and Max Loading range of the outdoor unit selected.
• Not all circuits available on an outdoor units need to be utilized entirely. Some may be kept sealed without an attached indoor unit.
• Please call us or use the Matching Chart document in the Manuals & Downloads tab to help you select the right grouping of indoor units.

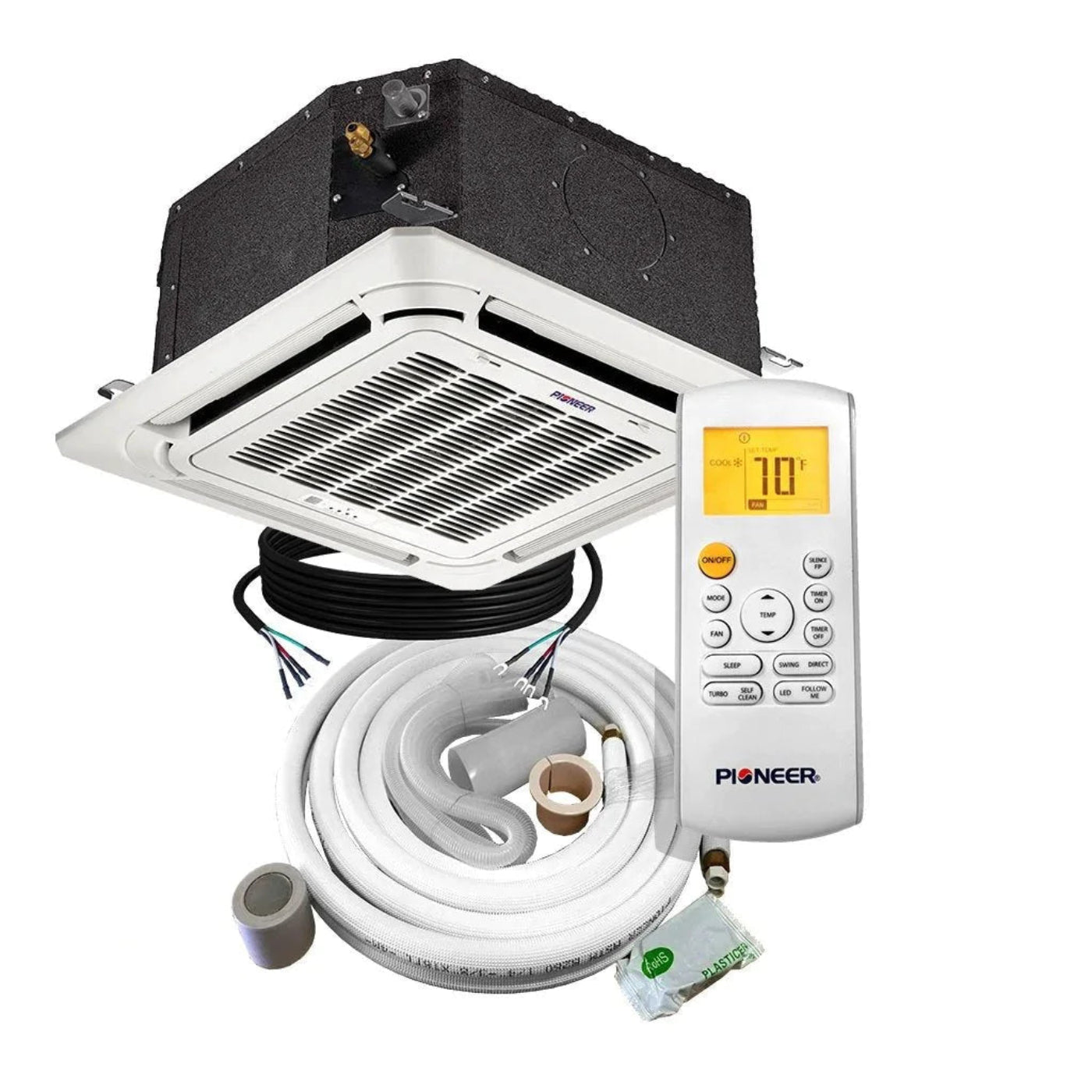

What's Includes

• Indoor Unit

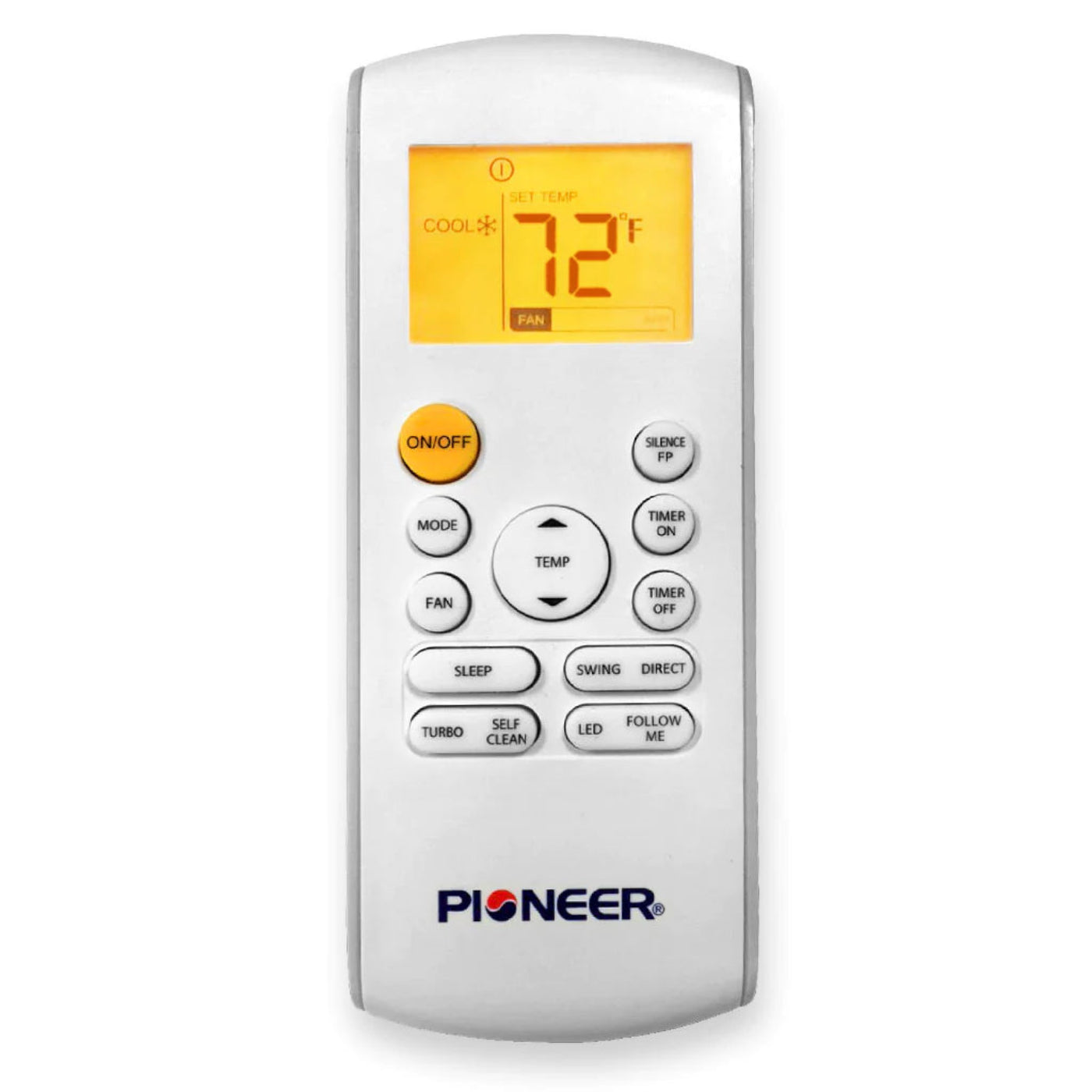

• Wireless Remote Control
• 25 Ft. Installation Kit
• Flare Connection Leak Guard Sealer
• Manufacturer Warranty

PRODUCT SPECIFICATIONS

• Matching Table
• Specification Table

What Our Experts Think

• 18,000 BTU Cooling & Heating Power: This ceiling cassette air handler provides 18,000 BTU of cooling and heating power, making it ideal for larger spaces or rooms with high cooling and heating needs. It offers powerful performance for multi-zone setups, providing comfort throughout the year.

• Multi-Zone Capability: Designed to work with multi-zone systems, this air handler can efficiently service multiple rooms from a single outdoor unit. It’s perfect for homes or commercial spaces with multiple zones, allowing for independent temperature control in each room.

• Ceiling Cassette Design: The sleek ceiling cassette design allows for discreet, unobtrusive installation. This air handler is designed to be installed in the ceiling, providing a clean, minimal look while distributing airflow evenly throughout the room. It’s an ideal solution for rooms with limited wall space or those where a wall-mounted system is not ideal.

• Inverter Technology: Equipped with advanced inverter technology, this air handler adjusts its compressor speed based on the cooling or heating demand. This leads to more precise temperature control, improved energy efficiency, and reduced energy consumption.

• Quiet Operation: The ceiling cassette design ensures minimal noise while operating, providing a quiet and comfortable environment. This makes it ideal for bedrooms, offices, or spaces where noise could be a concern.

• Flexible Installation: As part of a multi-zone system, the ceiling cassette air handler can be installed in various configurations. It offers flexible placement options, allowing you to strategically distribute cool or warm air across different parts of the space.

• User-Friendly Controls: The Pioneer multi-zone system comes with a remote control for easy temperature adjustments, as well as a programmable timer. This allows you to set the system to operate based on your schedule, adding convenience and further energy savings.

• High SEER Rating: The system boasts a high SEER (Seasonal Energy Efficiency Ratio) rating, ensuring that you get efficient cooling and heating without high energy bills. It helps reduce operational costs while maintaining consistent comfort throughout the year.

• Advanced Filtration: This unit includes advanced filtration that captures dust, pollen, and other allergens, contributing to improved indoor air quality and making it a healthier option for your home or workplace.

• Compatibility: This air handler is compatible with Pioneer multi-zone systems, ensuring seamless integration with other Pioneer units for a complete and efficient HVAC solution. Whether you're cooling a small room or an entire floor, it provides reliable and consistent performance.

Q&A

Q: What is the Pioneer Multi Zone 18,000 BTU Ceiling Cassette Air Handler (CB018GMFILCFHD-25)?
A: The Pioneer Multi Zone 18,000 BTU Ceiling Cassette Air Handler is a high-performance air handler designed for multi-zone mini-split systems. It is installed in the ceiling to provide a sleek, discreet, and efficient heating and cooling solution for your space. With an 18,000 BTU capacity, this air handler is ideal for cooling and heating larger areas or multiple rooms, delivering optimal comfort in a hidden, space-saving design.

Q: What are the benefits of a ceiling cassette air handler?
A: Ceiling cassette air handlers are designed to blend seamlessly into your room’s ceiling, providing an aesthetic, unobtrusive cooling and heating solution. This allows for maximum floor and wall space while ensuring even air distribution throughout the room. They are ideal for spaces like offices, living rooms, or commercial areas that need consistent temperature control without the visual clutter of wall-mounted units.

Q: Is this unit compatible with multi-zone systems?
A: Yes, the Pioneer Multi Zone 18,000 BTU Ceiling Cassette Air Handler is designed to work with Pioneer multi-zone systems, allowing you to connect multiple indoor units to a single outdoor unit. This is ideal for homes or businesses that need different rooms or areas to be independently controlled.

Q: How does this ceiling cassette air handler ensure efficient operation?
A: This air handler features advanced technology to ensure quiet, efficient, and uniform airflow. The unit provides powerful cooling and heating while maintaining energy efficiency, ensuring lower electricity bills over time. Additionally, the even distribution of air minimizes hot or cold spots within the room.

Q: Is installation of the Pioneer Ceiling Cassette Air Handler complex?
A: The ceiling cassette air handler requires professional installation due to its in-ceiling placement and the integration with a multi-zone mini-split system. It’s essential to have a licensed HVAC technician install the unit to ensure proper setup and optimal performance.

Q: Can this unit be used for both cooling and heating?
A: Yes, the Pioneer Multi Zone Ceiling Cassette Air Handler operates as part of a heat pump system, meaning it can cool during the warmer months and heat during the cooler months. This all-in-one solution ensures year-round comfort.

Q: What size space is the 18,000 BTU capacity suitable for?
A: The 18,000 BTU capacity is ideal for larger rooms or multiple rooms with a combined area of up to 750 square feet, depending on factors like insulation and ceiling height. It provides strong, consistent airflow to maintain comfortable temperatures in these spaces.

Maintenance Tips

• Clean or Replace Air Filters: Regularly clean or replace the air filters every 1-3 months, depending on usage and air quality. Dirty filters can block airflow, reducing efficiency and causing the system to work harder. Replace filters as needed or clean them using a vacuum or mild detergent.
• Inspect and Clean Coils: Clean the evaporator and condenser coils every 6-12 months to prevent dirt buildup, which can reduce the system’s efficiency. Use a soft brush or coil cleaner to remove debris. Cleaning the coils ensures proper heat exchange and airflow, optimizing performance.
• Check for Condensate Drain Blockages: Make sure the condensate drain is clear and unobstructed. Clogs in the drain can cause water buildup, leading to leaks or mold growth. Periodically inspect the drain and use a wet/dry vacuum to clear any debris or flush the line with warm water.
• Inspect Refrigerant Lines and Insulation: Check the refrigerant lines for any visible signs of damage or leaks. Ensure the insulation around the lines is intact to prevent energy loss and condensation buildup. Replace any damaged insulation to maintain system efficiency.
• Clean the Air Handler's Intake Grille: Dust and debris can accumulate on the intake grille of the ceiling cassette unit, which may impact airflow. Clean the grille carefully to prevent dust buildup and ensure proper air circulation.
• Ensure Proper Ventilation: Ensure that the area around the ceiling cassette air handler is unobstructed and that there is adequate airflow. This will help the system maintain efficiency and prevent strain on the unit.
• Check System Performance: Regularly monitor the system’s performance. If you notice reduced cooling/heating, unusual noises, or inconsistent temperatures, schedule a professional inspection to address potential issues early.
• Schedule Annual Professional Maintenance: Schedule an annual maintenance service with a licensed technician. A professional will check refrigerant levels, inspect the entire system for any potential issues, clean the internal components, and ensure the air handler is running efficiently.
• Ensure Proper Airflow Distribution: Verify that the cassette unit is distributing air evenly throughout the space. Obstructions or misalignment can cause uneven cooling or heating. Adjust the unit's settings or ensure proper installation to maintain optimal performance.
