Pioneer Multi Zone 9,000 BTU Ceiling Cassette Air Handler - CB009GMFILCFHD-25
Multi Zone Ceiling Cassette Type Split Air Conditioning and Heating System (Indoor Section Only). Variable Speed DC Inverter Operation Mode: Cooling and Heating. Capacity: 9,000 BTU/Hr. (3/4 Ton). Total capacity of the matched indoor units may exceed the available outdoor unit capacity by up to 35% Efficiency Rating: 22 S.E.E.R. Electrical Specification: 208-230 VAC, 1 Phase, 60 Hertz.ย
IMPORTANT

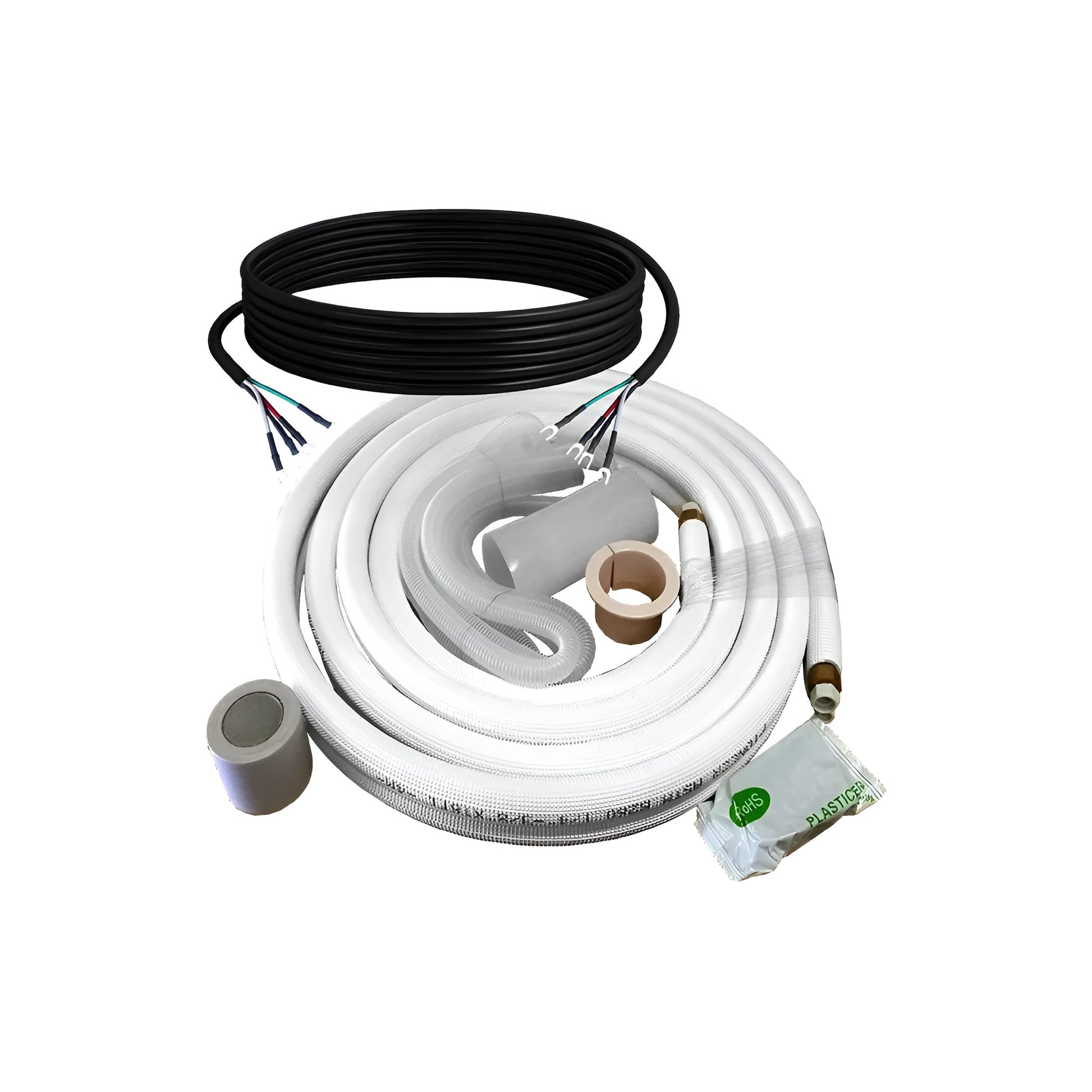

The installation kit is: 25 ft. copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.
Compatible Outdoor Units
Matching outdoor units need to be selected and purchased separately. To purchase a multi split system, first determine the outdoor unit required we offer as follows:
-
Dual Zone:ย YN020GMFI22M2D
-
Triple Zone:ย YN030GMFI22M3D
-
Quad Zone:ย YN040GMFI22M4D
-
Quint Zone:ย YN050GMFI22M5D
Notes
- Total capacity of all indoor units attached should be within the Min. and Max Loading range of the outdoor unit selected.
- Not all circuits available on an outdoor units need to be utilized entirely. Some may be kept sealed without an attached indoor unit.
- Please call us or use the Matching Chart document in the Manuals & Downloads tab to help you select the right grouping of indoor units.

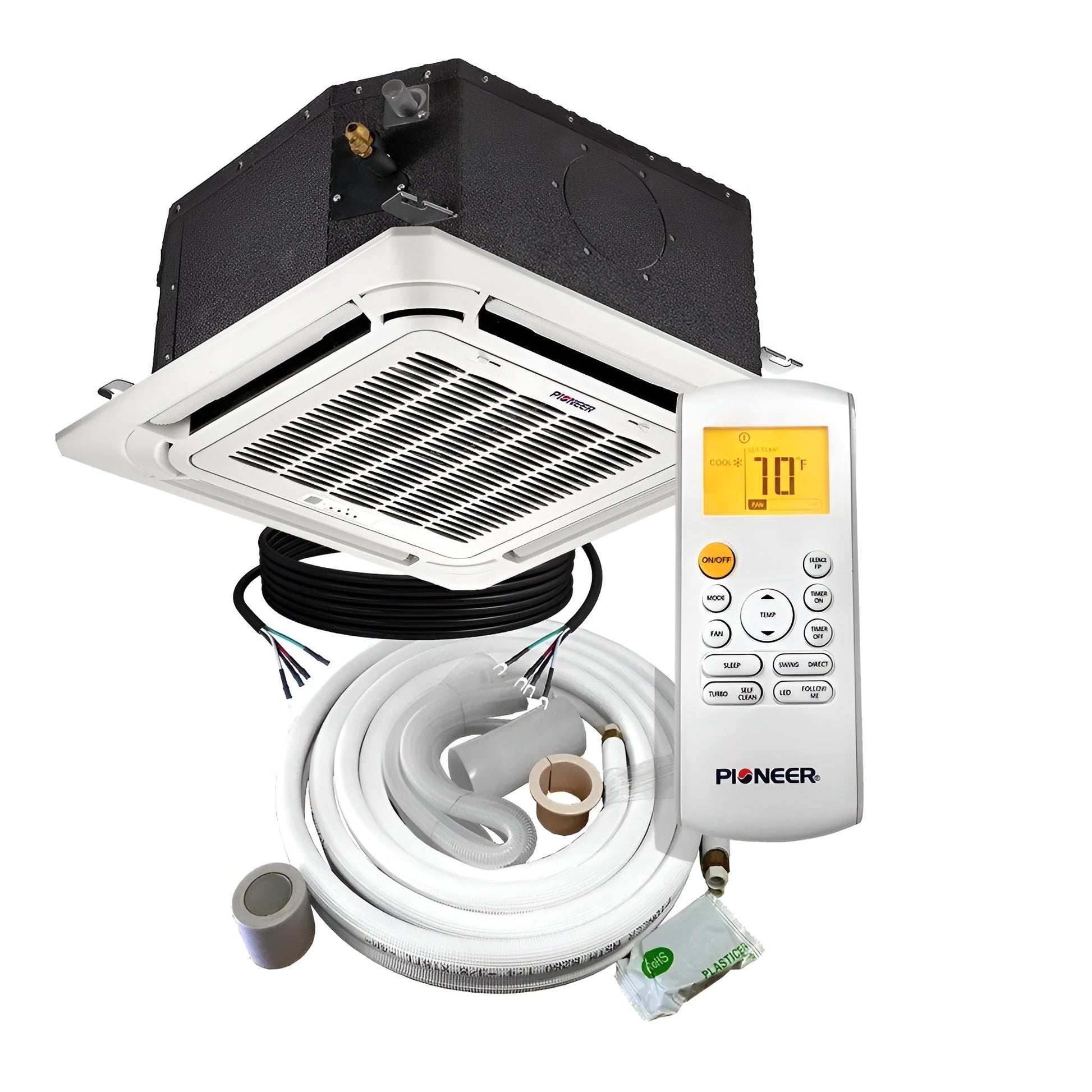

What's Included
- Indoor Unit

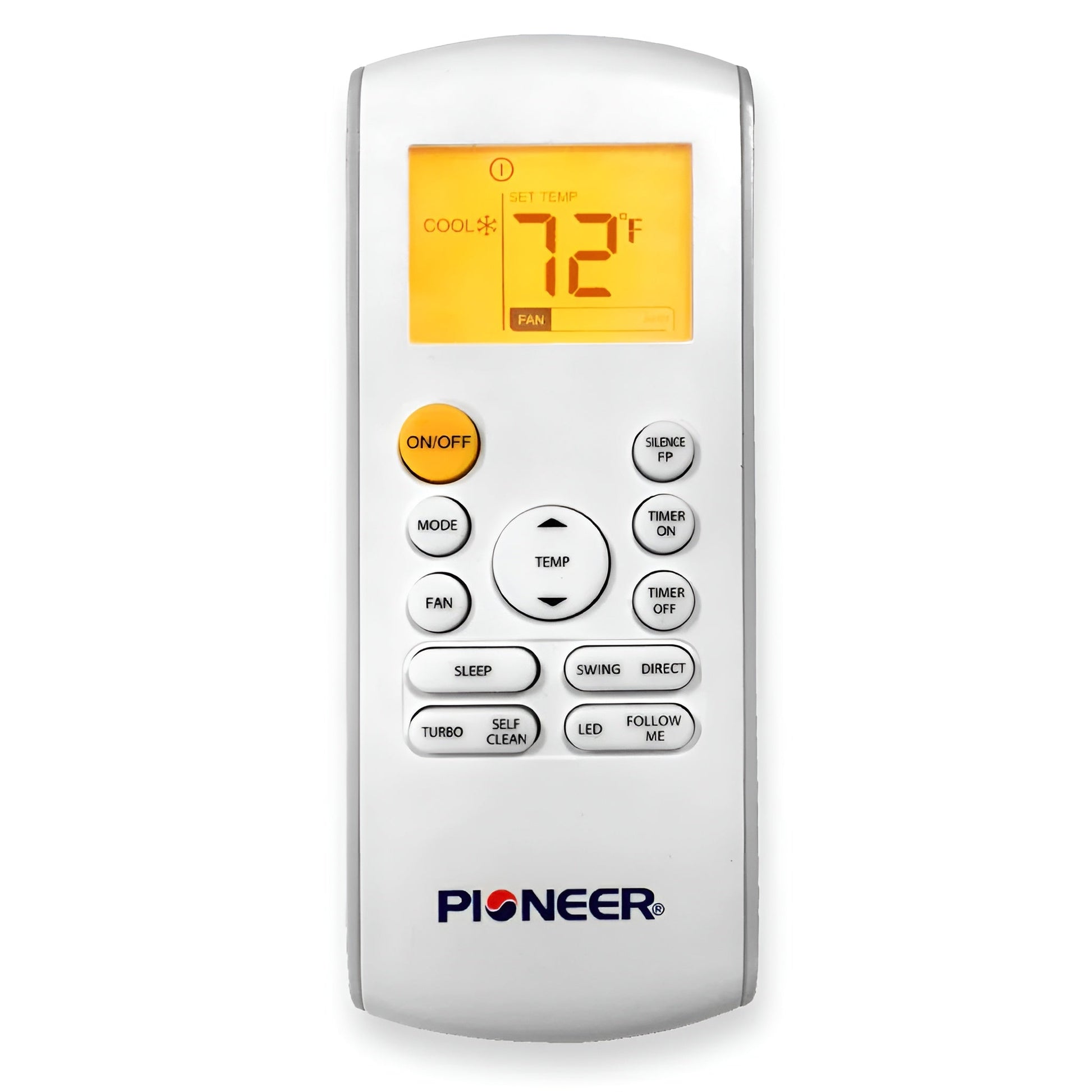

- Wireless Remote Control
- 25 Ft. Installation Kit
- Flare Connection Leak Guard Sealer
- Manufacturer Warranty
Specifications
| Product Dimensions |
22 1/2"W x 22 1/2"D x 10 1/4"H |
| Power Supply |
208-230V, 60Hz, 1Ph |
| Cooling Capacity |
9,000 BTU/h |
| Cooling Seer |
20.0 |
| Heating Capacity |
10,000 BTU/h |
| Heating HSPF |
10.5 |
| Suitable Area |
250-350 Sq.F |
| Air Flow (Hi/Med/Lo) |
374 / 301 / 257 CFM |
| Sound Level (Hi/Lo) |
41 / 37 / 33 dB(A) |
| Weight |
32 lbs |
| Warranty |
5 year parts limited warranty |
What Our Experts Think
-
9,000 BTU Capacity: Perfect for small to medium-sized rooms or zones, offering efficient and consistent cooling or heating.
-
Multi-Zone Capability: Ideal for homes or offices with multiple rooms, providing independent climate control for each zone.
-

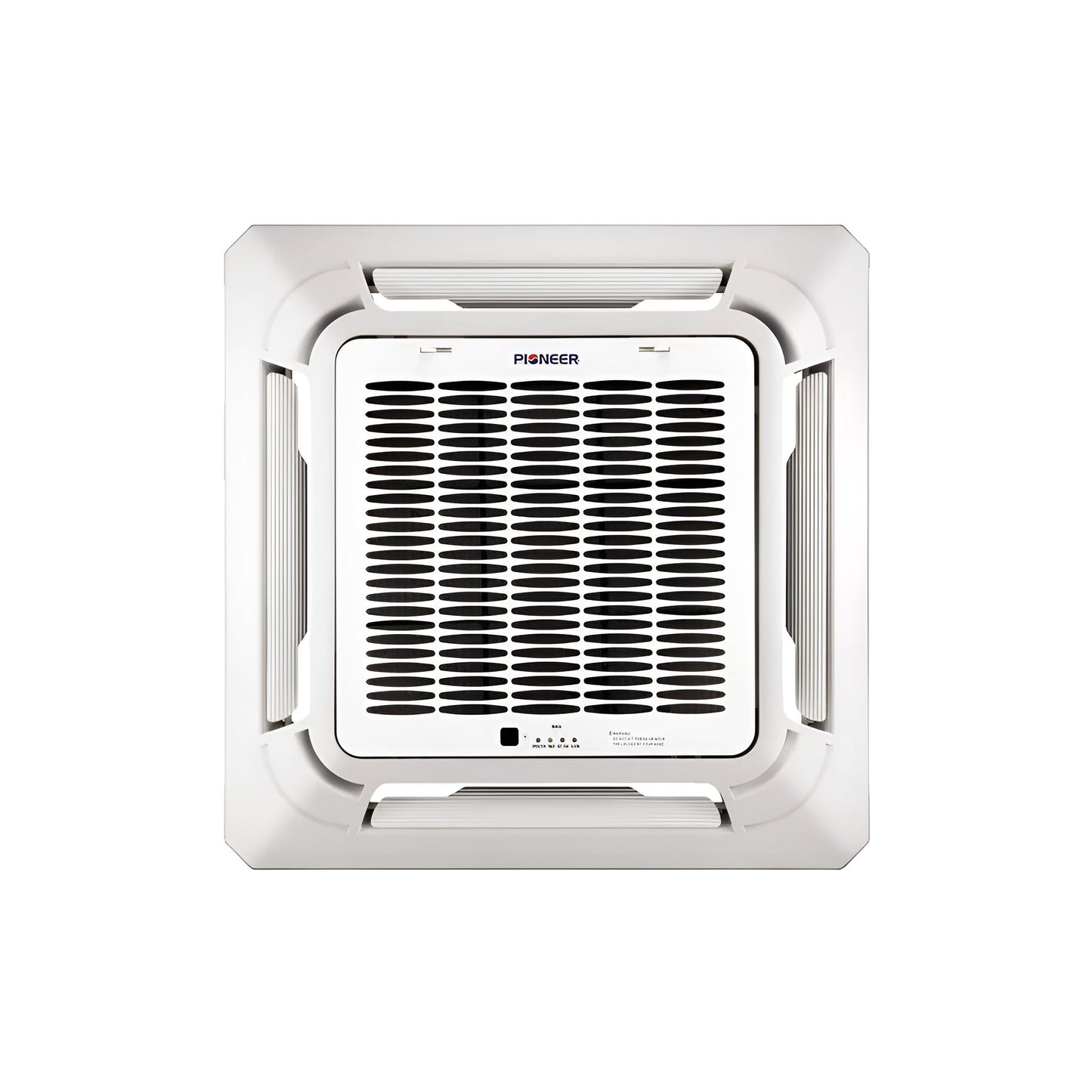

Ceiling Cassette Design: A sleek, discreet installation that integrates into the ceiling for a minimalist look and efficient air distribution.
-
Quiet Operation: Designed for minimal noise, maintaining a peaceful and comfortable environment without distractions.
-
Energy-Efficient: With advanced technology, it reduces energy consumption while ensuring reliable performance.
-
Easy Installation: Comes with a 25 ft. pre-charged refrigerant line set for hassle-free installation.
-
Durable & Reliable: Built to last with high-quality materials and low-maintenance requirements.
Q&A
Q: What is the cooling capacity of the Pioneer Multi Zone 9,000 BTU Ceiling Cassette Air Handler?
A: This unit provides 9,000 BTU of cooling power, making it suitable for smaller rooms or zones in multi-zone applications.
Q: What is the installation type for the Pioneer Multi Zone Ceiling Cassette Air Handler?
A: It is designed for ceiling-mounted installation, providing a discreet and space-saving solution for air distribution.
Q: What are the key features of the Pioneer Multi Zone 9,000 BTU Ceiling Cassette Air Handler?
A: This air handler offers multi-zone compatibility, advanced filtration, quiet operation, and efficient cooling or heating.
Q: Does the Pioneer Ceiling Cassette Air Handler provide both cooling and heating?
A: Yes, it is compatible with heat pump systems, providing both cooling in the summer and heating in the winter.
Q: Is the Pioneer Multi Zone Ceiling Cassette Air Handler easy to install?
A: Yes, it comes with a 25 ft. lineset and is designed for simple ceiling installation with flexibility in placement and air distribution.
Maintenance Tips
-
Clean or Replace Filters: Check and clean the filters every 2-4 weeks. Replace filters annually or when they become excessively dirty to maintain optimal airflow.
-
Clean the Coils: Clean the evaporator coils at least once a year to prevent dust and debris buildup that can reduce system efficiency.
-
Inspect the Drain Line: Regularly check the condensate drain line to ensure it is clear of debris and functioning properly to avoid clogs and water damage.
-
Ensure Proper Airflow: Make sure that the air intake and discharge vents are clear of obstructions to allow for efficient airflow.
-
Check Refrigerant Levels: Ensure refrigerant levels are adequate for optimal cooling and heating. If performance is low, consult a technician for inspection and potential recharging.
-
Professional Annual Maintenance: Schedule an annual service with a technician to inspect refrigerant levels, clean components, and check for any potential issues with the system.
