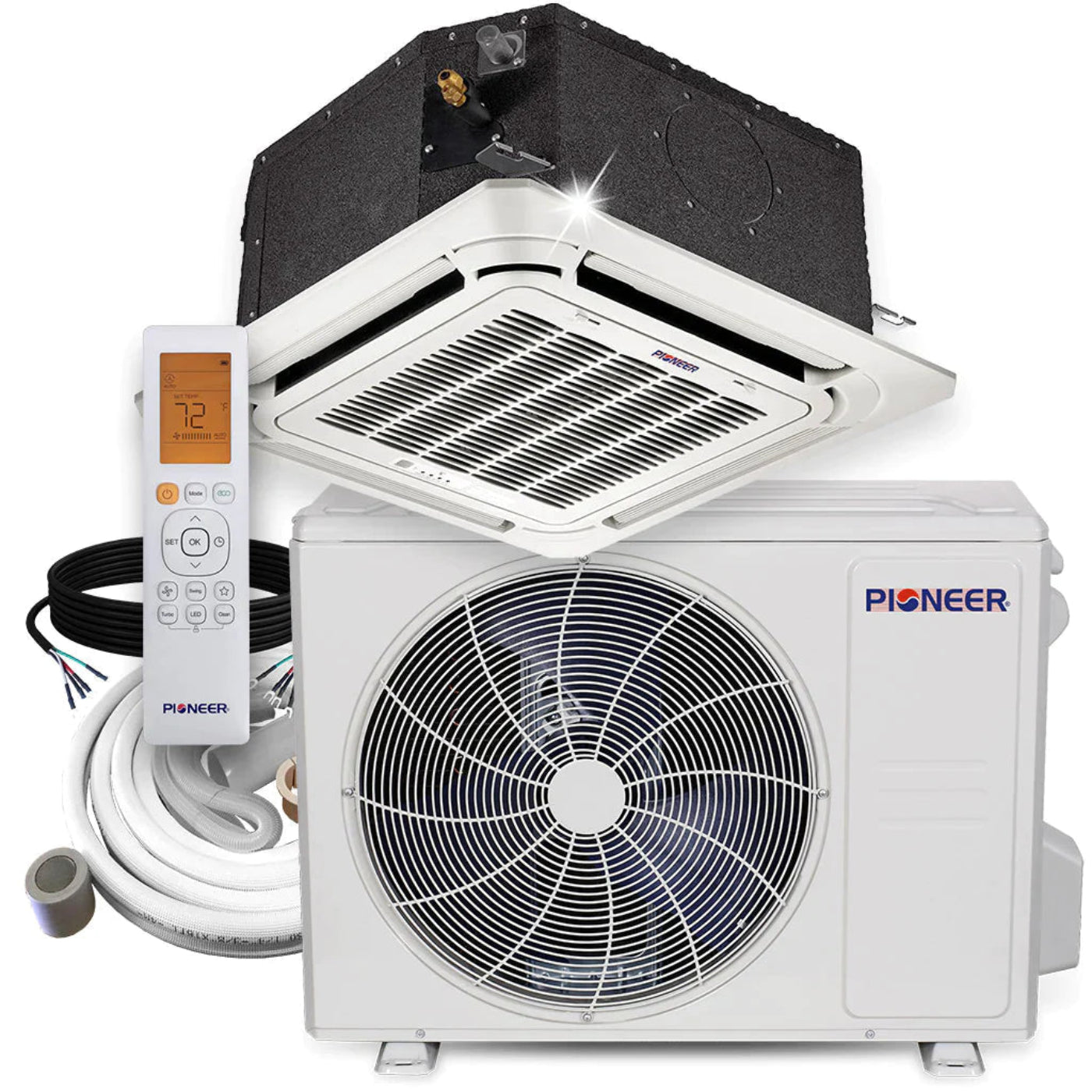

Pioneer 9,000 BTU 20 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System Without Installation Kit - CYB009GMFILCAD-00

Pioneer 9,000 BTU 20 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System Without Installation Kit - CYB009GMFILCAD-00

Indoor units of this type of ceiling-mounted ductless mini split system are designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible. Our ceiling cassette mini splits are equipped with digital frequency control for automatic capacity adjustments, a convenient remote controller, automatic air-sweeping louvers, and cooling, heating, dehumidification, and ventilation modes. Ceiling mini split systems also come with remote supply ducting and fresh air intake options. Our ceiling ductless mini splits come in a variety of combinations, which you can mix and match to meet your needs. The ceiling-mounted mini split system comes in a wide range of capacities ranging from 9000 to 48000 BTU. Check out our selection today!

Features

• Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
• Cooling capacity: 9,000 BTU/H with 20 SEER/13 EER efficiency
• Heating capacity: 10,000 BTU/H with 10.5 HSPF/3.08 COP efficiency
• Voltage: 208~230 V, 60 Hertz, 1 Ph
• Ceiling Compact Cassette Air Conditioning & Heating System
• Variable Speed DC Inverter Operation Mode

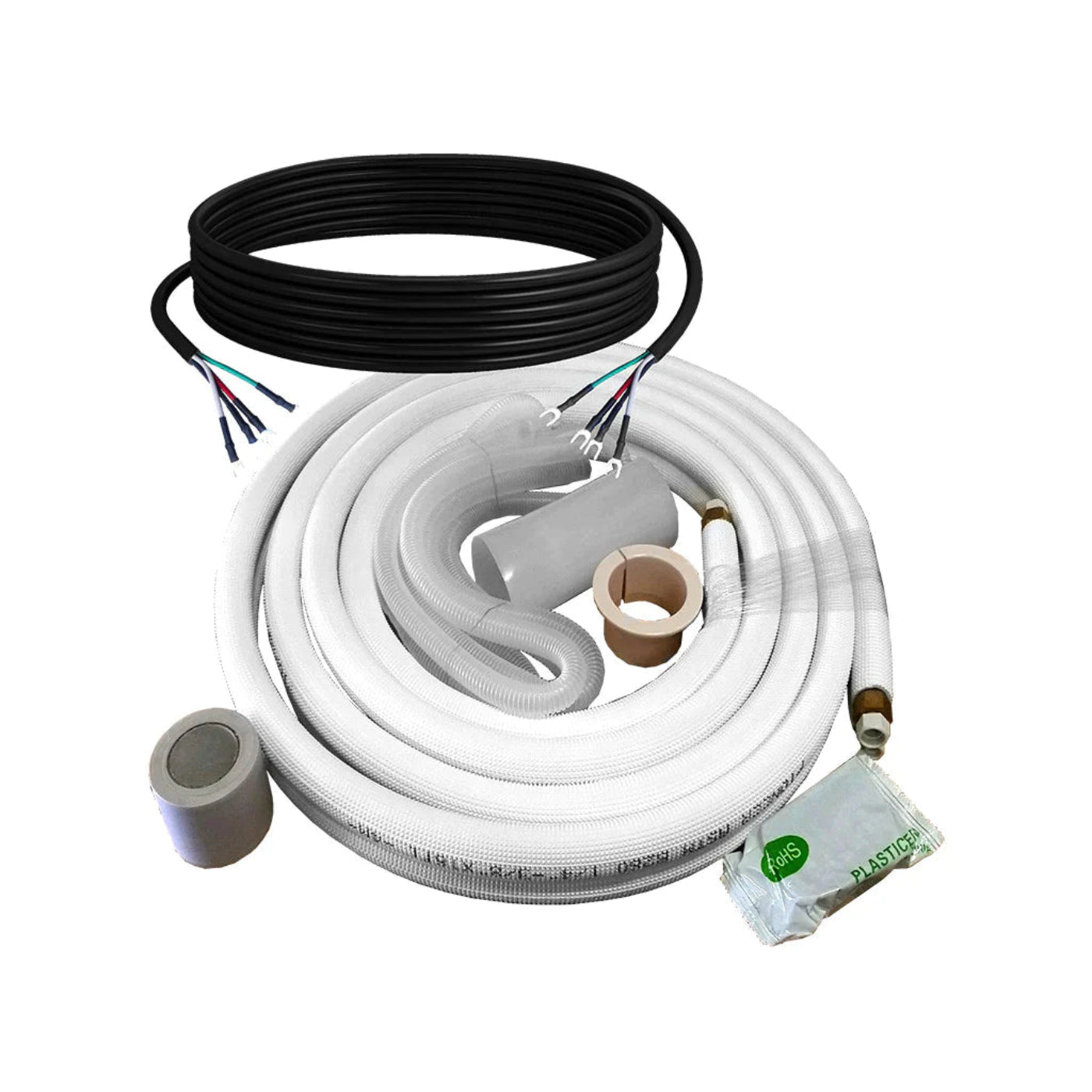

• Customizable length copper line set with flare connections
• Energy-Star Certified
• AHRI Estimated Annual Operating Costs:
• Cooling: $59.00
• Heating: $201.00
• Fresh Air Intake
  The Pioneer CYB series cassette offers a provision of fresh-air intake via an optional reserved 65-75 mm port. New outdoor air can be easily brought inside to replace stale room air.

• Built-in Drain Pump
  Every cassette includes a condensate pump that is capable of vertically lifting drainage water up to 30 inches for 9-18K models, and 40 inches for 24K and above models.

• 8-Way, 360° Airflow
  Enjoy omni-directional air output that ensures the conditioned air proportionally reaches all 4 corners of the room, thanks to an innovative design featuring 4 sides and 4 corners of airflow.

• Programmable Wired Controller Option
  The system can be operated by a wired controller (part number: TST-MLW-I-X2) which enables programming of weekly schedules, and usage without the handheld remote.

• Wi-Fi Controllable via Free App
  Control your new Pioneer CYB system by the remote, or remotely, via your iOS or Android smartphone. Set schedules, turn the system on or off, and monitor current indoor and outdoor temperatures from across the world. Requires separate purchase of the Smart Wi-Fi Kit

• Provision for Auxiliary Duct
  A great benefit of the CYB cassette system is the option for connecting a small auxiliary duct to the side of the indoor unit for cooling a small nearby room, like a closet or bathroom. This air outlet connection must be cut-out manually on the 9K-18K BTU size systems and is pre-made and reserved on the 24K BTU and above sized units.

What's Included

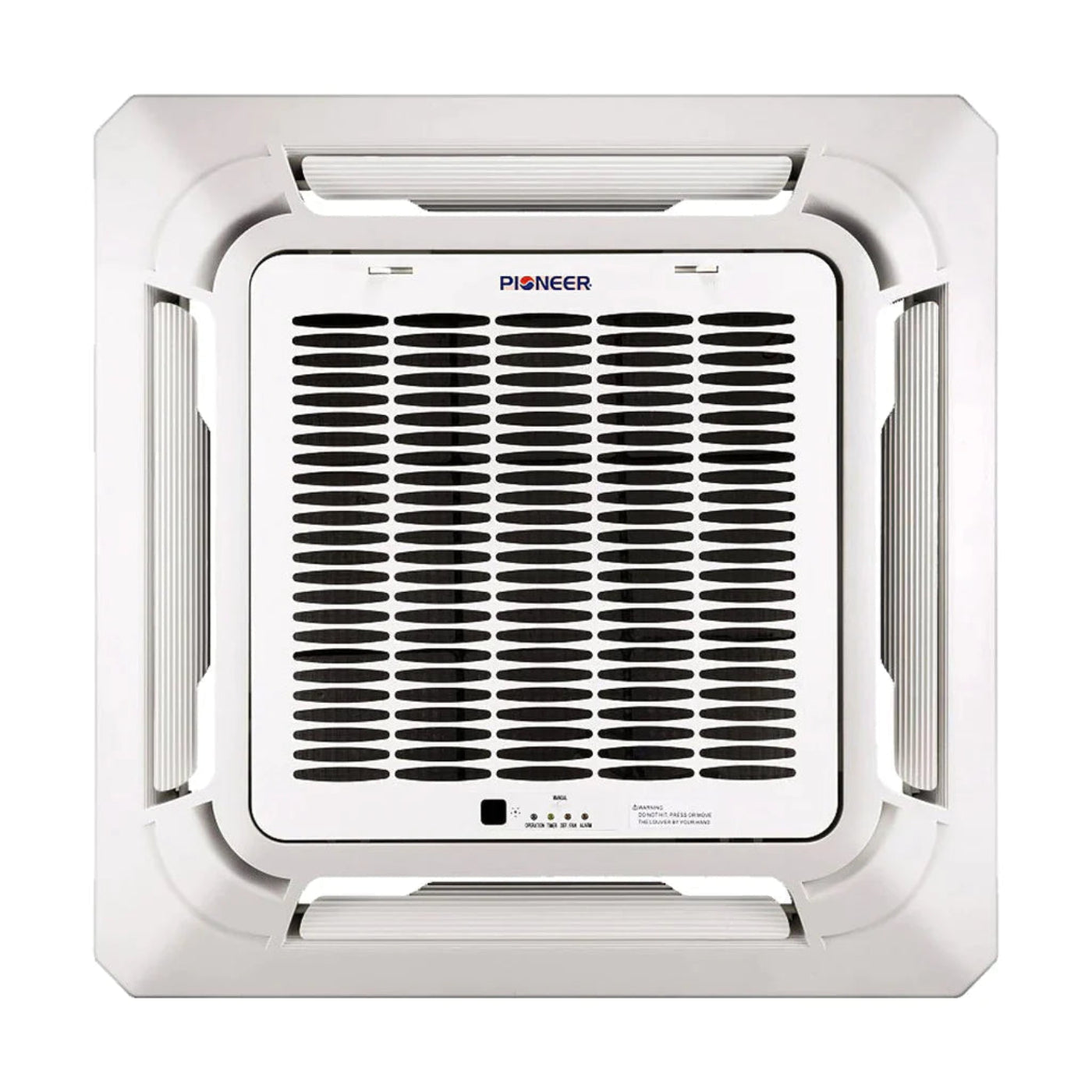

• Indoor Unit

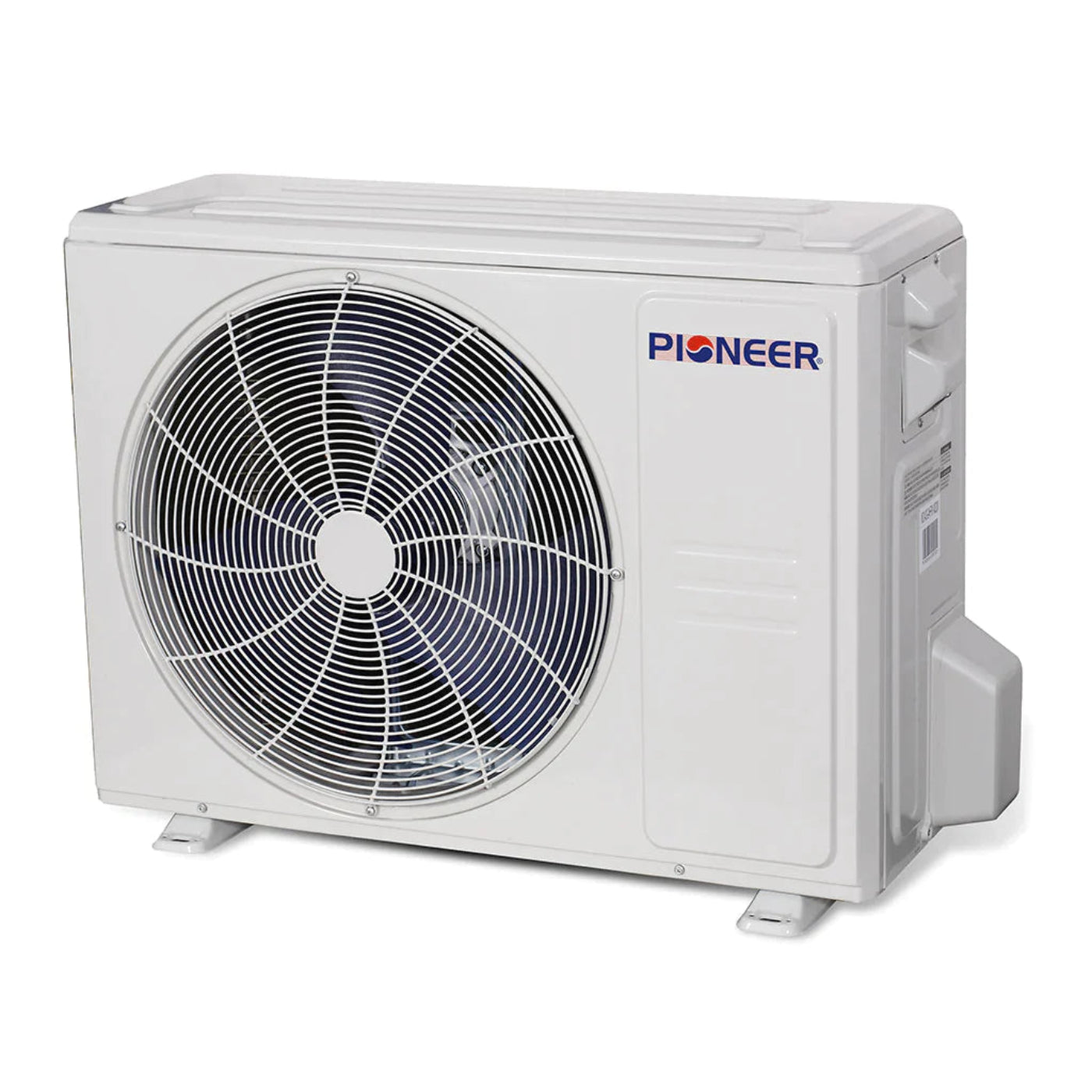

• Outdoor Unit
• Panel

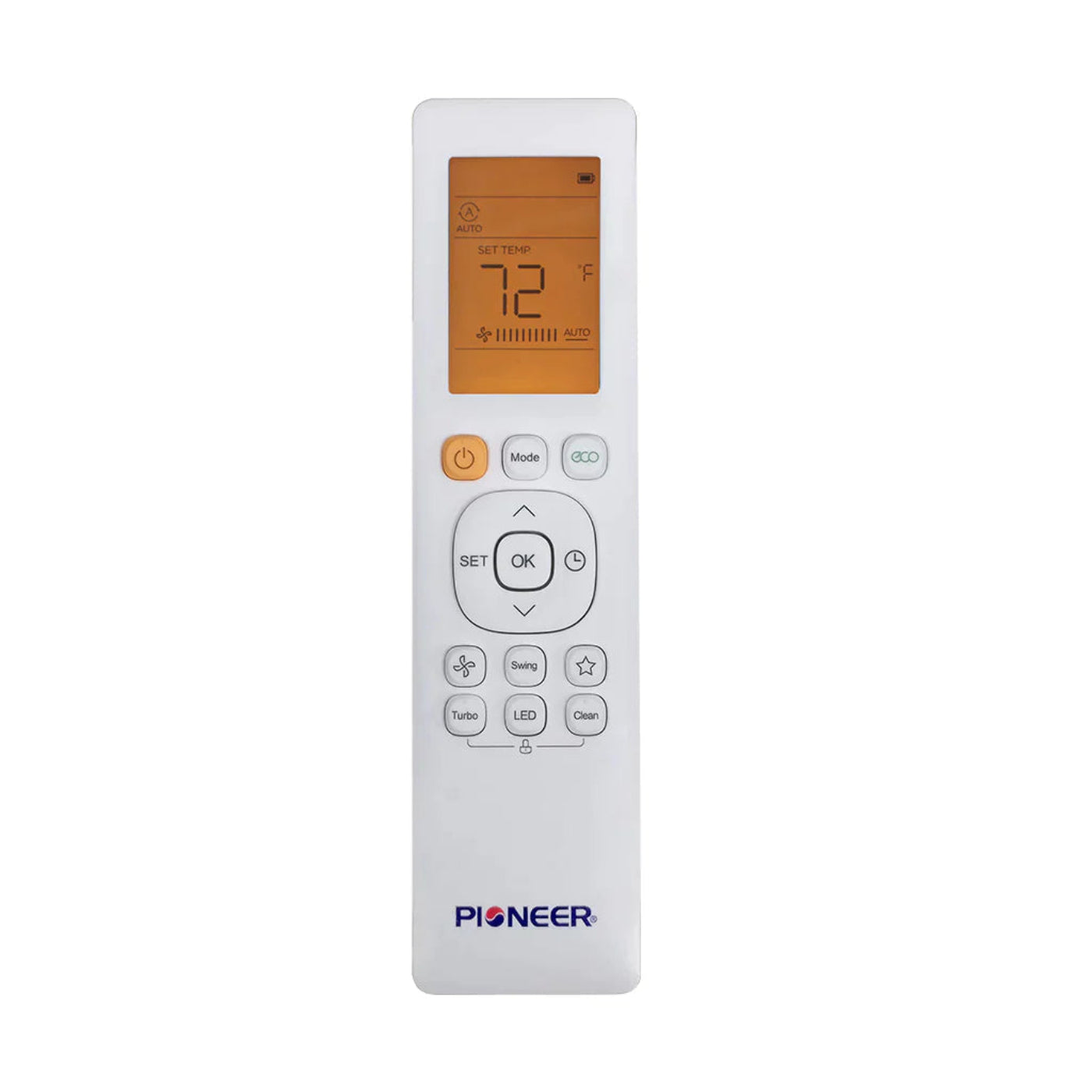

• Wireless Remote Control
• Various Installation Kit Options Available
• Flare Connection Leak Guard Sealer
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Specifications

INSTALLATION & GUIDES

• Technical Brochure
• User Manual
• Installation Manual
• Service Manual

What Our Experts Think

• Efficient Cooling & Heating: 9,000 BTU with a 20 SEER rating offers an ideal balance of energy-efficient cooling and heating, perfect for smaller to medium-sized rooms.
• 8-Way Airflow System: The compact cassette design with 8-way airflow ensures even distribution of cool or warm air, optimizing comfort throughout the room.
• Space-Saving & Discreet: Ceiling-mounted for a clean, unobtrusive appearance that saves floor space while blending seamlessly with your room’s decor.
• Quiet Operation: Equipped with noise-reduction technology, this unit provides a peaceful and comfortable environment without any operational distractions.
• All-Season Comfort: Effectively cools in the summer and heats in the winter, making it a reliable solution for year-round climate control.

Q&A

Q: What is the Pioneer 9,000 BTU 20 SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System?
A: This system provides both cooling and heating with a 20 SEER rating. Featuring an 8-way compact cassette design, it evenly distributes air throughout the room, ensuring balanced comfort. This model does not include an installation kit, offering flexibility for your installation needs.

Q: How does the 8-way cassette design benefit the system?
A: The 8-way cassette design ensures uniform air distribution across the room, reducing temperature imbalances and creating a more comfortable living environment.

Q: What room size is this system suitable for?
A: This system is ideal for medium-sized rooms, effectively cooling and heating spaces up to 500 sq. ft.

Q: Is it suitable for residential use?
A: Yes, it is perfect for residential applications, providing energy-efficient, quiet, and reliable climate control.

Q: Does it require professional installation?
A: Since the system does not come with an installation kit, professional installation is recommended to ensure proper setup and optimal performance.

Maintenance Tips

• Clean Filters Regularly: Wash the filters every 2-4 weeks to prevent dust buildup, which can reduce airflow and system efficiency.
• Inspect and Clean the Coils: Clean the evaporator and condenser coils annually to prevent dirt accumulation and maintain cooling/heating efficiency.
• Check Refrigerant Levels: Ensure refrigerant levels are correct for optimal performance. If low, contact a professional to refill.
• Clear the Drain Line: Inspect and clean the condensate drain regularly to prevent blockages and mold growth.
• Keep the Outdoor Unit Clear: Ensure the outdoor unit is free from debris, such as leaves and dirt, to maintain proper airflow.
• Schedule Professional Maintenance: Have a technician perform an annual inspection and servicing to keep the system running smoothly.
