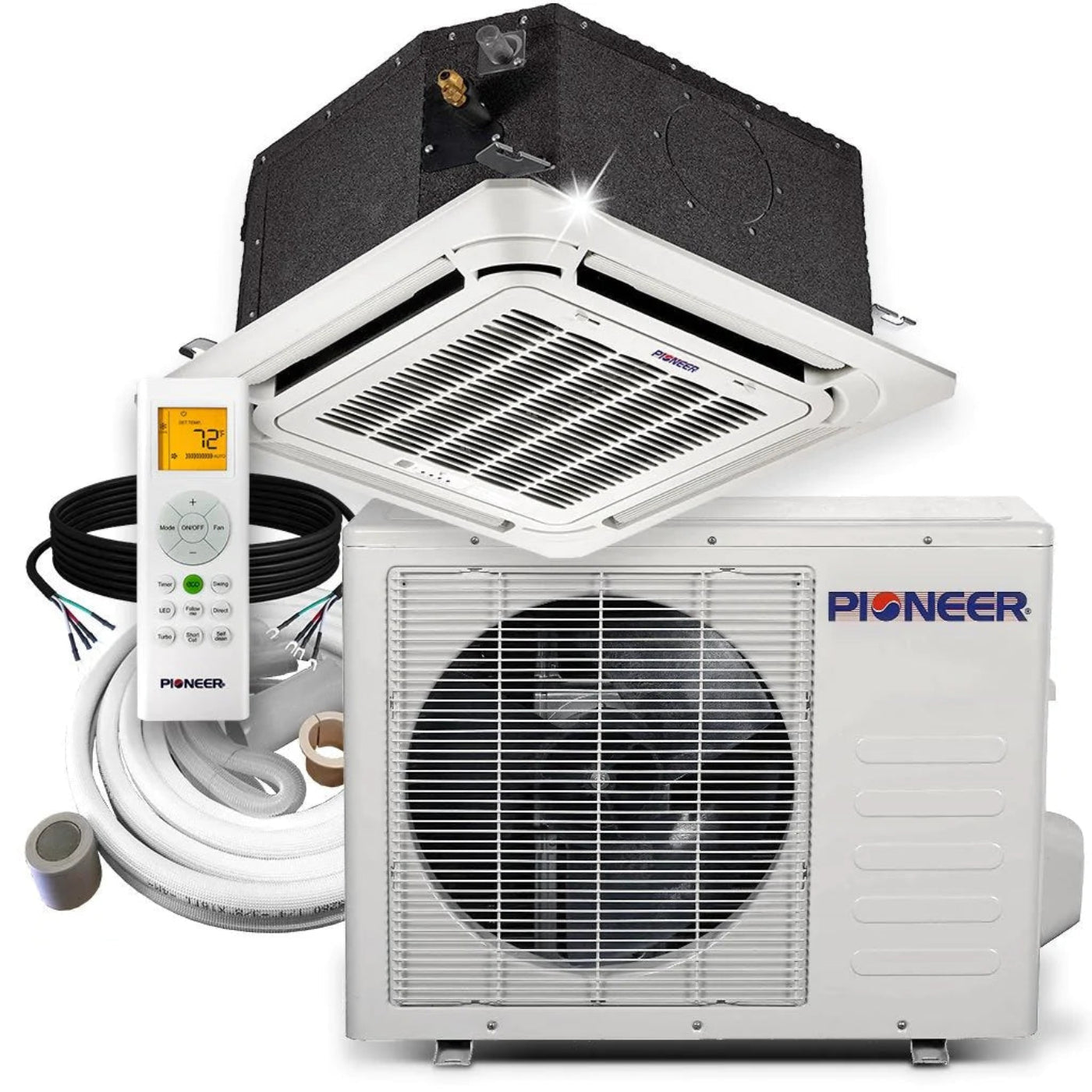

Pioneer 9,000 BTU 20 SEER 8-Way Compact Cassette Ductless Mini Split with 25 ft. Linesets - CYB009GMFILCAD-25
Indoor units of this type of ceiling-mount ductless mini split system are designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible. Our ceiling cassette mini splits are equipped with digital frequency control for automatic capacity adjustments, a convenient remote controller, automatic air-sweeping louvers, and cooling, heating, dehumidification, and ventilation modes. Cassette systems also come with remote supply ducting and fresh air intake options. Our ceiling cassette mini splits come in a variety of combinations, which you can mix and match to meet your needs. The ceiling-mount ductless mini split system comes in a wide range of capacities ranging from 9000 to 48000 BTU. Check out our selection today!
Features
- Cooling capacity:ย 9,000 BTU/Hย withย 20ย SEERย efficiency
- Heating capacity:ย 10,000 BTU/Hย withย 10.5 HSPFย efficiency
- Voltage:ย 208~230 V, 60 Hertz, 1 Ph
-
Ceiling Compact Cassetteย Air Conditioning &ย Heating System
- Variable Speedย DC Inverterย Operation Mode
-
Customizable lengthย copper line set with flare connections
-
Energy-Starย Certified
-
Front Desk Control.ย With a smart control board, Pioneer air conditioners can be turned on/off via long distance control signals.
-
Temperature Compensation.ย Temperature compensation function eliminates the difference in temperature between the floor and ceiling by mixing the different layers of air.ย Consequently, the time for cooling the room is reduced, and a cold offset rising stream of warm air by stirring.
-
Refrigerantย Leakage Detect.ย Indoor unit shows error codeย "EC" and stops automaticallyย when refrigerant leakage isย detected. This protects theย compressor from highย temperature damage due toย refrigerant leakage.
-
Anti-cold Air Function.ย Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature when the unit just starts heating operation. This function can prevent cold air blowing out to avoid discomfort to the users.
- Emergency start
-
Low Ambient Cooling.ย With built-in low ambient kitย or special designed PCB,ย outdoor fan speeds can beย changed automaticallyย according to condensationย temperature. The airย conditioner can run coolingย operation even when theย outdoor ambient temperatureย is down to -15ยฐC.
-
Follow Me (Remote Thermostat).ย Temperature sensor built inย the remote controller willย sense itโs surroundingย temperature. The unit willย adjust the room temperatureย more accurately to give youย comfort.
-
46ยฐF Heating.ย In heating operation, the preset temperature of the air conditioner can be as low as 46ยฐF, which keeps the room temperature steady at 46ยฐF and prevents the house from freezing when it is unoccupied for a long time in severe cold weather.
Optional
-
Ionizer.ย Release negative ions, eliminate odor, dust, smoke and pollen particles to give you fresh and healthy air.
-
Wired Controller.ย Compared with infraredย remote controller, wiredย controller can be fixed on theย wall and makes air conditionerย control more convenient.
- Remote in Engineer Mode
-
Central Control Management.ย The centralized controller is a multi-functional device that can control up to 64 indoor units within a maximum connection length of 3.90 Ft.
What's Included
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control
- R410A Pre-Charged Outdoor Unit
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- Userโs Manual
- Manufacturer Warranty
Specifications
| Product Dimensions |
30.3"W x 11.8"D x 21.8"H |
| Cooling Capacity |
9,000 BTU |
| Heating Capacity |
10,000 BTU |
| Zone Capacity |
1 |
| Low Ambient Unit |
-15F |
| SEER |
20 |
| Voltage |
Requires a minimum of 208~230 V, 60 Hertz, 1 Ph (please check your home meets this electrical requirement prior to purchase) |
| Warranty |
5 Years for Compressor |
| Air Handler 9K BTU |
| Product Dimensions |
22.5"W x 22.5"D x 10.3"H |
| Mount Type |
Wall |
| Cooling Capacity |
9,000 BTU |
| Heating Capacity |
10,000 BTU |
| Coverage Area |
Up to 350 Square Feet |
| Warranty |
5 Years on Parts |
| Panel Data |
| Product Dimensions |
25.5"W x 25.5"D x 2.0"H |
| Weight |
10 lbs |
INSTALLATION & GUIDES
What Our Experts Think
-
Efficient Cooling & Heating: 9,000 BTU with a 20 SEER rating provides efficient climate control for smaller to medium-sized spaces, offering reliable cooling and heating.
-
8-Way Airflow System: Delivers uniform air distribution, ensuring consistent comfort throughout the room, eliminating temperature imbalances.
-
Inverter Technology: Automatically adjusts compressor speed to optimize energy efficiency, ensuring precise temperature control and reduced energy consumption.
-
Flexible Installation: Includes 25 ft. line sets, offering flexibility for installations that require moderate distances between the indoor and outdoor units.
-
Whisper-Quiet Operation: Runs with minimal noise, providing a quiet, comfortable environment perfect for bedrooms, living rooms, or offices.
-
Year-Round Comfort: Delivers dependable cooling in the summer and heating in the winter, ensuring a consistent and comfortable living or working space all year round.
Q&A
Q: What is the Pioneer 9,000 BTU 20 SEER 8-Way Compact Cassette Ductless Mini-Split System?
A: This system provides both cooling and heating with a 20 SEER rating. It features an 8-way compact cassette design for even air distribution and includes 25 ft. line sets for installation flexibility.
Q: How does the 8-way air distribution benefit the system?
A: The 8-way air distribution ensures consistent and efficient airflow throughout the room, preventing hot or cold spots and maintaining balanced comfort.
Q: What room size is this system suitable for?
A: Ideal for smaller to medium-sized rooms, this system effectively cools and heats spaces up to 500 sq. ft.
Q: Is this system suitable for residential use?
A: Yes, it is designed for residential spaces, providing quiet and energy-efficient climate control.
Q: Does it require professional installation?
A: Professional installation is recommended to ensure proper setup and optimal performance.
Maintenance Tips
-
Clean Filters Regularly โ Wash or replace air filters every 2-4 weeks to ensure proper airflow and maintain efficiency.
-
Inspect and Clean Coils Annually โ Clean the evaporator and condenser coils at least once a year to prevent dirt buildup and ensure optimal performance.
-
Check Refrigerant Levels โ Ensure refrigerant levels are sufficient for effective cooling and heating. If levels are low, contact a professional.
-
Clear the Condensate Drain โ Regularly check and clean the condensate drain to prevent water blockages, leaks, and mold growth.
-
Keep the Outdoor Unit Clear โ Remove leaves, dirt, and other debris from the outdoor unit to ensure proper airflow and prevent overheating.
-
Schedule Annual Professional Maintenance โ Have a technician inspect and service the system yearly to ensure peak efficiency and longevity.
