Micro Matic USA Pro-Line Back Bar Coolers - MMPP4305-PKG-WC

Micro Matic USA Pro-Line Back Bar Coolers - MMPP4305-PKG-WC

Pro-Line™ Draft Beer System Power Pack, water-cooled, 37-1/8"W x 18-3/4"D x 31-1/2"H, (2) 80 gph vane circulating pumps, 11.5 gallon capacity glycol bath with exterior sight glass, digital thermostat, insulated cabinet with cover, 3/8" female NPT, R134a, 7,250 BTU, 1 HP compressor, 208/230v/60/1-ph, 9.5 amps, NEMA 6-20P, cETLus

Specifications

Drawings

• Qf_micromatic_mmpp430x-pkg-x-wc_cat.zip

Documents

• Cutsheet
• Video

What Our Experts Think

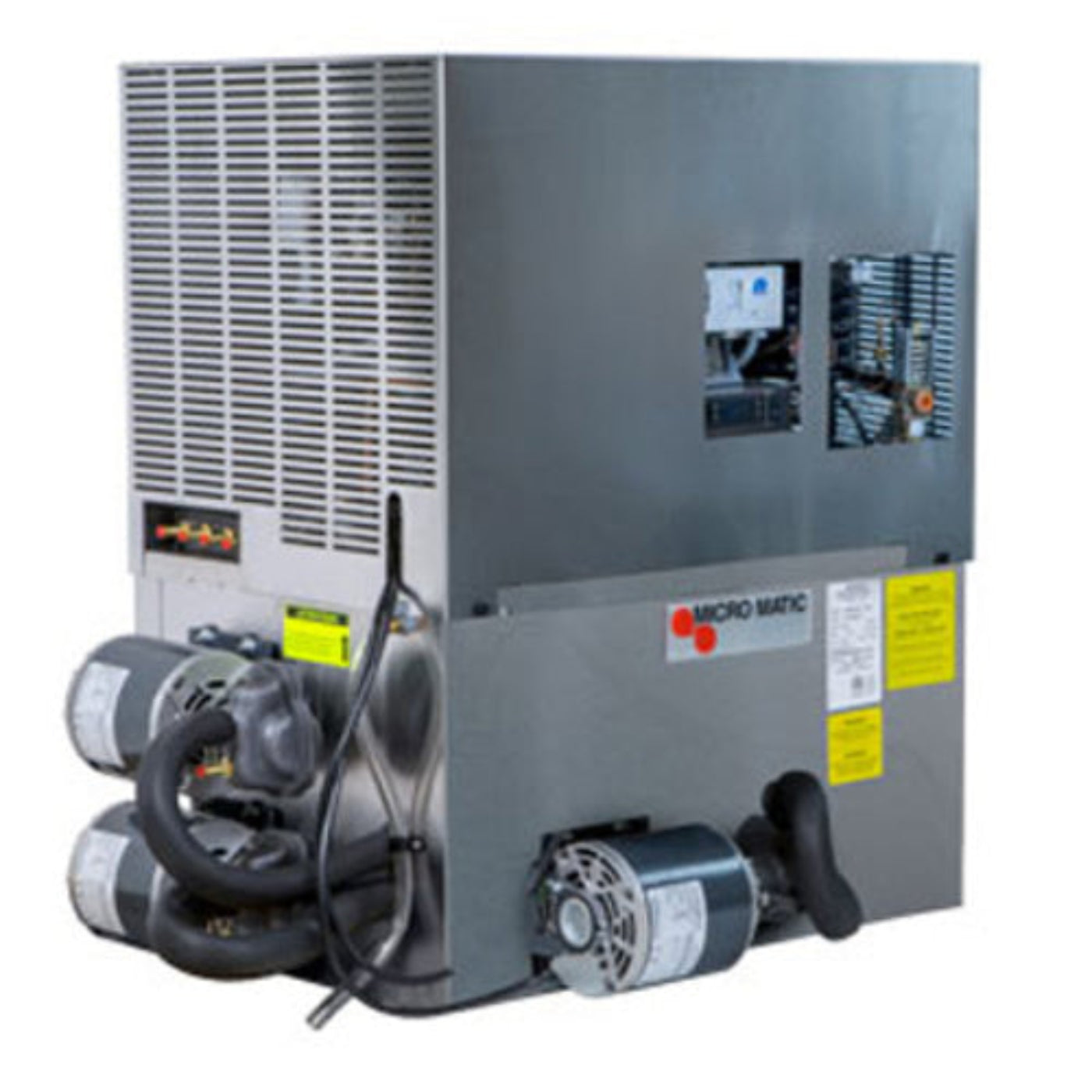

The Micro Matic MMPP4305-PKG-WC is a high-performance, water-cooled glycol power pack designed for long-draw draft beer systems, ensuring consistent beverage temperatures over extended distances.

• High Cooling Capacity: Equipped with a 1½ HP compressor delivering 7,250 BTU, suitable for high-volume operations.

• Dual Pump System: Features two 80 GPH vane circulating pumps, each with a 1/3 HP motor, ensuring efficient glycol circulation

• Large Glycol Bath: The 11.5-gallon glycol bath, housed in an insulated cabinet, reduces energy consumption and extends compressor life.

• User-Friendly Features: Includes a digital thermostat for precise temperature control, an exterior sight glass for easy glycol level monitoring, and a lift-off deck lid for straightforward maintenance.

• Compact Dimensions: With dimensions of 37-1/8" W x 18-3/4" D x 31-1/2" H, the unit is designed to fit into various back bar configurations without occupying excessive space.

• Electrical Requirements: Operates on a 208/230V, 60Hz, 1-phase electrical system, drawing 9.5 amps, and is equipped with a NEMA 6-20P plug.

Q&A

Q: What is the Micro Matic USA Pro-Line Back Bar Cooler (MMPP4305-PKG-WC)?
A: The Micro Matic USA Pro-Line Back Bar Cooler is a high-quality refrigeration unit designed to keep beverages cold at the ideal serving temperature in commercial settings. With sleek, space-efficient design, it features advanced cooling technology and durable construction, perfect for bars, restaurants, and convenience stores.

Q: How does the MMPP4305-PKG-WC improve my business?
A: This cooler enhances beverage accessibility and organization, improves energy efficiency, and reduces the need for frequent restocking, ultimately increasing service speed and customer satisfaction.

Q: Is the Micro Matic Pro-Line Back Bar Cooler easy to install?
A: Yes, it’s designed for straightforward installation with standard power requirements, making it ideal for busy environments.

Q: Where can I use the MMPP4305-PKG-WC cooler?
A: This cooler is perfect for bars, restaurants, cafes, and other commercial settings that need reliable, efficient refrigeration for beverage storage.

Maintenance Tips

• Glycol Solution Check (Monthly)

• Inspect the glycol bath monthly to ensure it's filled to the appropriate level. If low, replenish with Micro Matic Polar Flo glycol solution mixed at a 2.5:1 ratio of water to glycol.

• Glycol Solution Replacement (Every 18 Months)

• Replace the glycol/water mixture every 18 months, or annually in high-humidity areas, to maintain optimal cooling efficiency.

• Condenser Coil Cleaning (Every 60 Days)

• Clean the condenser fins every 60 days to prevent dust accumulation, ensuring efficient heat exchange and system performance.

• Airflow Maintenance

• Verify that there is adequate space around the unit for proper airflow, and ensure vents are unobstructed to prevent overheating.

• Temperature Monitoring

• Regularly check that the internal temperature remains within the optimal range of 34–38°F. Adjust the digital thermostat as needed to maintain consistent cooling.

• Ice Buildup Prevention

• If ice accumulation is observed, allow it to melt completely and replace the glycol solution with a fresh mixture to prevent system strain.

• Electrical Safety Checks

• Periodically inspect electrical components and connections for signs of wear or damage, ensuring safe and reliable operation.

• Maintenance Log Keeping

• Document all maintenance activities, including dates and performed tasks, to track service history and assist in troubleshooting.
