Micro Matic USA Pro-Line Back Bar Coolers - MMPP4301-PKG

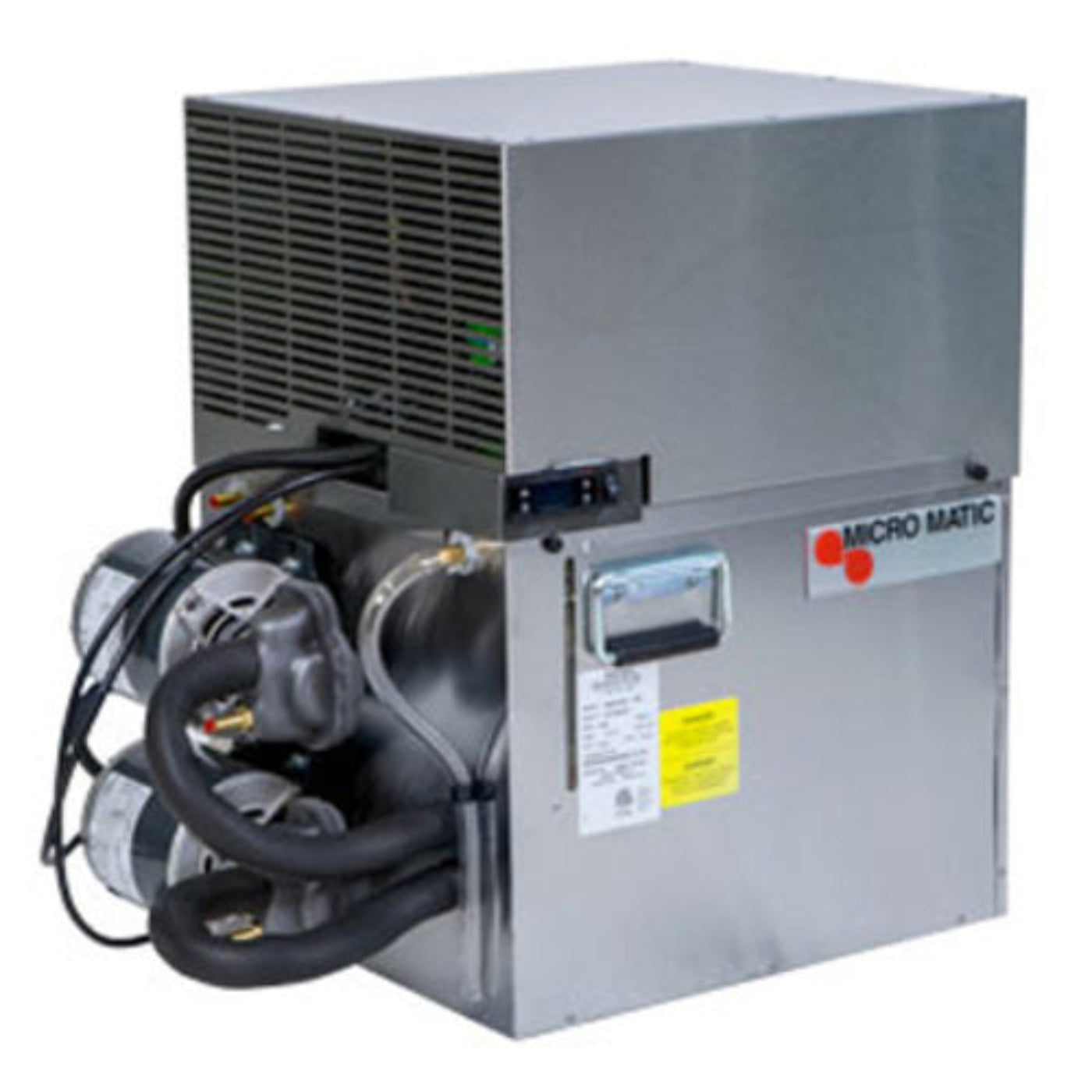

Pro-Line™ Draft Beer System Power Pack, air-cooled, 30"W x 18"D x 27-3/4"H, (2) 80 gph vane circulating pumps with 1/3 HP motor each, 11.5 gallon capacity glycol bath with exterior sight glass, digital thermostat, insulated cabinet with cover, R134a, 2,300 BTU, 1/3 HP compressor, 115v/60/1-ph, 17.7 amps, NEMA L5-30P, cETLus
Drawings
Documents
Specifications
| Manufacturer |
Micro Matic USA |
| Brand Name |
Pro-Line |
| Model |
Pro-Line™ Draft Beer System Power Pack |
| Cooling Type |
Water-cooled |
| Pump Type |
2 x 80 GPH vane circulating pumps |
| Pump Horsepower |
1/3 HP each |
| Glycol Bath Capacity |
11.5 gallons |
| Bath Features |
Exterior sight glass |
| Thermostat |
Digital thermostat |
| Cabinet |
Insulated with removable cover |
| Compressor |
2,300 BTU, 1/3 HP |
| Refrigerant |
R134a |
| Fittings |
3/8" female NPT |
| Voltage |
115V / 60Hz / Single phase |
| Amperage |
17.2 amps |
| Plug Type |
NEMA L5-30P |
What our Experts Think
-
Optimal Cooling Performance: Equipped with a 2,300 BTU, 1/3 HP water-cooled compressor, this unit ensures efficient cooling, making it ideal for high-temperature and high-humidity environments.
-
Efficient Glycol Circulation: Features a single 80 GPH vane circulating pump powered by a 1/3 HP motor, ensuring consistent glycol flow for optimal beer dispensing.
-
Generous Glycol Capacity: The 11.5-gallon glycol bath with an exterior sight glass allows for easy monitoring and maintenance of glycol levels.
-
Precise Temperature Control: Includes a digital thermostat for accurate temperature regulation, ensuring your beverages are served at the perfect temperature.
-
Compact and Durable Design: With dimensions of 30"W x 18"D x 27-3/4"H, this unit is designed to fit into tight spaces without compromising on performance.
-
Energy Efficient: Operating at 115V/60Hz/1Ph and drawing 11.6 amps, it is designed for energy efficiency, making it suitable for various commercial setups.
-
Easy Installation and Maintenance: Comes with an insulated cabinet with a cover and a NEMA 5-15P plug for straightforward installation and maintenance.
Q&A
Q: What is the Micro Matic MMPP4301-WC used for?
A: It’s a water-cooled glycol power pack designed for commercial draft beer systems, ensuring reliable and efficient cooling in high-heat or humidity environments.
Q: What is the cooling capacity of this unit?
A: The MMPP4301-WC has a cooling capacity of 2,300 BTU, ideal for maintaining optimal beer temperatures in long-draw systems.
Q: What are the power requirements?
A: It operates on 115V/60Hz/1Ph power, with a 1/3 HP compressor and an 11.6-amp power draw.
Q: How does the water-cooled design benefit my system?
A: The water-cooled system allows it to perform well in environments where air-cooled systems may struggle, such as high ambient temperatures or humidity.
Maintenance Tips
-
Glycol Solution Maintenance
Regularly inspect and maintain the glycol solution to ensure optimal cooling performance.
-
Condenser Coils Cleaning
Clean the condenser coils every 30–90 days to maintain cooling efficiency.
-
Gasket Inspection
Inspect door gaskets for wear or damage and replace as needed to maintain a proper seal.
-
Leveling the Unit
Ensure the unit is level to support proper door alignment and drainage.
-
Drain Line Maintenance
Periodically clear drain lines to prevent clogs and water accumulation.
-
Temperature Monitoring
Regularly check and adjust temperature settings to maintain consistent cooling.
-
Avoid Overloading Shelves
Avoid overloading shelves to promote proper airflow and cooling efficiency
