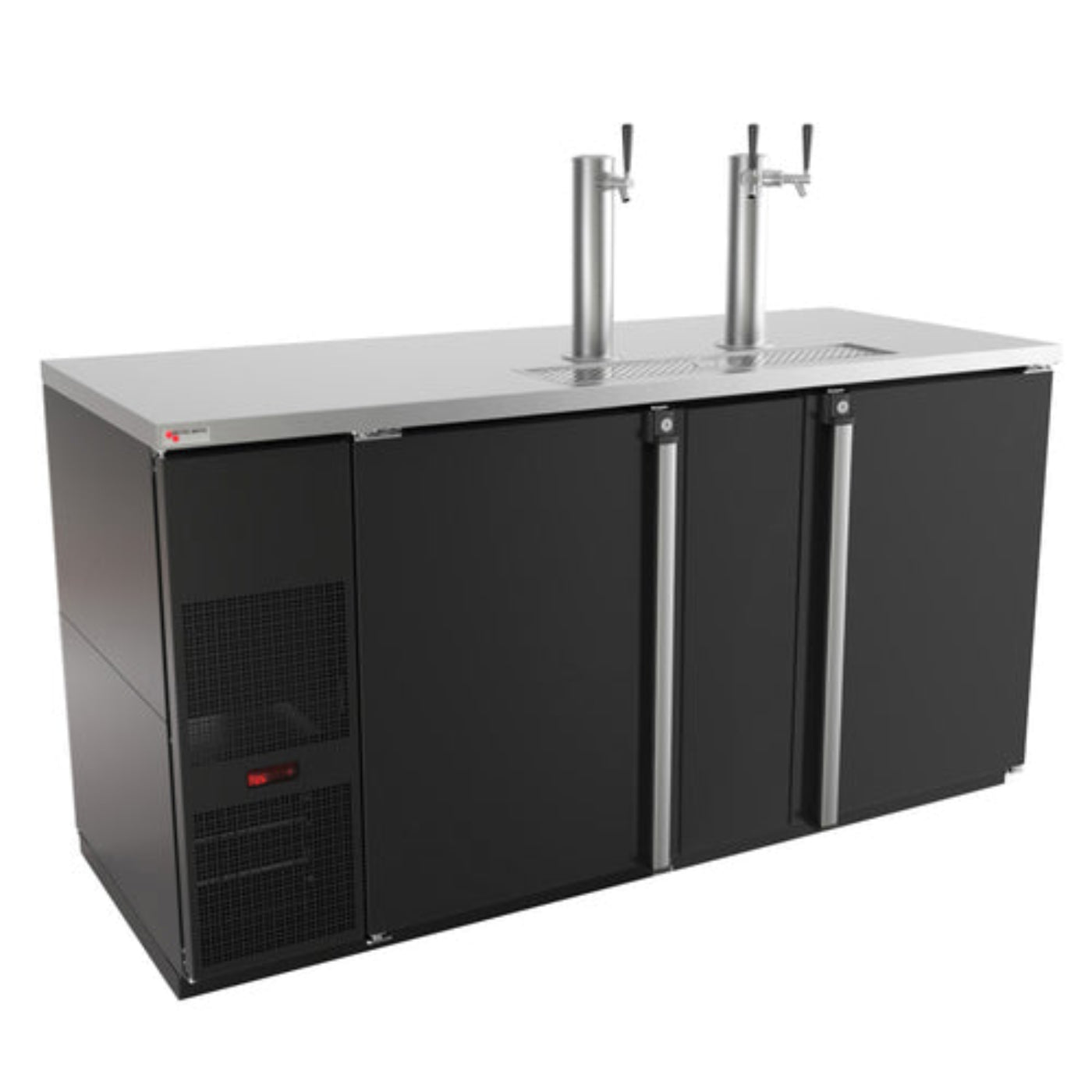

Micro Matic USA Pro-Line Back Bar Coolers - MDD68-E
Pro-Line E-Series Draft Beer Cooler, two-section, 69-1/2"W, self-contained refrigeration, digital thermostat, 28.0 cu. ft. capacity, integral glass rinser, (2) 3" diameter polished stainless steel draft towers (3 faucets, NSF-approved, faucet knobs not included), (2) solid hinged doors with locks, drip tray with integrated glass rinser & removable grill, automatic condensate evaporator, stainless steel top & interior, black vinyl over steel exterior, R134a, 1/3 HP, 115v/60/1-ph, 6.5 amps, NEMA 5-15P, cETLus, ETL-Sanitation (tapping equipment sold separately)
Specifications
| Manufacturer |
Micro Matic USA |
| Brand Name |
Pro-Line |
| Model Series |
E-Series |
| Certifications |
cETLus, ETL-Sanitation |
| Height |
37.25 in |
| Width |
69.5 in |
| Depth |
28.25 in |
| Shipping Weight |
359.0 lbs |
| Internal Capacity |
28.0 cu. ft. |
| Top Style |
Flat Top |
| Exterior Finish |
Black vinyl over steel exterior |
| Doors |
2 solid hinged doors with locks |
| Columns / Towers |
2 columns with 3" diameter polished stainless steel draft towers (3 faucets) |
| Faucets |
3 faucets total (1 or 2 per column) – NSF-approved (faucet knobs not included) |
| Glass Rinser |
Integral glass rinser with drip tray and removable grill |
| Refrigeration |
Self-contained, 1/3 HP, automatic condensate evaporator |
| Refrigerant Type |
R134a |
| Temperature Control |
Digital thermostat |
| Electrical |
115v / 60Hz / 1-phase, 6.5 amps, NEMA 5-15P |
| Interior Finish |
Stainless steel |
| Additional Notes |
Tapping equipment sold separately |
What Our Experts Think
-
High-Capacity Beverage Storage
Offers 28 cu. ft. of interior space, accommodating up to (3) 1/2 barrel kegs, ideal for high-volume establishments.
-
Efficient Cooling System
Features a balanced refrigeration system operating between 36–38°F, ensuring beverages remain consistently chilled.Durable Construction
Built with a heavy-duty stainless steel top and interior, complemented by a black vinyl exterior, designed for long-term commercial use.
-
User-Friendly Design
Equipped with self-closing doors with locks, a digital thermostat for precise temperature control, and integrated LED lighting for enhanced visibility.
-
Additional Functionalities
Includes a drip tray with an integrated glass rinser and a removable grill, facilitating easy maintenance and glassware preparation
Q&A
Q: What is the Micro Matic MDD68-E Back Bar Cooler?
A: A 68" commercial back bar beer cooler designed to store and serve draft beer efficiently.
Q: How many kegs does it hold?
A: Holds up to (3) 1/2 barrel kegs or a combination of smaller kegs.
Q: Is it energy-efficient?
A: Yes, it uses eco-friendly R290 refrigerant and efficient cooling components.
Q: Is it compliant with commercial standards?
A: Yes, it's NSF-certified and ETL-listed for commercial use.
Q: Who is this cooler ideal for?
A: Perfect for bars, restaurants, and venues needing reliable back bar draft beer storage.
Maintenance Tips
To ensure optimal performance and longevity of your Micro Matic MDD68-E, adhere to the following maintenance practices:
-
Condenser Coil Cleaning: Clean the condenser coils every six months to prevent compressor malfunction. Disconnect power, access the condensing unit, and vacuum thoroughly .
-
Cabinet Cleaning: Use lukewarm water and mild detergent to clean both interior and exterior surfaces. Avoid abrasive materials to prevent scratches
-
Door Seal Inspection: Regularly check door gaskets for wear or damage. Replace if seals are loose or cracked to maintain energy efficiency.
-
Ventilation Maintenance: Ensure vents are unobstructed to allow proper airflow. Avoid placing items that block ventilation paths.
-
Temperature Monitoring: Maintain internal temperatures between 34°F and 38°F. Use the digital thermostat to monitor and adjust settings as needed
-
Defrosting: If ice buildup occurs, defrost the unit to maintain efficiency
-
Electrical Safety: Avoid using extension cords. If necessary, use a grounded 16 AWG or heavier cord, not exceeding 20 feet in length
