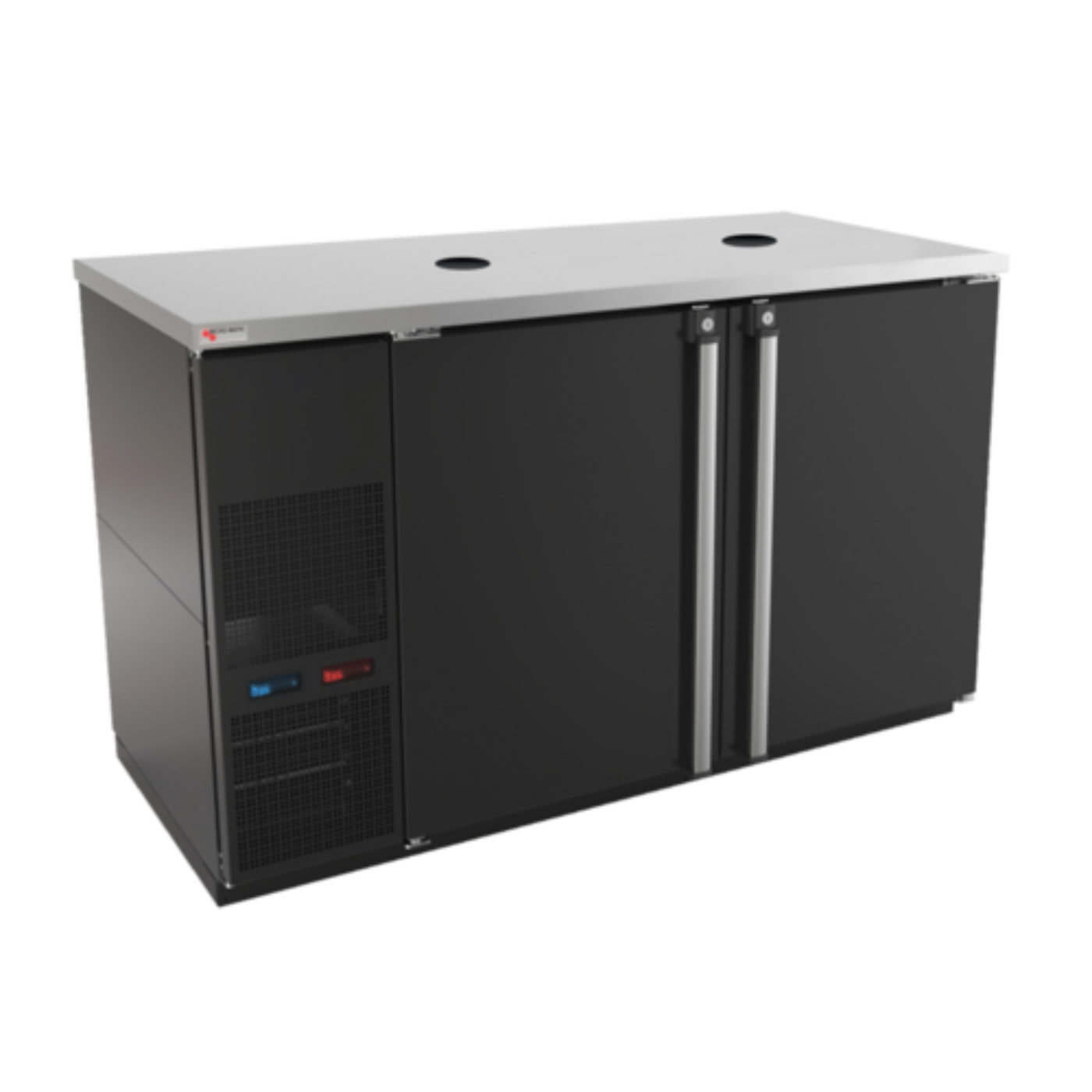

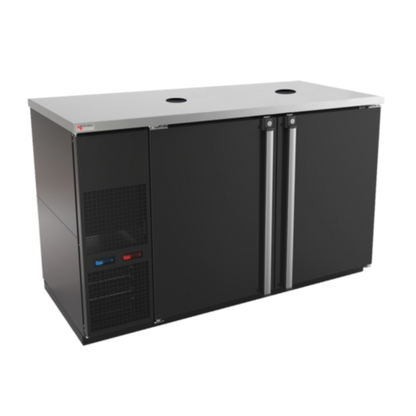

Micro Matic USA Pro-Line Draft Beer & Wine Dispensers - MDD58WLT-E
Pro-Line E-Series Dual Temperature Wine Cooler Dispenser, two-section, 59-1/2"W, self-contained refrigeration, (2) 3" diameter holes for wine fonts, (2) LED digital temperature displays, (2) solid hinged doors with locks, front ventilated, automatic condensate evaporator, includes (2) rear knock-out plugs for gas lines, stainless steel interior, stainless steel top, black vinyl over steel exterior, R134a, 1/3 HP, 115v/60/1-ph, 6.5 amps, NEMA 5-15P, cETLus, ETL-Sanitation (tapping equipment sold separately)
Specifications
| Manufacturer |
Micro Matic USA |
| Brand Name |
Pro-Line |
| Model Series |
E-Series |
| Certifications |
cETLus, ETL-Sanitation |
| Height |
37.25 in |
| Width |
59.5 in |
| Depth |
28.25 in |
| Top |
Flat top, stainless steel |
| Refrigeration Type |
Self-contained refrigeration |
| Towers/Taps |
None (wine fonts not included) |
| Width (side-to-side OA) |
59" |
| Exterior Finish |
All black vinyl over steel exterior |
| Doors |
2 solid hinged doors with locks |
| Glass Rinser |
No glass rinser included |
| Refrigeration |
1/3 HP, automatic condensate evaporator |
| Refrigerant Type |
R134a |
| Temperature Control |
(2) LED digital temperature displays |
| Electrical |
115v / 60Hz / 1-phase, 6.5 amps, NEMA 5-15P |
| Interior Finish |
Stainless steel |
| Additional Features |
Front ventilated, includes (2) rear knock-out plugs for gas lines |
| Additional Notes |
Tapping equipment sold separately |
Documents
What Our Experts Think
-
Dual-Zone Temperature Control
Features two dedicated temperature zones: 42–48°F for white wines and 55–65°F for red wines, ensuring optimal serving conditions for each varietal.
-
High Capacity
Accommodates up to eight 1/6 barrel kegs (four per zone), allowing for a diverse selection of wines on tap.
-
Efficient Dispensing System
Pre-drilled for customer tower choice, enabling customization of dispensing options.
-
Durable Construction
Built with a rugged stainless steel top and interior, complemented by a black vinyl over steel exterior, designed for long-term commercial use.
-
User-Friendly Design
Includes color-coded digital thermostats for each zone, facilitating easy monitoring and temperature adjustments.
Q&A
Q: What is the Micro Matic MDD58WLT-E?
A: A dual-zone commercial wine dispenser designed for serving red and white wines at precise temperatures.
Q: What is its keg capacity?
A: Holds up to eight 1/6-size wine kegs, ideal for variety and volume.
Q: Can it be used for beer?
A: Primarily for wine, but suitable for some craft beers requiring similar cooling conditions.
Q: Who is it best for?
A: Ideal for bars, restaurants, and venues offering high-volume wine service on tap.
Maintenance Tips
To ensure optimal performance and longevity of your Micro Matic MDD58WLT-E, adhere to the following maintenance practices:
-
Condenser Coil Cleaning: Clean the condenser coils every six months to prevent compressor malfunction. Disconnect power, access the condensing unit, and vacuum thoroughly.
-
Cabinet Cleaning: Use lukewarm water and mild detergent to clean both interior and exterior surfaces. Avoid abrasive materials to prevent scratches.
-
Door Seal Inspection: Regularly check door gaskets for wear or damage. Replace if seals are loose or cracked to maintain energy efficiency.
-
Ventilation Maintenance: Ensure vents are unobstructed to allow proper airflow. Avoid placing items that block ventilation paths.
-
Temperature Monitoring: Maintain internal temperatures between 34°F and 38°F. Use the digital thermostat to monitor and adjust settings as needed.
-
Defrosting: If ice buildup occurs, defrost the unit to maintain efficiency.
-
Electrical Safety: Avoid using extension cords. If necessary, use a grounded 16 AWG or heavier cord, not exceeding 20 feet in length.
