Micro Matic USA Pro-Line Back Bar Coolers - MDD23GR-E

Micro Matic USA Pro-Line Back Bar Coolers - MDD23GR-E

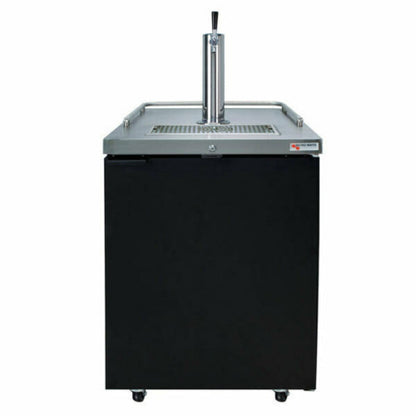

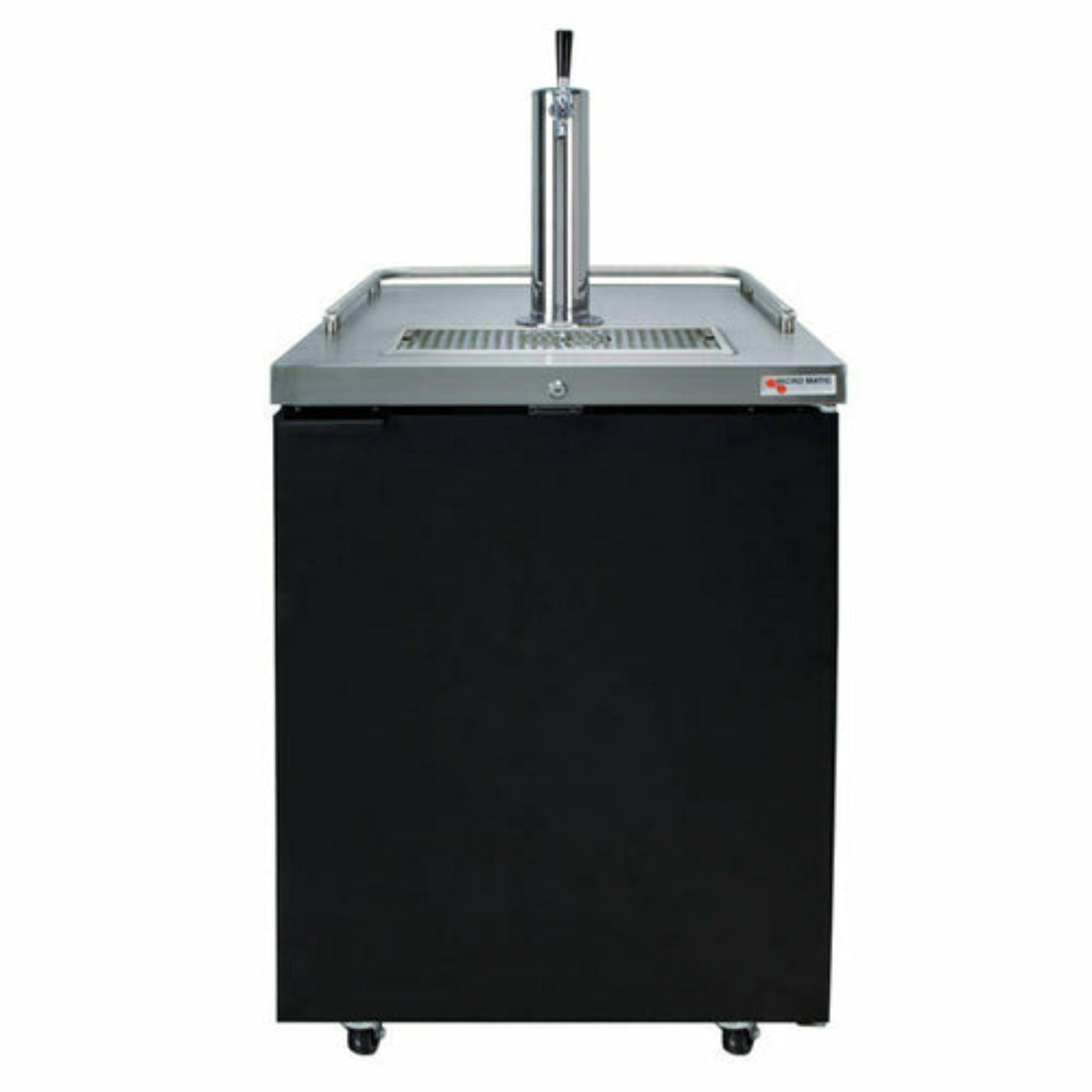

Pro-Line E-Series  Draft Beer Cooler, one-section, 25"W, self-contained refrigeration, 8.4 cu. ft. capacity, (1) 1/2 size keg capacity, integral glass rinser, 3" diameter polished stainless steel draft tower with (1) faucet (NSF-approved, faucet knob not included), (1) solid hinged door with lock, analog dial thermostat, stainless steel drip tray with removable grill includes hose & drain bottle, automatic condensate evaporator, galvanized steel interior walls & stainless steel interior floor with keg slide, stainless steel top with glass guard rail on front & sides, black vinyl over steel exterior, casters, R134a, 1/6 HP, 115v/60/1-ph, 2.7 amps, cord, NEMA 5-15P, cETLus, ETL-Sanitation (tapping equipment sold separately)

Specifications

Documents

• Cutsheet
• Owner's manual

What Our Experts Think

• Compact & Efficient: Measuring 25" wide with an 8.4 cu. ft. capacity, this cooler is ideal for establishments with limited space.

• Durable Construction: Features a black vinyl exterior and a heavy-duty stainless steel top, ensuring longevity and ease of maintenance.

• Advanced Cooling System: Equipped with a self-contained refrigeration system, it maintains optimal temperatures for your beverages.

• User-Friendly Design: Includes an analog dial thermostat for precise temperature control and a large drip tray with a removable grill for easy cleaning.

• Convenient Features: Comes with commercial-grade casters for mobility, a hose, and a drain bottle for added convenience.

• Energy Efficient: Operates on R134a refrigerant, providing an eco-friendly and cost-effective solution

Q&A

: What is the Micro Matic MDD23GR-E?
A: The MDD23GR-E is a commercial-grade draft beer cooler designed for efficient storage and dispensing. It features an 8.4 cu. ft. capacity with a durable black vinyl exterior and stainless steel top.

Q: What is the keg capacity of the MDD23GR-E?
A: This model can accommodate one 1/2-size keg, making it suitable for establishments with moderate draft beer service needs.

Q: Does the MDD23GR-E include a draft tower?
A: Yes, the MDD23GR-E comes equipped with a 3" diameter polished stainless steel column draft tower and a single NSF-approved faucet. Note that the faucet knob is not included.

Q: What are the cooling specifications?
A: The cooler operates with a 1/6 HP compressor using R-134a refrigerant. It maintains temperatures between 36–38°F, ensuring optimal beer storage.

Q: What are the power requirements?
A: The unit operates on 115V/60Hz/1-phase power, drawing 2.7 amps, and includes a NEMA 5-15P plug for standard outlets.

Q: Where can I purchase the MDD23GR-E?
A: The Micro Matic MDD23GR-E is available for purchase through authorized distributors and online retailers.

Maintenance Tips

• Regular Cleaning: Clean the condenser coil every three months using a soft cloth and non-chloride cleaner to prevent residue build-up and ensure efficient cooling.

• Proper Storage Temperature: Maintain the unit's internal temperature between 36–38°F (2–3°C) to ensure optimal storage conditions for beverages.

• Airflow Maintenance: Ensure that the perforated panel is not blocked and that the unit operates in environments below 100°F (38°C) to prevent overheating.

• Interior Cleaning: Use a soft cloth and non-chloride cleaner to clean the stainless steel interior, avoiding steel pads, wire brushes, or scrapers that can damage the surface.

• Drainage System: Regularly check the automatic condensate evaporator and ensure the drain hose is clear to prevent water accumulation and potential damage.

• Component Inspection: Periodically inspect components like the compressor and thermostat for proper operation and replace any worn parts to maintain optimal performance.
