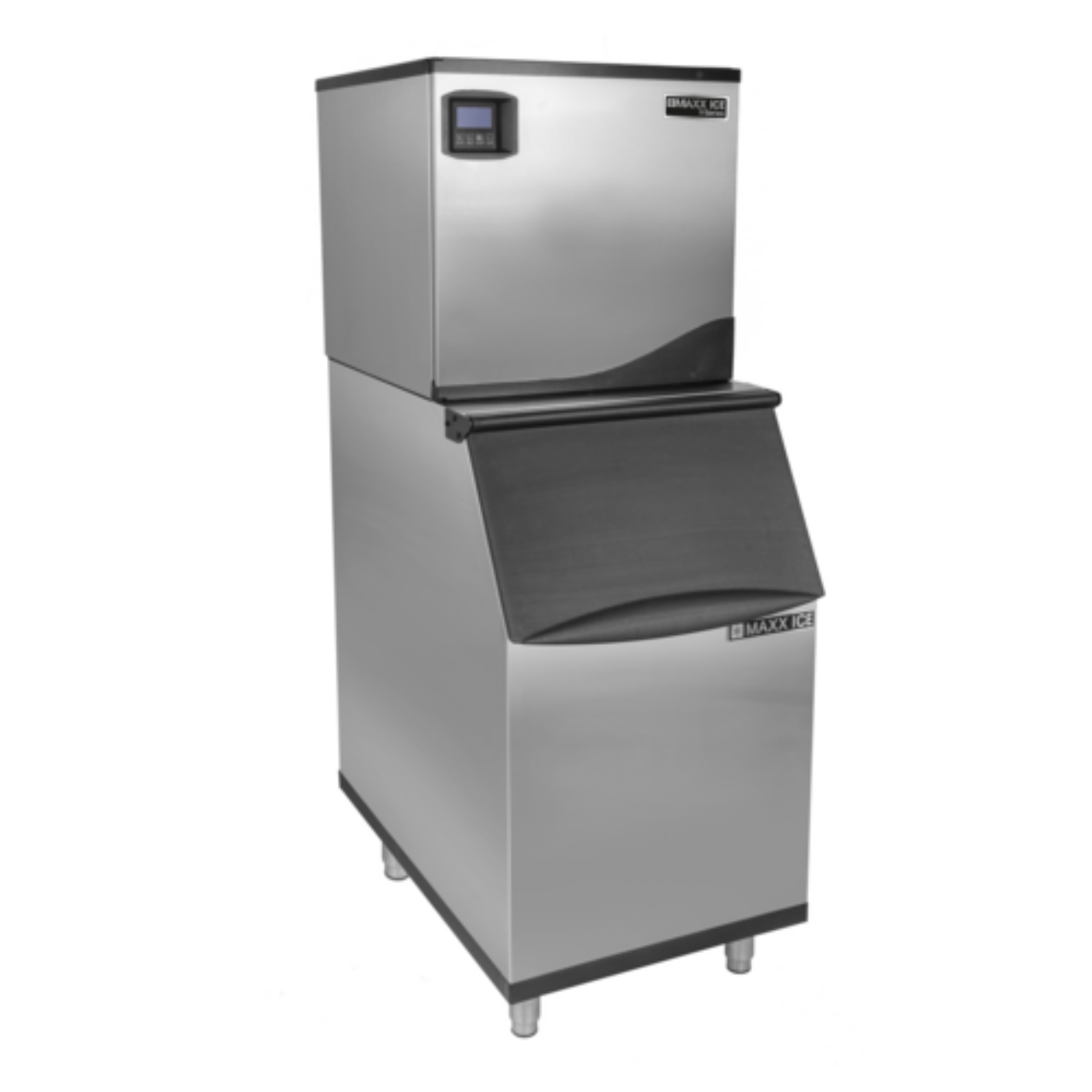

Maxximum MVI490FB Maxx Ice V-Series Ice Machines
Maxx Ice V-Series Modular Ice Machine, 30"W, 490 lb, Full Dice Ice Cubes, air-cooled, self-contained condenser, and Storage Bin, 30"W, 470 lb, in Stainless Steel, R134a refrigerant, cETLus, ETL-Sanitation (MVI490FB)
Specifications
| Manufacturer |
Maxximum |
| Brand Name |
Maxx Ice V-Series |
| Height |
62.4 in |
| Width |
30.0 in |
| Depth |
34.0 in |
| Shipping Weight |
306.0 lbs |
| Bin Storage Capacity |
400 - 499 lb bin capacity |
| Cube Type |
Full size/dice |
| Finish |
Black & stainless steel exterior |
| Condenser Type |
Air-cooled |
| Production per 24 hr |
401 - 500 lb (approx. 182 - 226 kg) |
| Specifications |
Maxx Ice V-Series Modular Ice Machine, 30"W, 490 lb, Full Dice Ice Cubes, air-cooled, self-contained condenser, and Storage Bin, 30"W, 470 lb, stainless steel, R134a refrigerant, cETLus, ETL-Sanitation (MVI490FB) |
Documents
What our Experts Think
-
High Daily Output: Produces up to 490 lbs of full-dice ice cubes per day, making it suitable for high-demand environments like large restaurants, hotels, and event venues.
-
Ample Storage Capacity: Comes with a 470 lb capacity storage bin, ensuring a steady supply of ice for busy establishments.
-
Durable Construction: Features a stainless steel exterior with black trim, providing both durability and a professional appearance.
-
User-Friendly Controls: Equipped with programmable, user-friendly digital controls for easy operation and monitoring.
-
Energy Efficient: Designed with an air-cooled compressor and automatic cleaning cycle, contributing to energy efficiency and reducing maintenance needs.
-
Stackable Design: Can be stacked with compatible units to increase ice production capacity, offering flexibility for growing businesses.
-
Easy Maintenance: Includes a hinged front panel for easy cleaning and servicing, ensuring consistent performance.
Q&A
Q: What type of ice does the Maxximum MVI490FB produce?
A: The Maxximum MVI490FB produces full-dice ice cubes measuring 0.875" x 0.875" x 1", ideal for beverages and food display.
Q: What is the daily ice production capacity?
A: It produces up to 490 lbs (222 kg) of ice per day under optimal conditions.
Q: What is the storage capacity?
A: The self-contained storage bin holds up to 470 lbs (213 kg) of ice.
Q: Is the MVI490FB energy-efficient?
A: Yes, it features an air-cooled compressor and programmable digital controls, enhancing energy efficiency.
Q: What are the installation requirements?
A: The MVI490FB operates on 115V, 60Hz, 1-phase power and includes a NEMA 5-15P plug for standard outlets.
Q: Is the MVI490FB easy to maintain?
A: Yes, it includes a self-cleaning mode, a polyethylene storage bin liner for improved sanitation, and an ice scoop for convenience.
Maintenance Tips
-
Weekly Cleaning: Wipe the stainless steel exterior with a mild detergent solution to prevent dirt buildup.
-
Monthly Descaling: Use a nickel-safe ice machine cleaner to remove mineral buildup from the evaporator and water distribution system.
-
Sanitize Regularly: Every 1โ3 months, sanitize the ice-making components with a bleach solution (1 oz bleach per gallon of warm water) to ensure ice purity.
-
Replace Filters: Change the water filter as recommended to maintain high ice quality.
-
Inspect Components: Regularly check the water inlet valve, evaporator, and condenser for any signs of wear or blockage.
