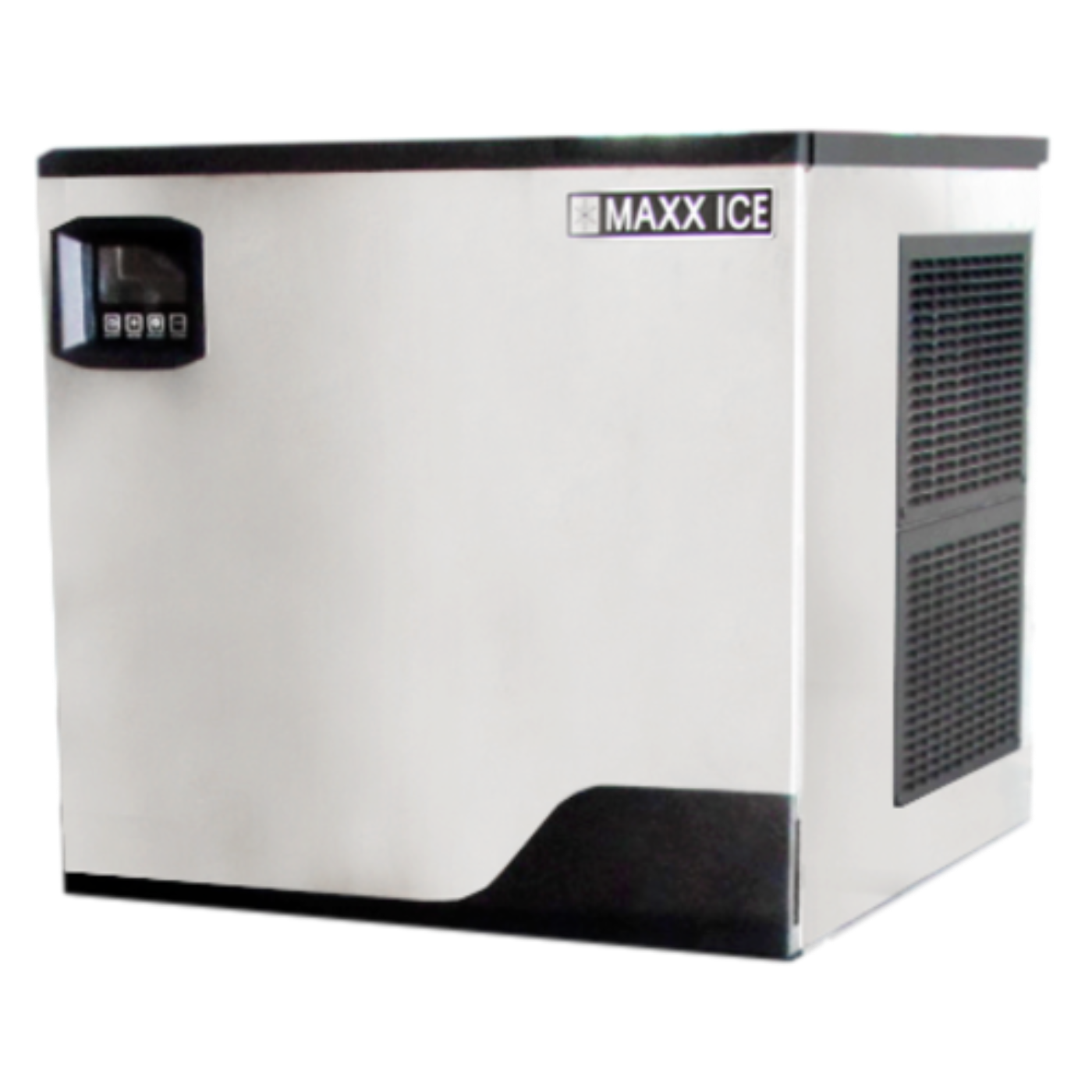

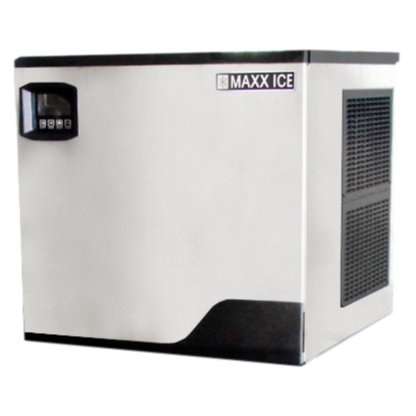

Maxximum MIM650NH Maxx Ice Ice Machines
Maxx Ice Modular Ice Maker, cube-style (half dice), air-cooled, self-contained condenser, programmable digital controls & display, automatic cleaning, overflow prevention, approximately 645 lb. production/24 hours, on/off switch, LED light, vertical evaporator, stainless steel exterior with black trim, R404a refrigerant, 230v/60/1-ph, 8.0 amps, NEMA L14-20, hard wired, NSF, cULus Classified, CE
Specifications
| Manufacturer |
Maxximum |
| Brand Name |
Maxx Ice |
| Certifications |
NSF, CE, cULus Classified |
| Height |
21.0 in |
| Width |
30.0 in |
| Depth |
24.6 in |
| Shipping Weight |
165.0 lbs |
| Width (side-to-side) |
30 โ 39 in |
| Ice Type |
Full size / dice cubes |
| Production per 24 hr |
601 โ 700 lb (approx. 273 โ 317 kg) |
| Condenser Type |
Air-cooled |
| Refrigeration |
Self-contained refrigeration |
| Specifications |
Maxx Ice Modular Ice Maker, cube-style (full dice), air-cooled, self-contained condenser, programmable digital controls & display, automatic cleaning, overflow prevention, approx. 650 lb production/24 hours, on/off switch, LED light, vertical evaporator, stainless steel exterior with black trim, R404a refrigerant, 230v/60/1-ph, 8.0 amps, NEMA L14-20, hard wired, NSF, cULus Classified, CE |
Documents
What our Experts Think
-
Exceptional Ice Output: Produces up to 650 lbs of ice per day, making it perfect for high-demand commercial environments.
-
Space-Saving Head-Only Unit: Pair with a compatible bin to customize storage based on your needs.
-
Heavy-Duty Design: Stainless steel exterior ensures durability, hygiene, and resistance to corrosion.
-
Efficient Cooling: Air-cooled system maintains reliable performance while keeping energy use in check.
-
Simple Operation: Features user-friendly controls and automatic cleaning for easy maintenance.
-
Certified for Commercial Use: NSF and ETL listed, meeting rigorous food safety and sanitation standards.
Q&A
Q: What is the Maxximum MIM650NH Maxx Ice Ice Machine?
A: The Maxximum MIM650NH is a high-capacity, air-cooled modular ice machine for commercial use, capable of producing up to 645 lbs of half-dice ice cubes per day. It features a durable stainless steel exterior with black trim.
Q: What type of ice does it produce?
A: It produces half-dice ice cubes measuring 0.5" x 0.875" x 0.875", ideal for beverages and foodservice applications.
Q: Is the storage bin included?
A: No, this unit is modular and requires a separate storage bin. Compatible bins like the MIB470N or MIB580N are available separately.
Q: What are the power and water requirements?
A: The machine operates on a 230V electrical supply and requires a potable water line with a 3/8" FPT connection. It uses approximately 13.12 gallons of water per 100 lbs of ice produced.
Q: Is it Energy Star certified?
A: Yes, the MIM650NH is Energy Star certified, offering energy-efficient operation and lower utility costs.
Q: What are the dimensions and weight?
A: The unit measures 30" W x 24.6" D x 21" H and weighs approximately 134.5 lbs.
Q: Does it have any special features?
A: Yes, it includes a hinged front panel for easy maintenance, an automatic cleaning cycle, bin overflow prevention, and a digital control system.
Q: Where is it best used?
A: Itโs ideal for high-demand commercial settings such as restaurants, hotels, bars, and catering operations that require reliable ice production.
Maintenance Tips
-
Weekly Cleaning: Wipe the stainless steel exterior with a mild detergent solution to prevent dirt buildup.
-
Monthly Descaling: Use a nickel-safe ice machine cleaner to remove mineral buildup from the evaporator and water distribution system.
-
Sanitize Regularly: Every 1โ3 months, sanitize the ice-making components with a bleach solution (1 oz bleach per gallon of warm water) to ensure ice purity.
-
Replace Filters: Change the water filter as recommended to maintain high ice quality.
-
Inspect Components: Regularly check the water inlet valve, evaporator, and condenser for any signs of wear or blockage.
