Heliatos Boat Freeze Protected Solar Water Heater Kit with Built-In Heat Exchanger

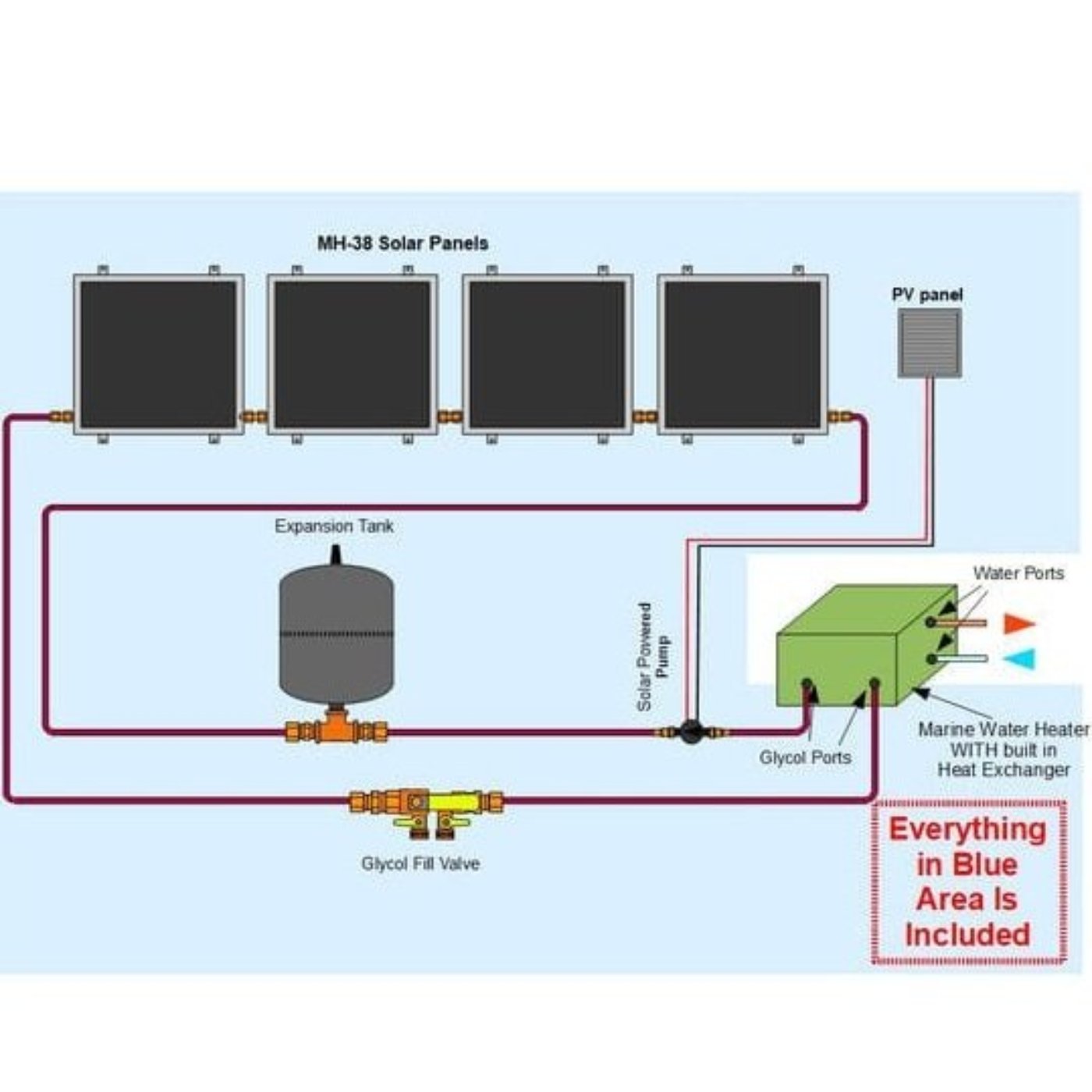

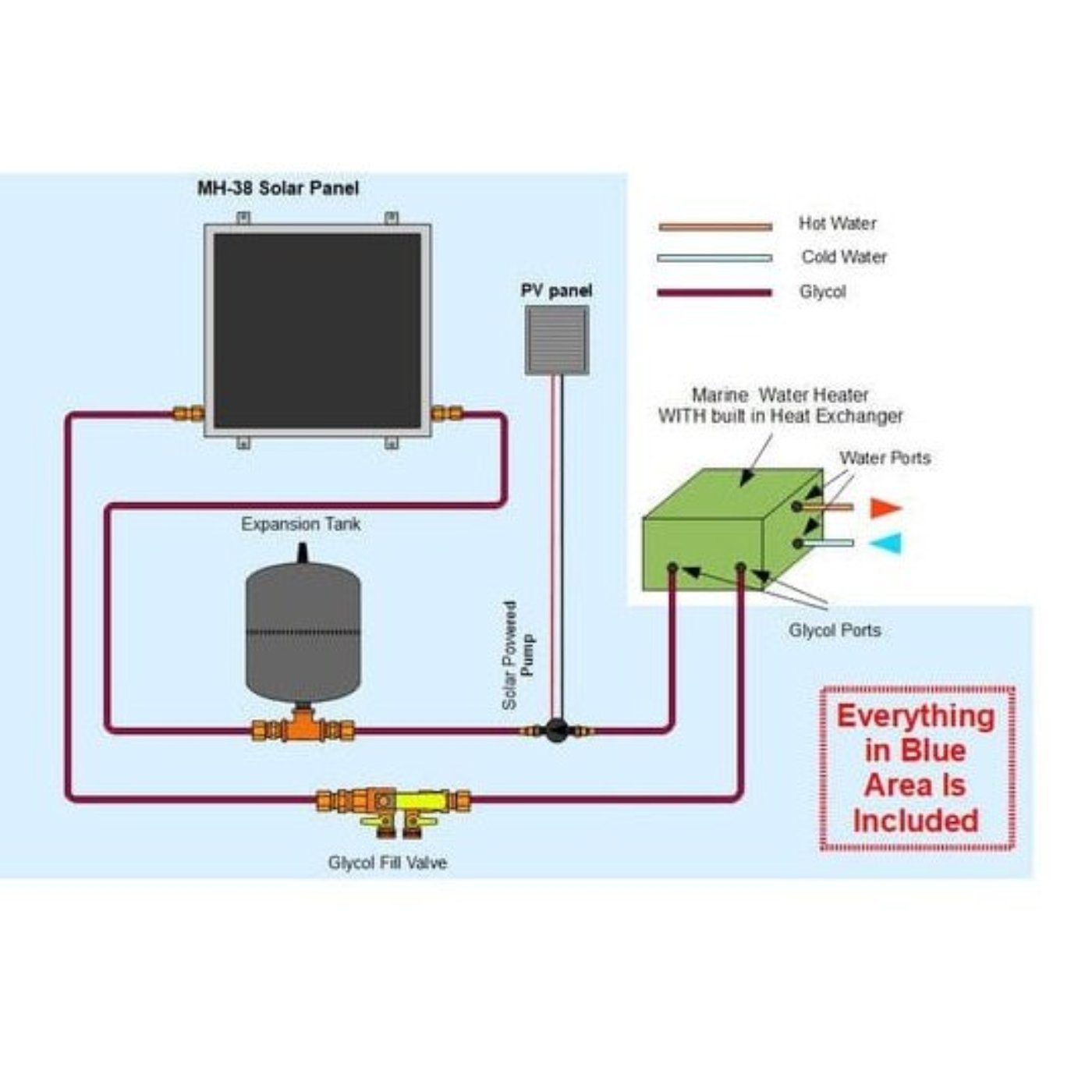

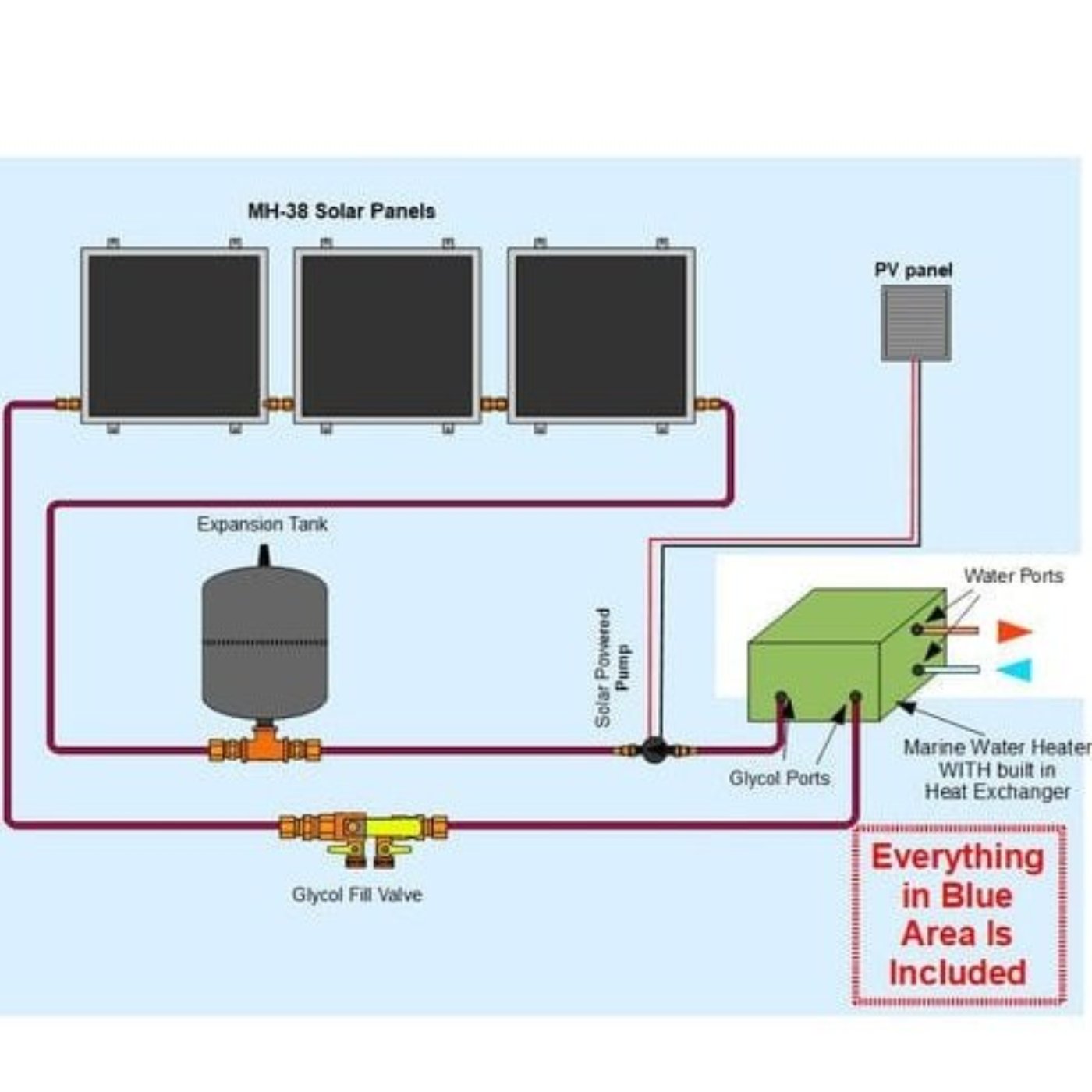

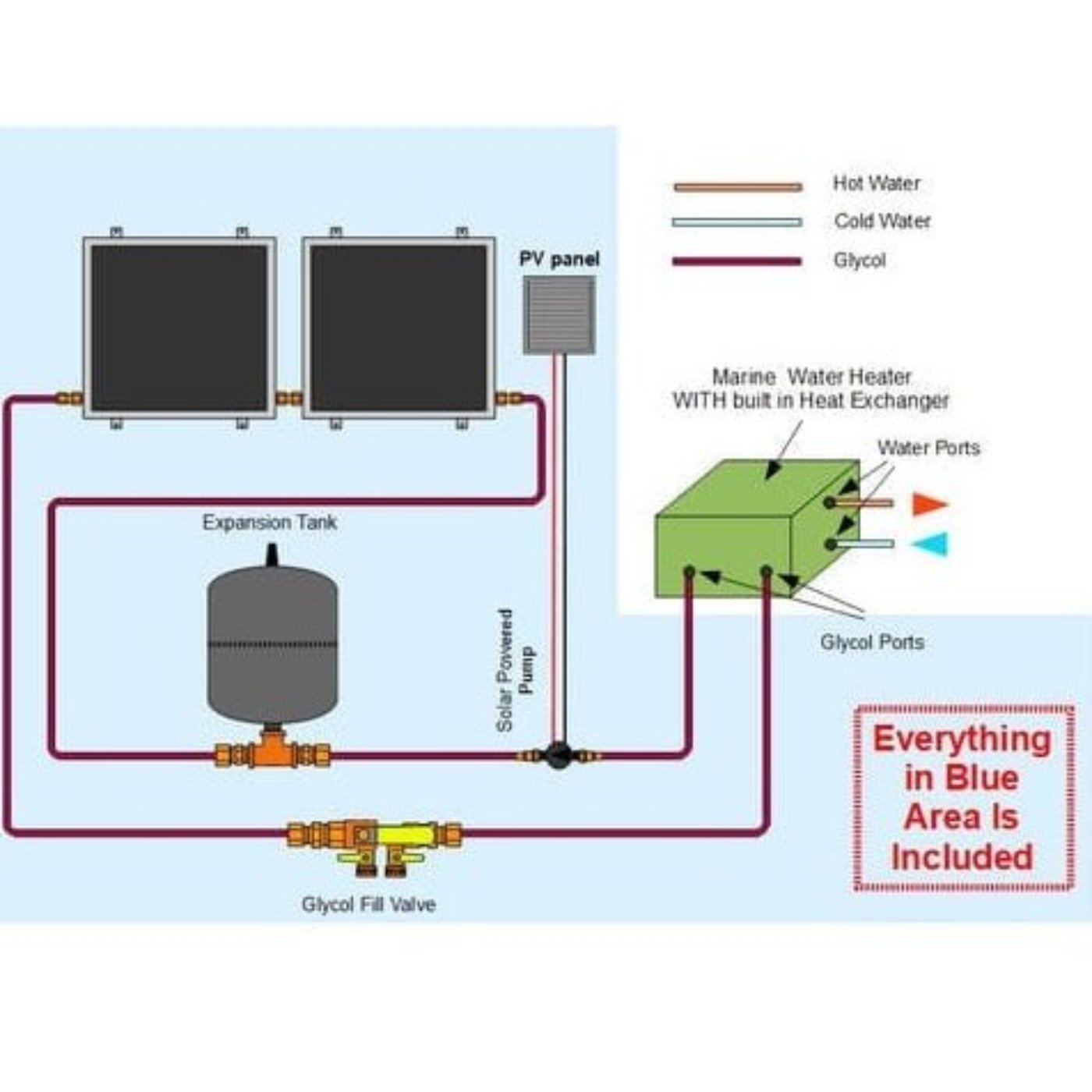

If your boat water heater has a built-in heat exchanger this kit is for you. It contains everything you need to add a high quality freeze protected solar water heater to your boat. It simply connects to the heat exchanger that is already in your water heater. The antifreeze in the solar loop is heated by Heliatosย MH-38 solar water heating panels. This panel is robust enough to be mounted on a vehicle at highway speeds, has unbreakable twinwall polycarbonate glazing, and a strong aluminum frame, yet only weighs 12 lbs.
The MH-38ย panels include special features to prevent corrosion even in the harshest marine environments:
- Powder-coated frame and backing, gives the appearance of white enamel
- Zinc-phosphate internal corrosion protection
- Sealed construction
- Stainless steel hardware
These panels have unbreakable twinwall polycarbonate glazing, and a strong aluminum frame, yet only weighs 12 lbs.
Specifications
SW-38 Solar Panel
Materials
- Glazing:ย UV resistant twin wall polycarbonate
- Frame:ย Architectural grade aluminum alloy 6063
- Insulation:ย Polyiso foam (meets requirements for ASTM-C1289, Type 1
- specification)
- Water Conduit:ย Copper Tubing (Alloy C12200 certified for public water supplies
- meeting EPA Lead and Copper Rule 56 FR26460, June 7th, 1991)
- Fittings:ย Brass, Lead Free compliant with Federal Reduction of Lead in
- Drinking Water Act , Dezincification resistant
- Seals:ย Butyl Rubber
Physical
- Length:ย 24.0 Inches
- Width:ย 25.25 Inches
- Height:ย 2.125 Inches
- Active Collector Area:ย 3.674 ft2
- Mounting Hole Spacing:ย 24.75 x 17.00 Inches x Inches
- Volume of Liquid in Collector:ย 7.7 fl. oz.
- Total Panel Weight:ย 11.6 lb.
- Input and Output Connections:ย 3/8 โ Compression Fitting
Maximum Ratings
- Pressure:ย 150 Psi
- Collector Temperature:ย 203 ยบF
- Mounting Surface Unevenness:ย ยผ Inch (corner to corner)

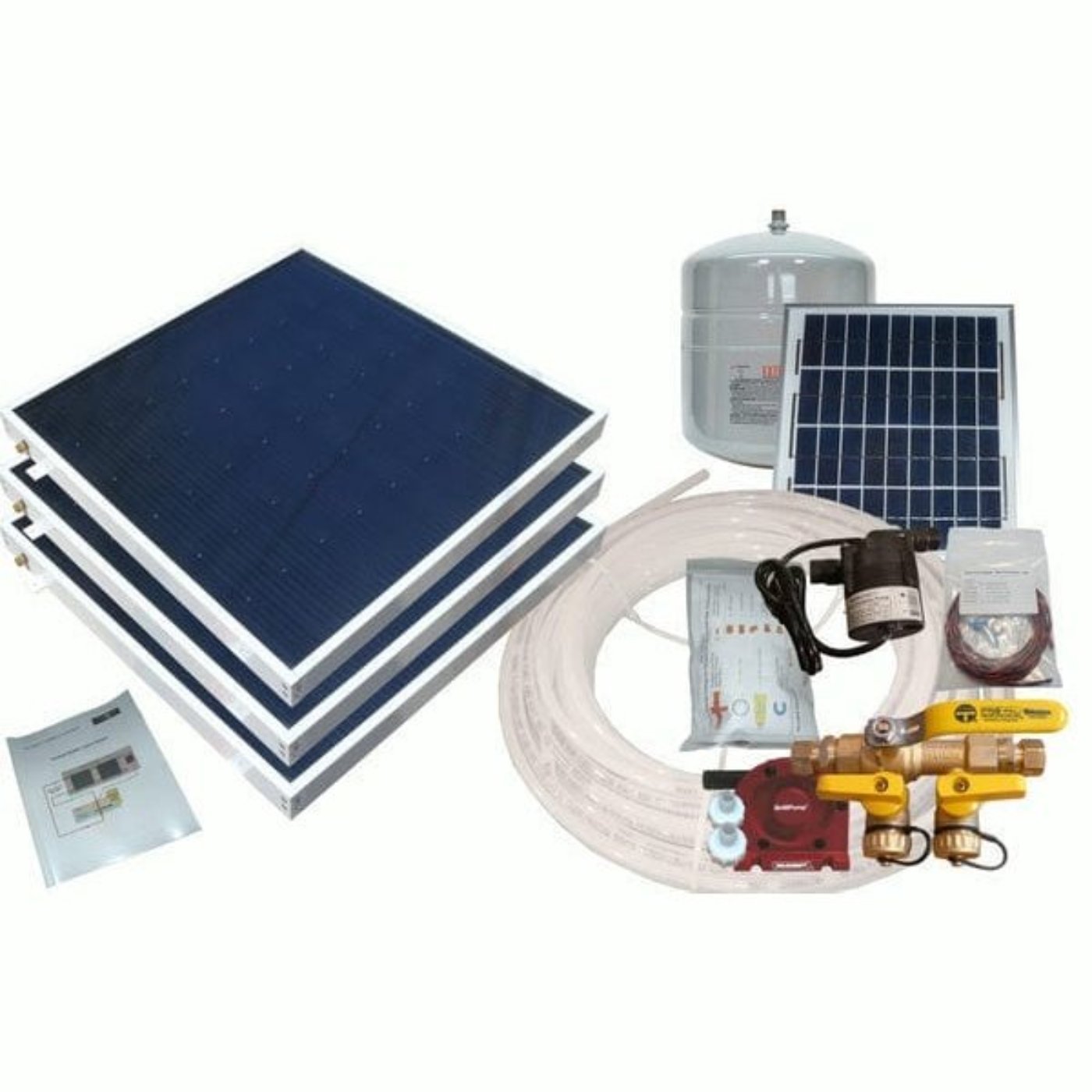

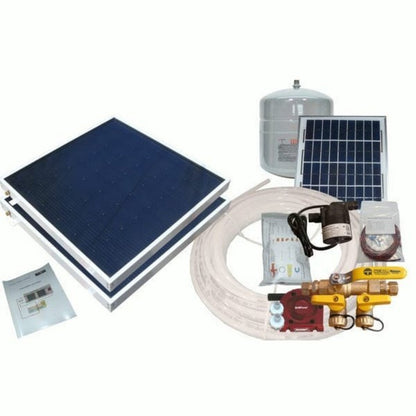

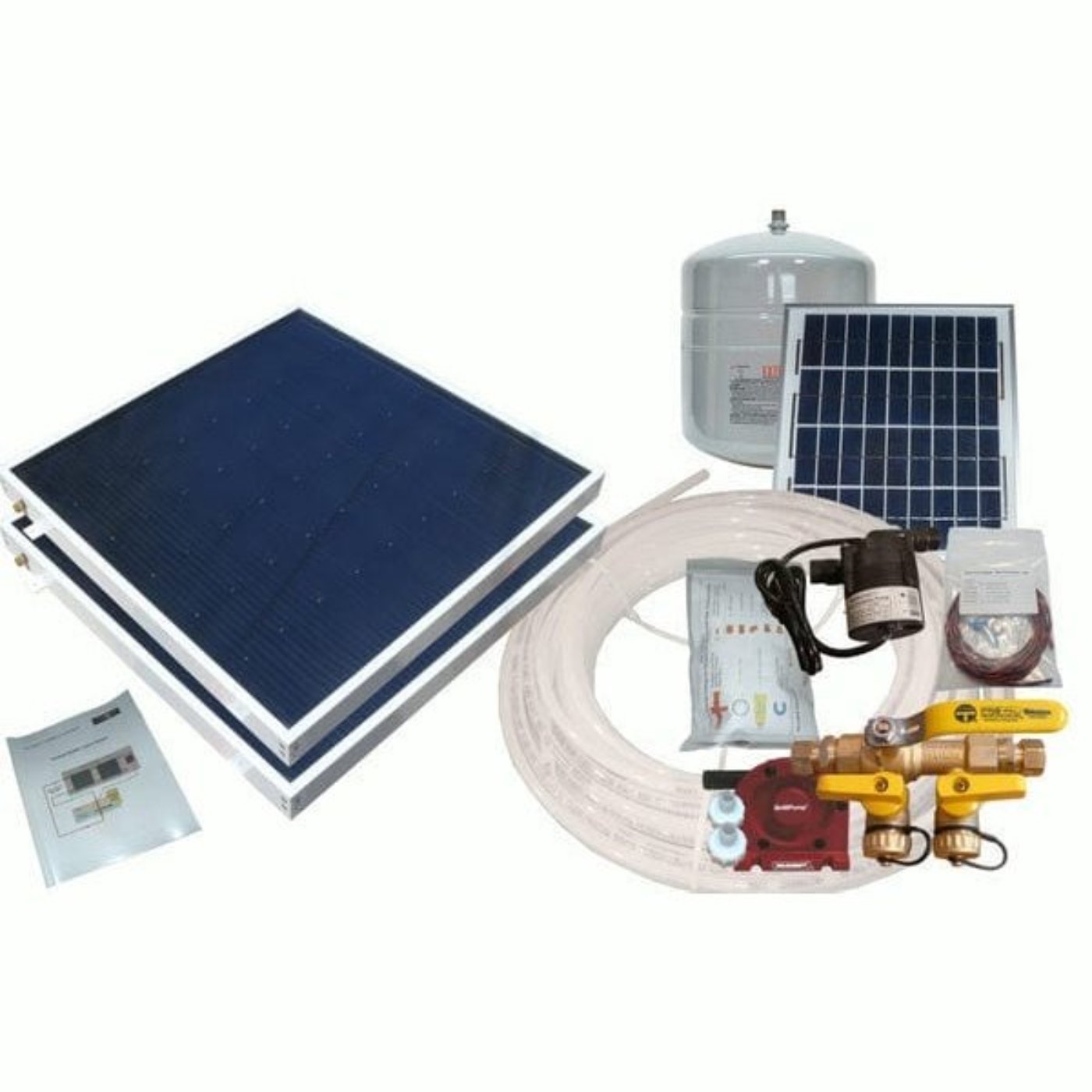

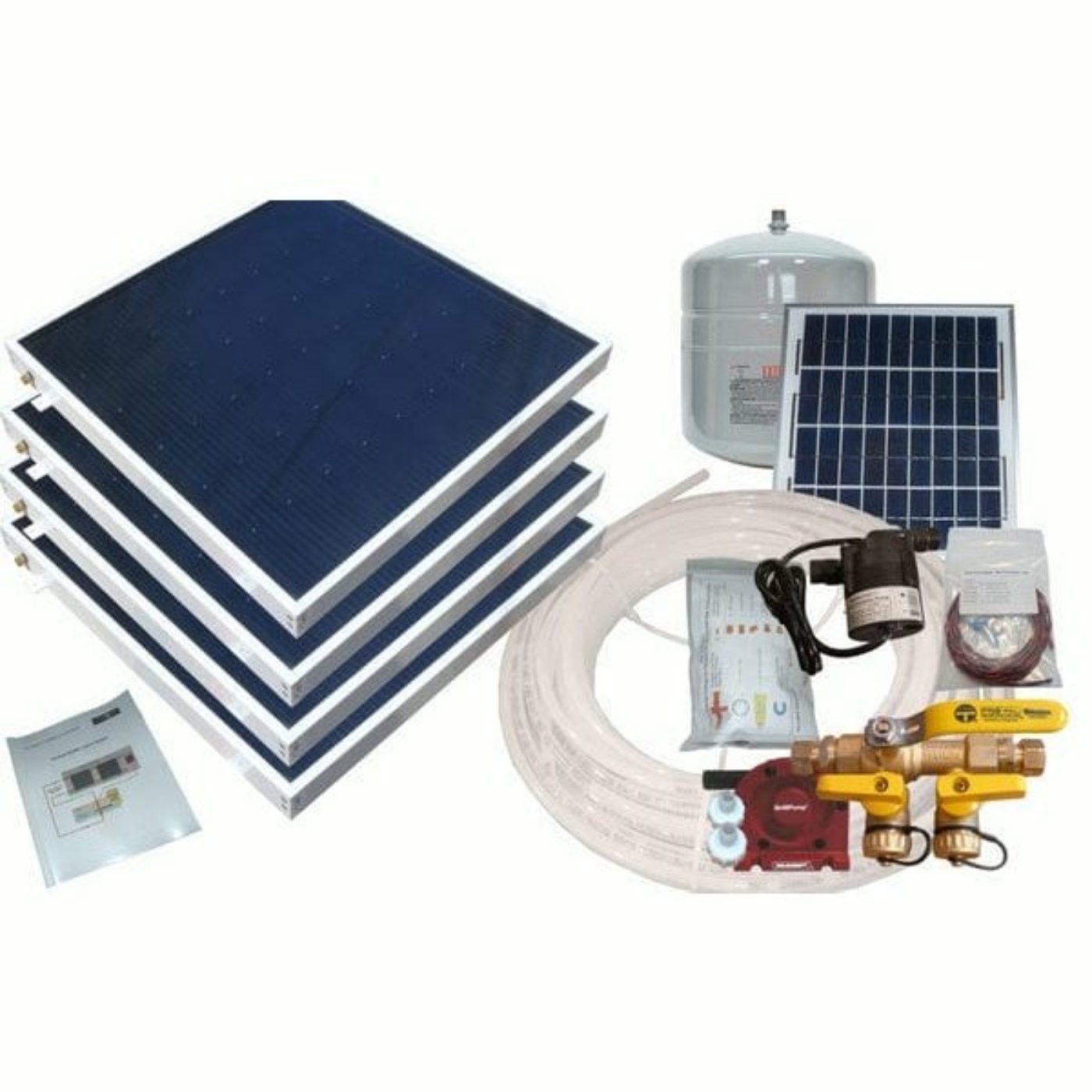

Each Kit Comes With:
- Your selected quantityย Heliatos MH-38ย Solar Water Heating Panelย

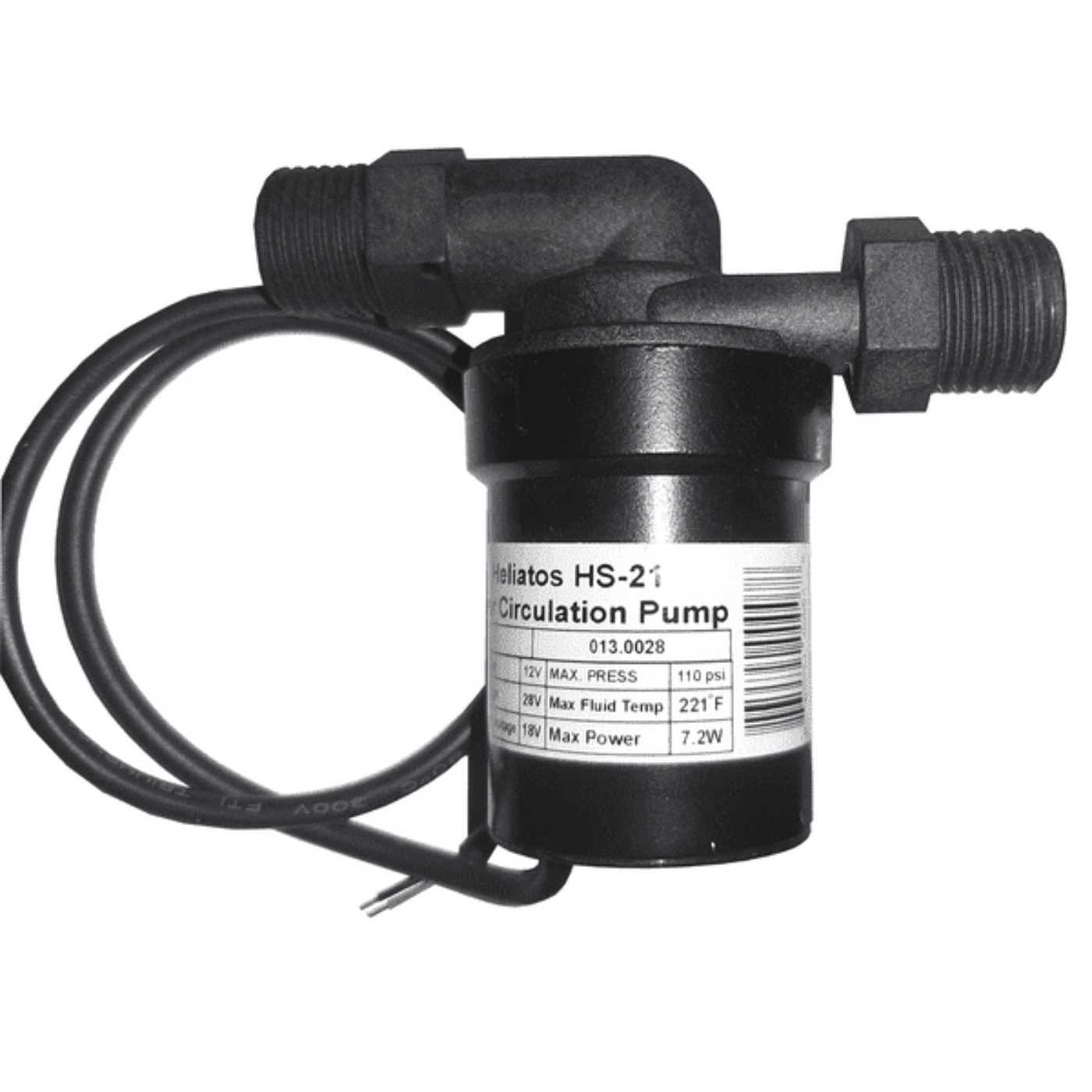

- 1ย Heliatos HS-21ย solar circulation pumpย

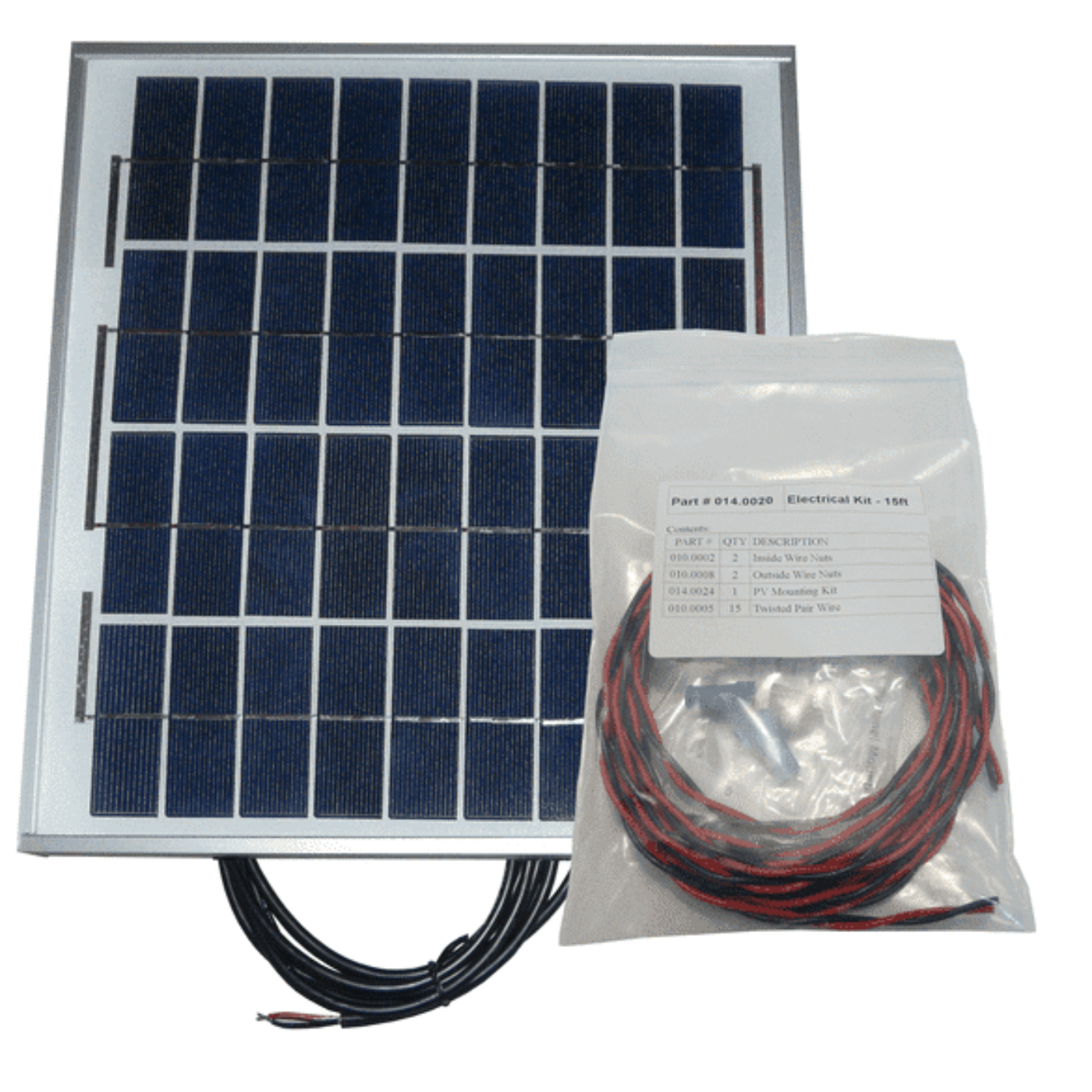

- 1 10Watt PV Solar panel to power the pumpย
- Wire and PV panel mounting tabsย

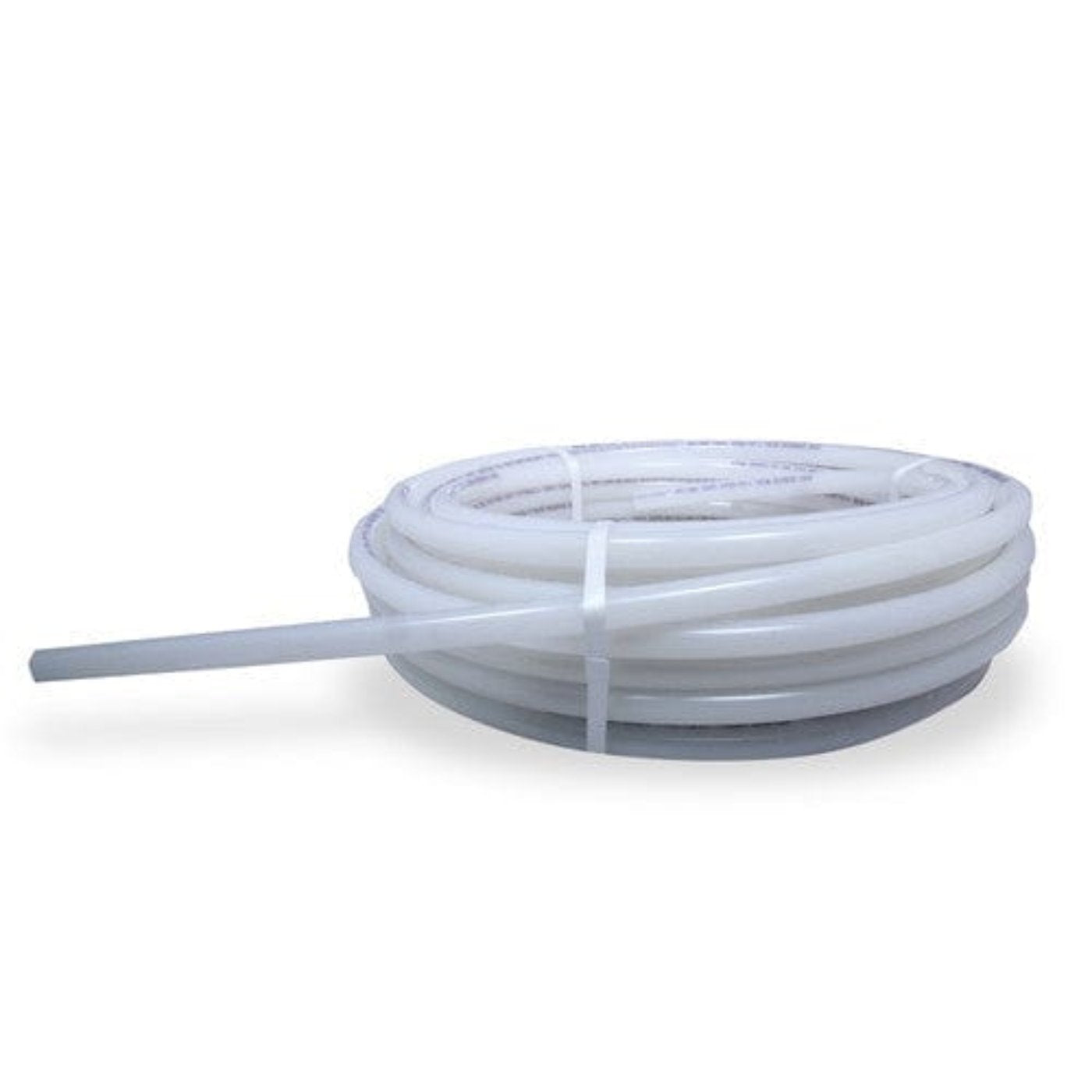

- 25 ft of 1/4' PEX tubing
- Amtrol #15 Expansion Tank

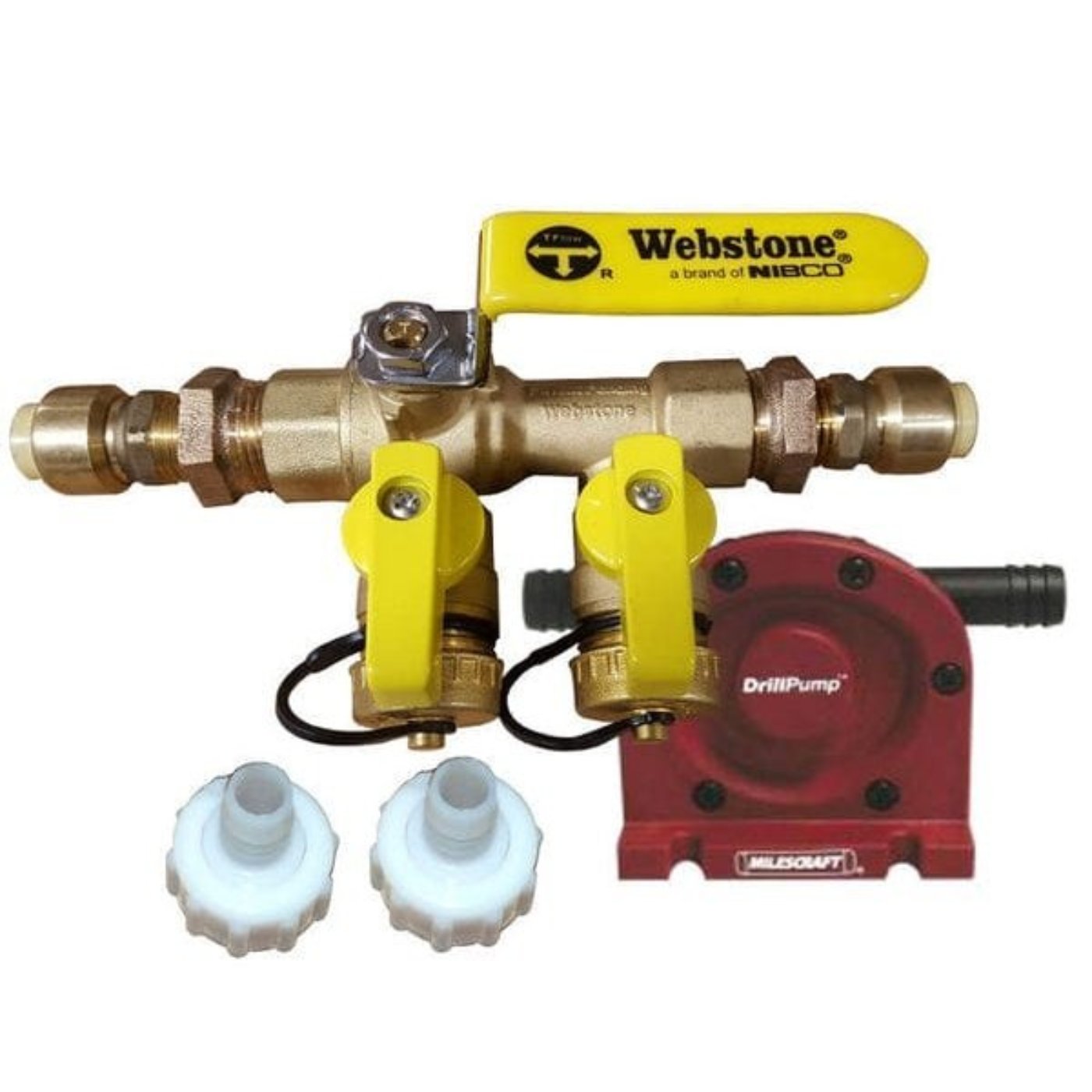

- RV/Marine Glycol Fill and Purge Valve with Drill Pump and Instructions
- 1 Complete Set of Fittings and Adapters
- Assumes RV water heater with 1/2' NPT connections (most common)
- Contact us for non-standard Water Heaters or Connections
- Clear and easy to followย installation instructions
In the Box
- Fasteners to attach the panels
- Insulation for the tubing
- Your existingย Marine water heater
- Tools needed for installation
Manual
What Our Experts Think
-
Freeze Protection: The built-in freeze protection ensures your system continues to function in colder climates, preventing damage and ensuring reliable hot water year-round.
-
Efficient Heat Exchanger: The built-in heat exchanger maximizes the efficiency of the system, transferring heat effectively from the solar panels to the water, providing quick and consistent hot water.
-
Durable & Marine-Ready: Made from high-quality, corrosion-resistant materials, this kit is designed to withstand harsh marine environments and deliver long-term performance.
-
Space-Saving Design: Its compact, boat-friendly design makes it an ideal solution for those with limited space on their vessel without compromising on performance.
-
Eco-Friendly & Cost-Effective: Harnessing solar power, this system reduces reliance on fuel or electricity, providing an environmentally-friendly and cost-efficient solution for hot water.
-
Easy Installation: The kit is designed for easy installation and compatibility with most boat systems, making it accessible for a range of boat owners.
Q&A
Q: What is the Heliatos Boat Freeze Protected Solar Water Heater Kit with Built-In Heat Exchanger?
A: The Heliatos Boat Freeze Protected Solar Water Heater Kit is a highly efficient, eco-friendly water heating system designed for boats. It uses solar energy to heat water and features a built-in heat exchanger for optimal heat transfer, while also providing freeze protection for reliable performance in cold conditions.
Q: How does the built-in heat exchanger work?
A: The heat exchanger allows the solar-heated water to transfer heat to your boat's water system, ensuring that you get consistent hot water while preventing freezing in colder weather.
Q: Is the kit suitable for use in cold weather?
A: Yes, the freeze protection feature ensures that the system continues to function even in cold temperatures, making it perfect for year-round use.
Q: Can I install this kit on my boat?
A: Yes, the Heliatos Boat Solar Water Heater Kit is designed for easy installation on most boats, with all necessary components included.
Q: What are the benefits of using solar heating on my boat?
A: Solar water heating is environmentally friendly, energy-efficient, and reduces your reliance on gas or electricity, providing a sustainable solution for hot water on your boat.
Q: Is the Heliatos Boat Solar Water Heater Kit backed by a warranty?
A: Yes, it comes with a warranty to ensure durability and reliable performance.
