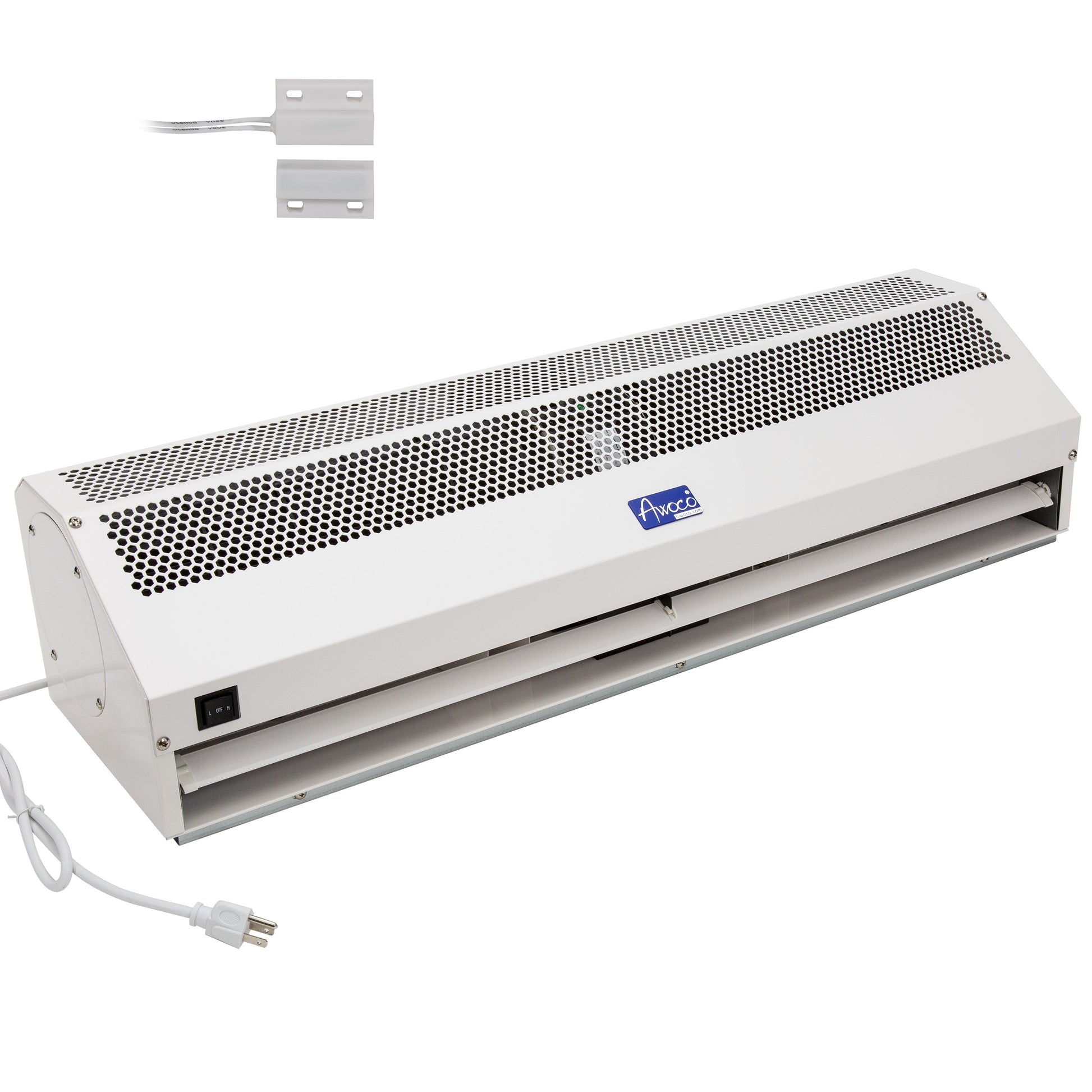

Awoco FM15-ETL Super Power 1 Speed Commercial Indoor Air Curtain, 120V Unheated, ETL Sanitation Listed - FM1509-ETL
-

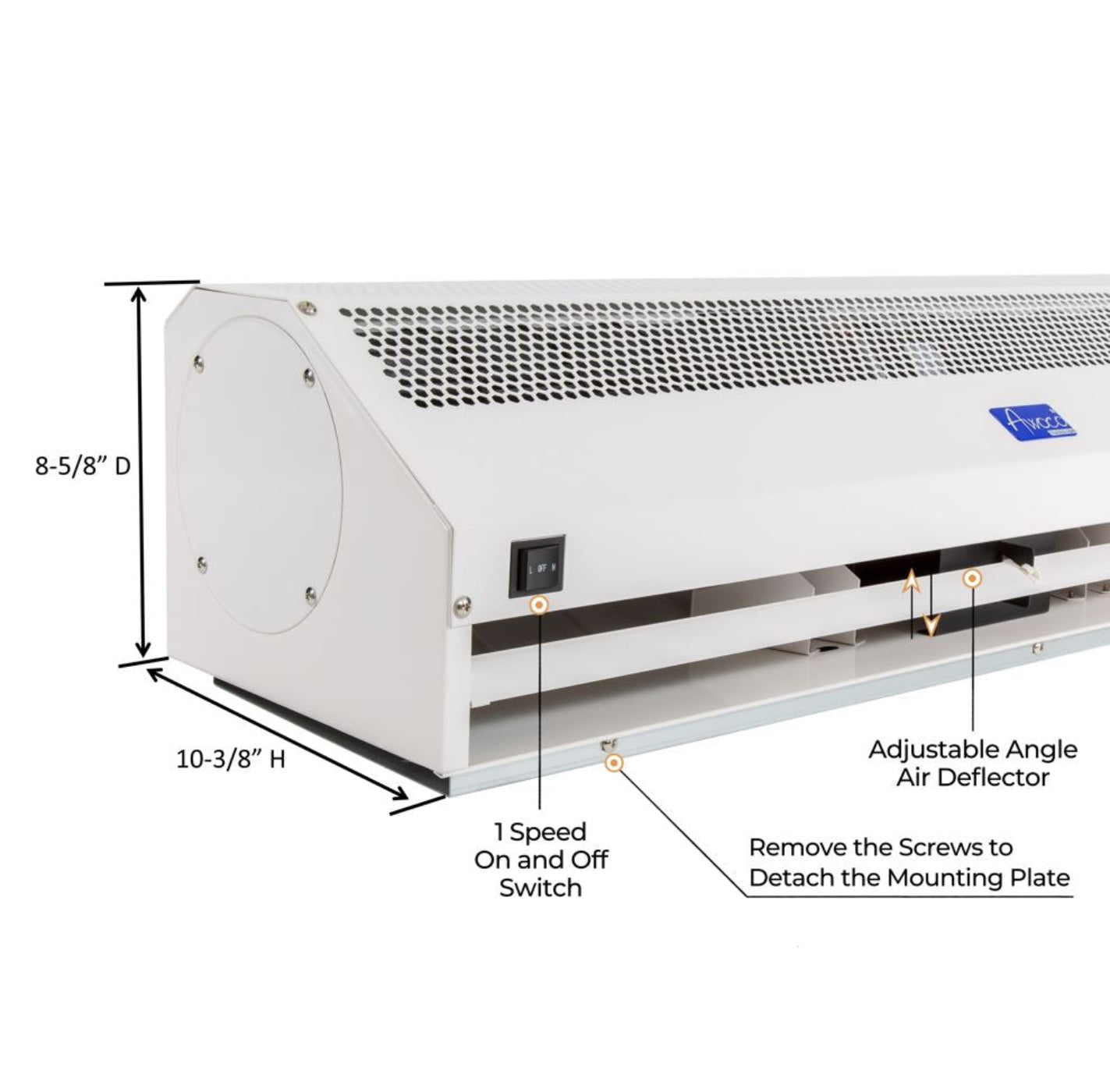

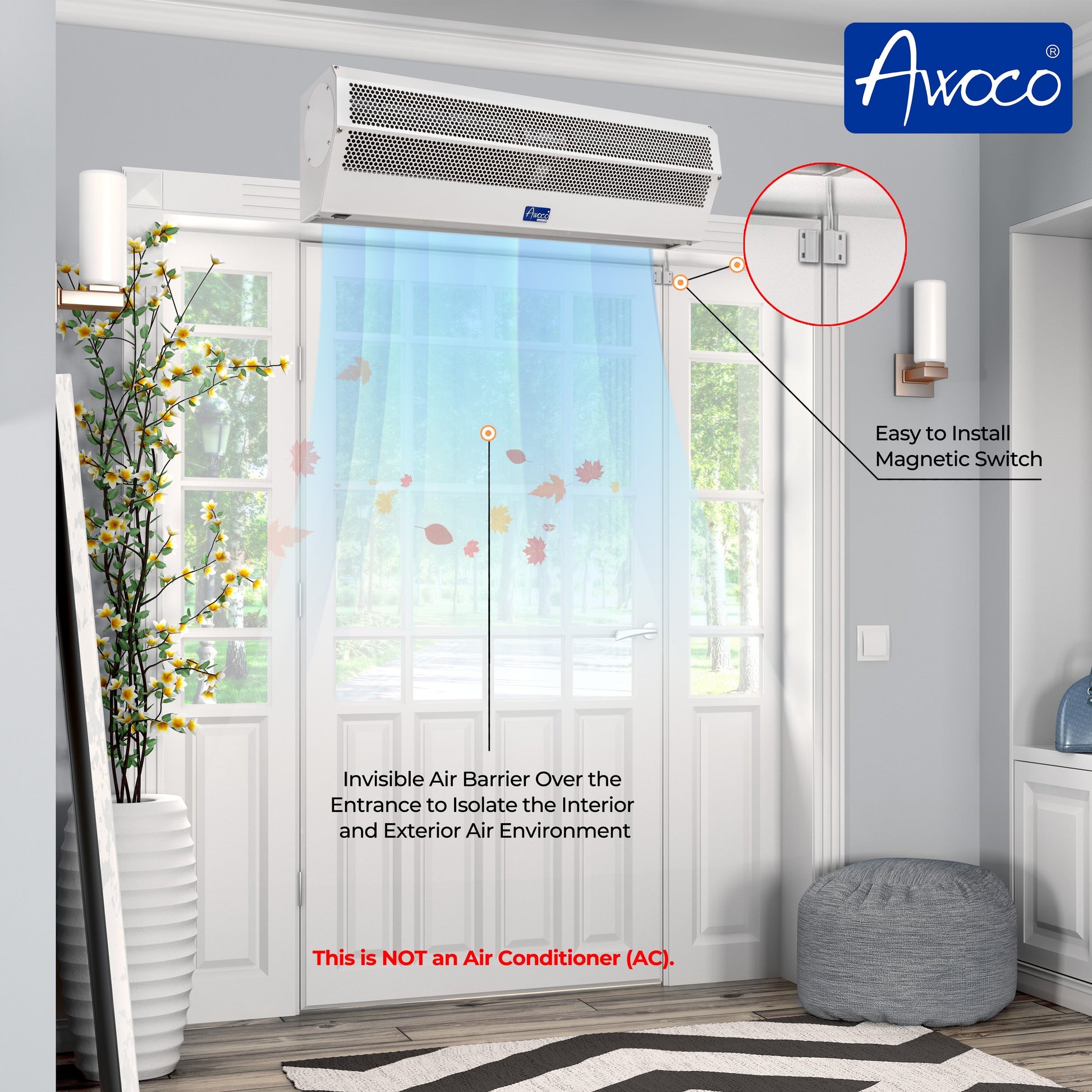

Isolate Interior from Exterior Air: THIS AIR CURTAIN IS NOT AN AIR CONDITIONER, IT WON’T GENERATE COLD AND HOT AIR. Save energy by keeping the conditioned air inside and blocking 90% of heat/cold air, dust, smoke, etc. You still need to turn on your air conditioner, air curtain is not to replace an air conditioner. Fireproof and anti-erosive powder coated metal case, easy to clean slim body.
-

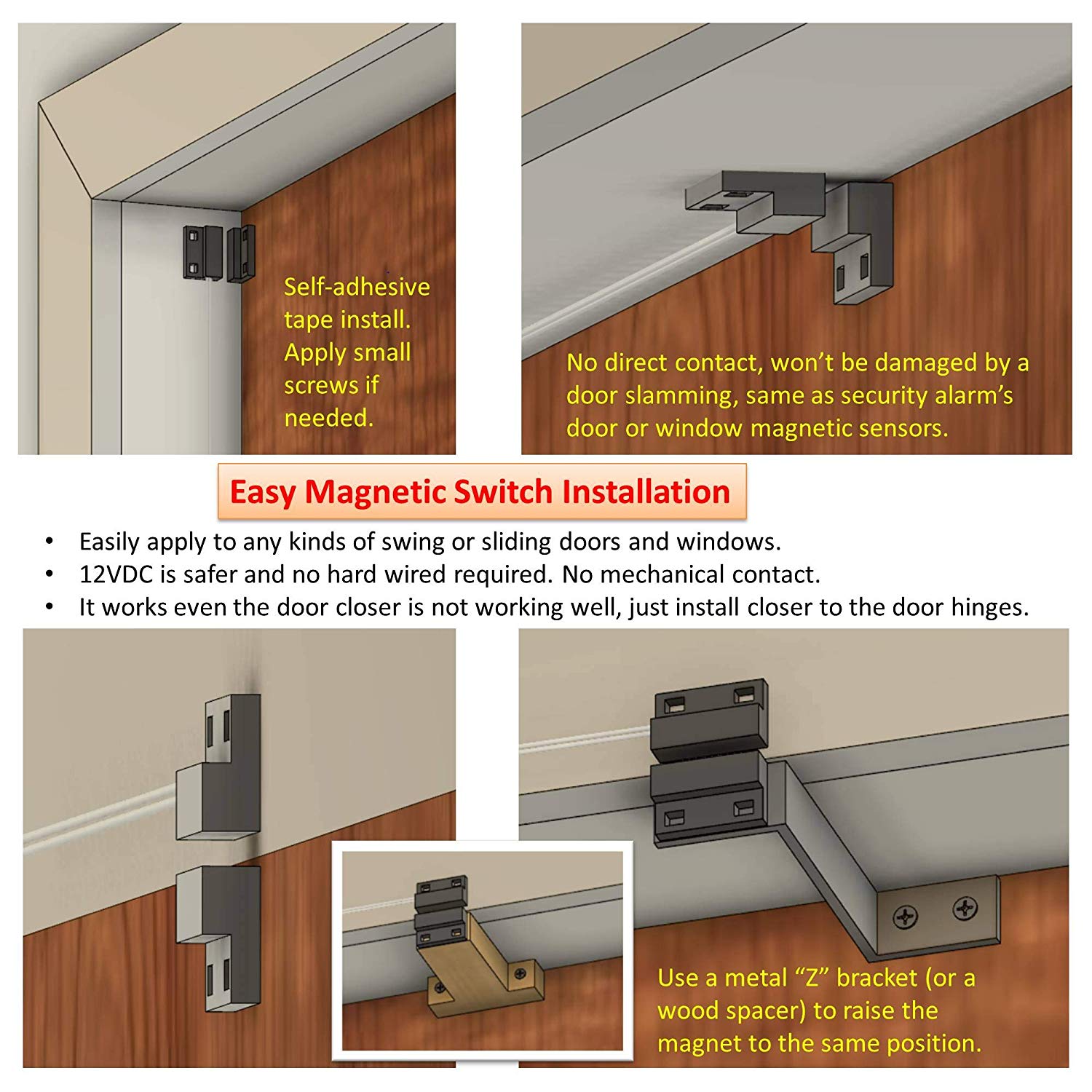

Magnetic Switch Controlled Circuit (US Patented): 2 pieces of magnets have no direct contact, won’t be damaged by a door slamming. The magnetic door switch installation is much easier than the traditional mechanical plunger switch. 12VDC is safer and no hard wire required. It works even if the door closer is not working well, just install at a closer distance while the door is closed.
-
ETL Sanitation confirms to NSF Standard 37: ETL Sanitation Listed, 1 speed confirms to NSF STD 37 for food service entranceway to meet Health Department Requirements. 120V 60Hz. Less power consumption than other industrial air curtains. Adopting the technology of German electrical machinery, it continuously runs for all business hours. 1 motor and 2 ABS Fan Wheels.
-

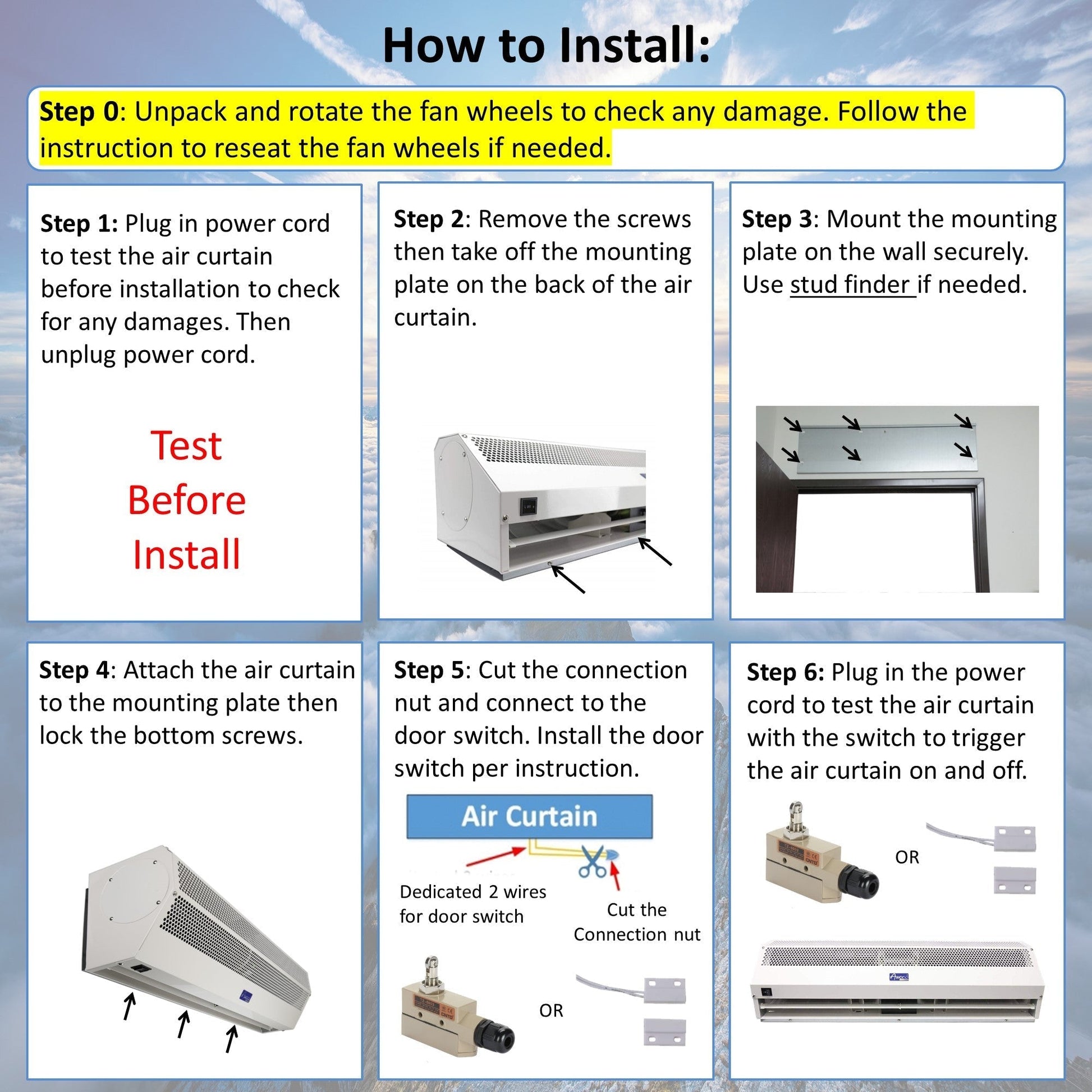

Easy Installation: Refer to Technical Specification User Manual, installation should be easy.
- 1) mount the detachable mounting plate securely.
- 2) hang the air curtain up.

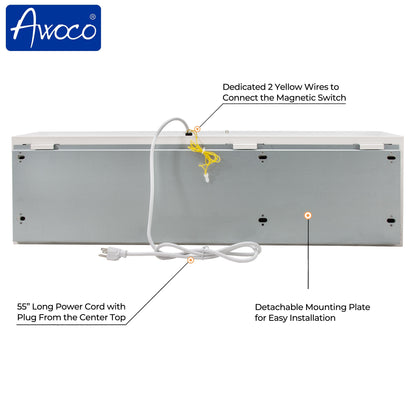

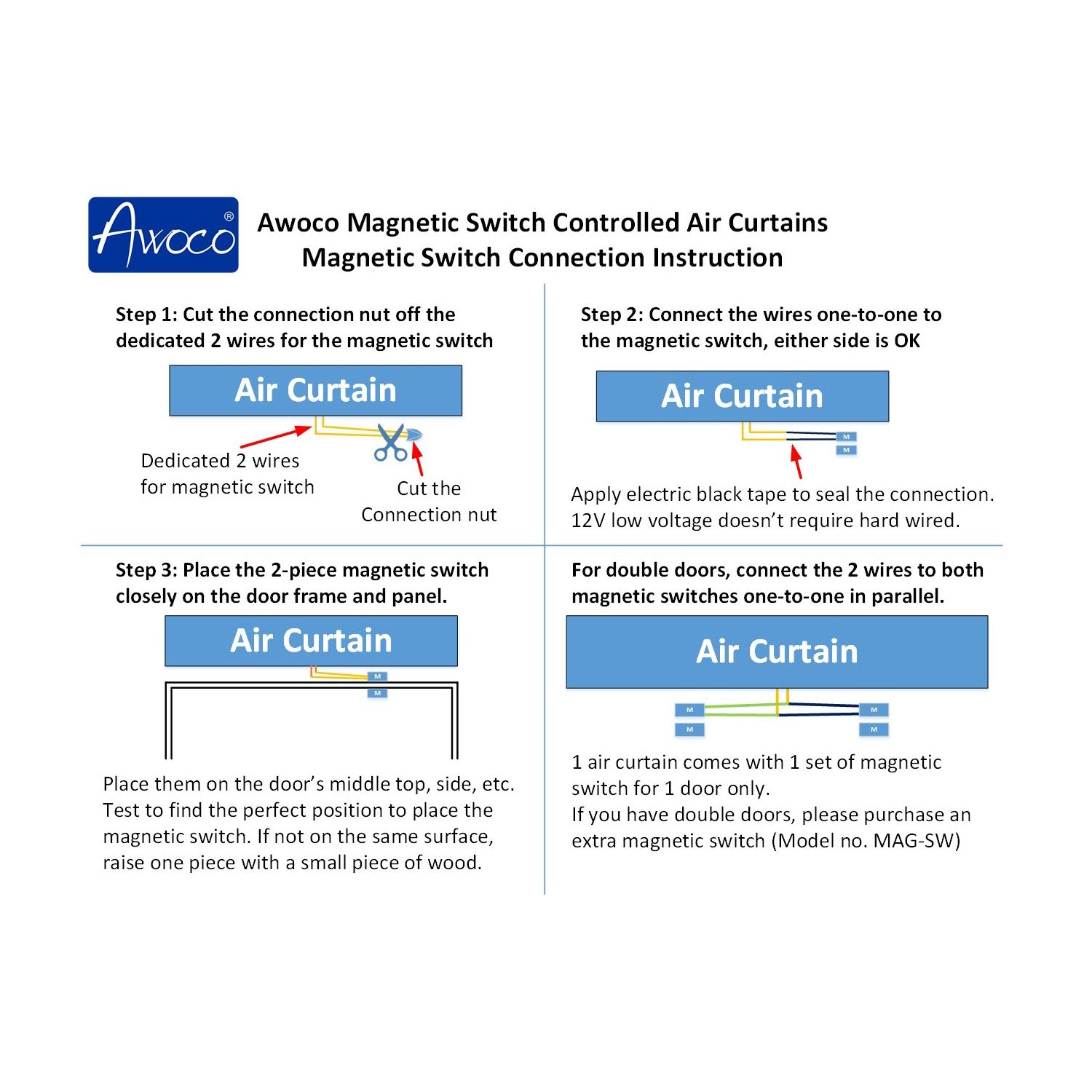

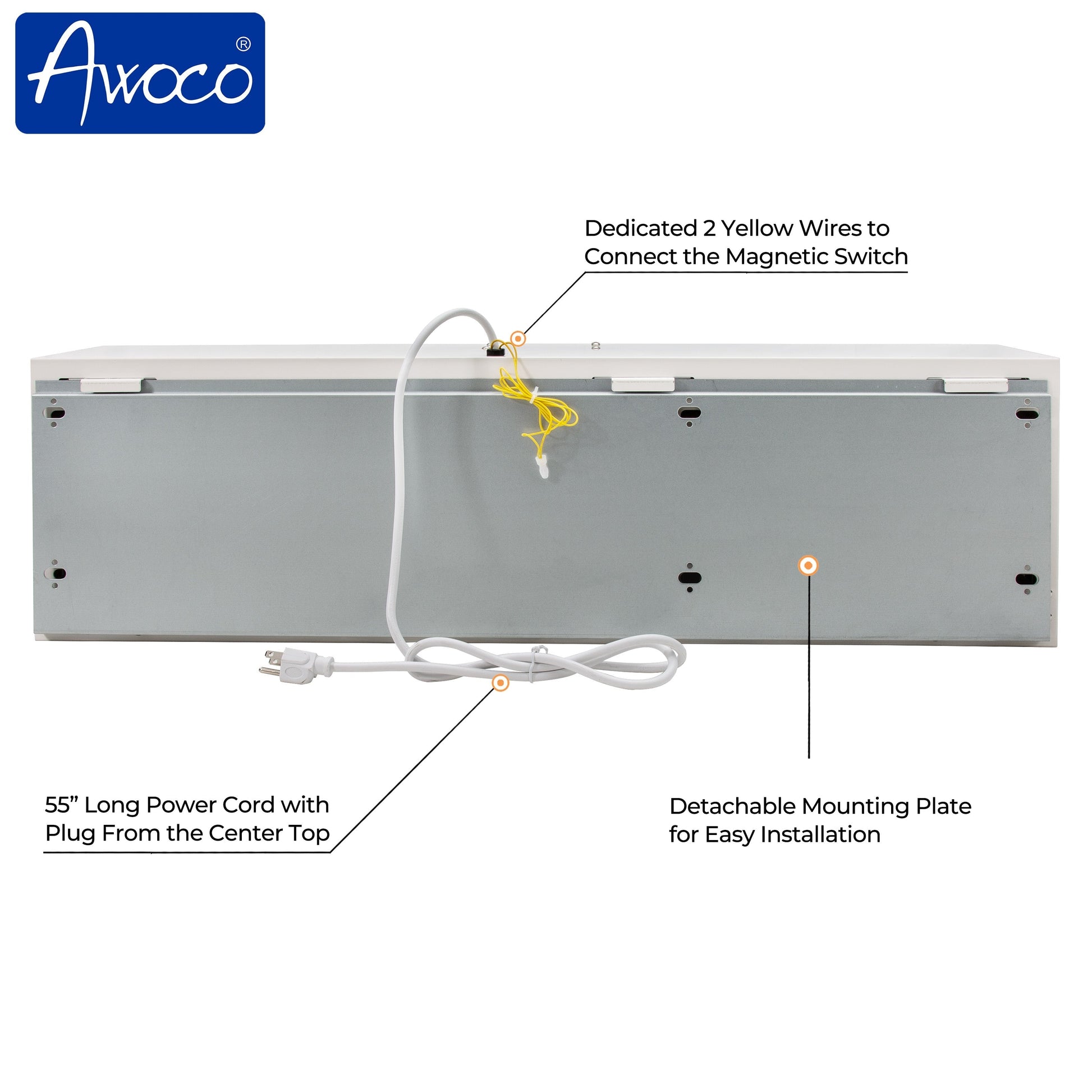

- 3) install the optional magnetic switch and connect to the dedicated 2 wires. With magnetic switch installed, automatically turn on the air curtain while the door is open.
Specifications
| Model No. |
For
Door Size |
Width |
Power
(W/HP) |
Net Weight
(LB) |
Current
(A) |
Max.
Air Volume
(CFM) |
Max.
Noise Level
(dB) |
| FM1509-ETL |
35-1/2" |
300/0.4 |
33.1 |
3.13 |
1177 |
58 |
| FM1510-ETL |
42" |
41-3/4" |
350/0.47 |
37.5 |
3.65 |
1354 |
58 |
| FM1512-ETL |
48" |
47-1/4" |
350/0.47 |
43 |
3.65 |
1648 |
59 |
| FM1515-ETL |
60" |
59" |
400/0.54 |
48.5 |
4.17 |
2119 |
60 |
What Our Experts Think
-
Strong 1-Speed Airflow: Creates an effective barrier against dust, insects, and contaminants, improving indoor air quality.
-
ETL & UL Certified: Meets rigorous safety, performance, and sanitation standards for reliable, safe operation.
-
120V Unheated: Ideal for environments requiring an air barrier without additional heat, perfect for commercial settings.
-
Easy to Use: Simple, one-speed operation for straightforward, hassle-free functionality.
-
ETL Sanitation Listed: Certified for use in food service and other sanitary environments, ensuring compliance with health standards.
Q&A
Q: What is the Awoco FM15-ETL Super Power Commercial Indoor Air Curtain?
A: A powerful, single-speed indoor air curtain designed for commercial use, UL certified, 120V unheated, and ETL sanitation listed for high-quality air management.
Q: What makes it special?
A: It provides powerful airflow to create a barrier against dust, insects, and contaminants, while being UL certified and ETL sanitation listed for reliability and safety.
Q: Is this air curtain heated?
A: No, the FM15-ETL is unheated, making it ideal for areas where heating is not needed.
Q: What certifications does it have?
A: It is UL certified and ETL sanitation listed, ensuring compliance with safety and sanitation standards.
Q: Where can it be installed?
A: Designed for commercial indoor environments like kitchens, entryways, and service counters where maintaining a clean and safe atmosphere is essential.
Maintenance Tips
-
Clean air intake and outlet regularly to prevent dust buildup.
-
Inspect the fan blades for debris and clean as needed for optimal airflow.
-
Check the electrical connections periodically to ensure safe operation.
-
Keep the unit free from obstructions to maintain efficient air circulation.
-
Ensure the unit is installed in a well-ventilated area for peak performance.
